ETI fuse disconnector EFD 10 1p with 2 fuses 16A to battery

Product detailed description

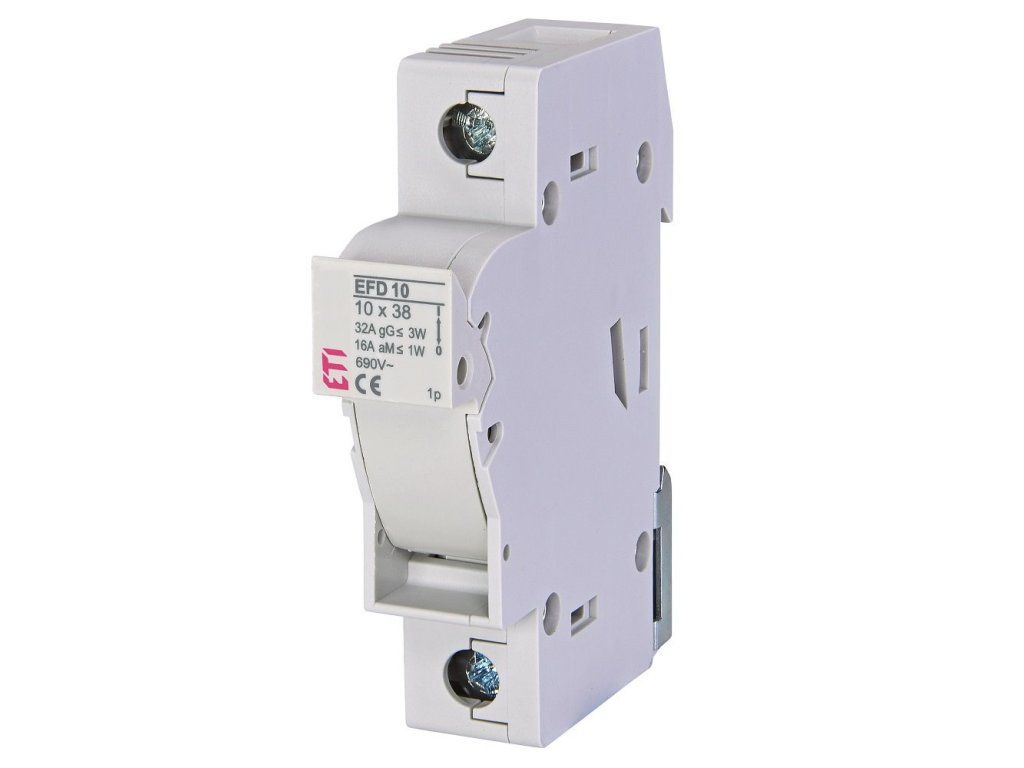

002540001 Fuse disconnector EFD 10 1p, ETI. The switch includes 2 ETI 16A/500VDC fuses - one fuse is already inserted in the switch.


Package contents:
1x ETI fuse disconnector EFD 10 1p
2x ETI fuse 16A/500VDC


Do not open the fuse box under load! Install on the plus cable.
When overcurrent occurs, the fuse inserted in the disconnector is blown. After removing the short circuit, insert a replacement fuse into the fuse holder and close the fuse holder.
The fuse base ensures that the fuse link is not in contact with the housing. A variety of fuse links can be mounted in the EFD 10 fuse holder. DIN rail mounting.


Advantages:
- More finger space to open the fuse holder
- Full IP20 touch protection
- All plastic parts are made of material resistant to extremely high temperatures. The fuse base ensures that the fuse link is not in contact with the housing.
- An electronic indicator version is available for both sizes. Designated L (LED), EFH has a built-in LED that flashes when the fuse base is activated. Operating voltage range from 50 V to 1000 V DC.
- Conforms to IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-18 and UL 486E
- Mounting on standard DIN 35 mm rail (DIN EN60715)
- All contact surfaces are silver plated
- Option of sealing in ON or OFF position
- Modular design - multi-pole variant possible


Parameters:
- Class name: fuse base
- Weight: 0,05 kg
- Level: C - fuse disconnectors and switch-disconnectors
- Connection: 1 - 25 mm2
- Mounting: 35 mm DIN rail
- Rated current (A): 32
- Rated DC voltage (V): 600
- Size: 10x38

Technical parameters of the fuse:
Rated current: 16A
Characteristic: gG
Rated DC voltage: 250V
Rated AC voltage: 500V
Dimensions: 10x38mm
