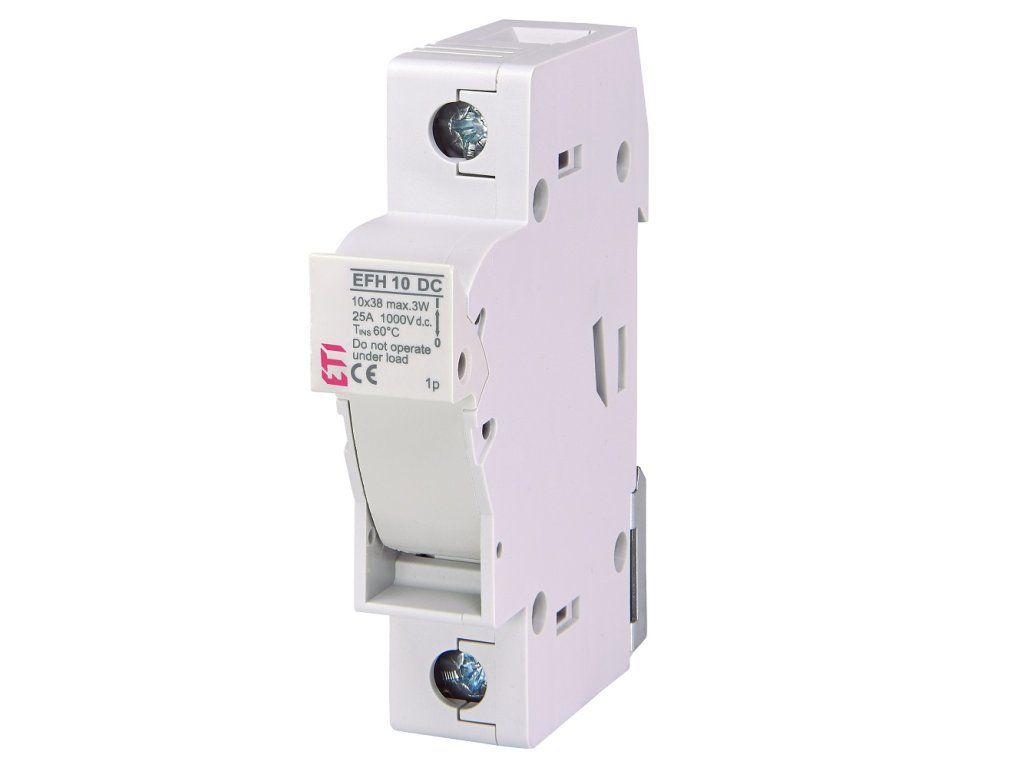

ETI fuse disconnector EFH 10 DC 1p with 6A fuse for photovoltaic panels

Product detailed description

002540201 Fuse box EFH 10 DC 1p, ETI. Part of the switch is a fuse ETI 6A/1000VDC - the fuse is inserted in the switch.


Package contents:
1x ETI fuse disconnector EFH 10 DC 1p
1x ETI 6A/1000VDC fuse


Do not open the fuse box under load! Install on the plus cable.
When overcurrent occurs, the fuse inserted in the disconnector is blown. After removing the short circuit, insert a replacement fuse into the fuse holder and close the fuse holder.
The fuse base ensures that the fuse link is not in contact with the housing. A wide range of fuse links can be mounted in the EFH 10/14 x 85 fuse holder. DIN rail mounting.


Advantages:
- More finger space to open the fuse holder
- Full IP20 touch protection
- All plastic parts are made of material resistant to extremely high temperatures. The fuse base ensures that the fuse link is not in contact with the housing.
- An electronic indicator version is available for both sizes. Designated L (LED), EFH has a built-in LED that flashes when the fuse base is activated. Operating voltage range from 50 V to 1000 V DC.
- Conforms to IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-18 and UL 486E
- Mounting on standard DIN 35 mm rail (DIN EN60715)
- All contact surfaces are silver plated
- Option of sealing in ON or OFF position
- Modular design - multi-pole variant possible


Parameters:
- Class name: fuse base
- Weight: 0,05 kg
- Level: C - fuse disconnectors and switch-disconnectors
- Connection: 1 - 25 mm2
- Mounting: 35 mm DIN rail
- Product group: lv-insurance base
- Rated current (A): 25
- Rated DC voltage (V): 1000
- Size: 10x38
- Type: EFH 10 DC 1p
- Class of use: DC 20B
