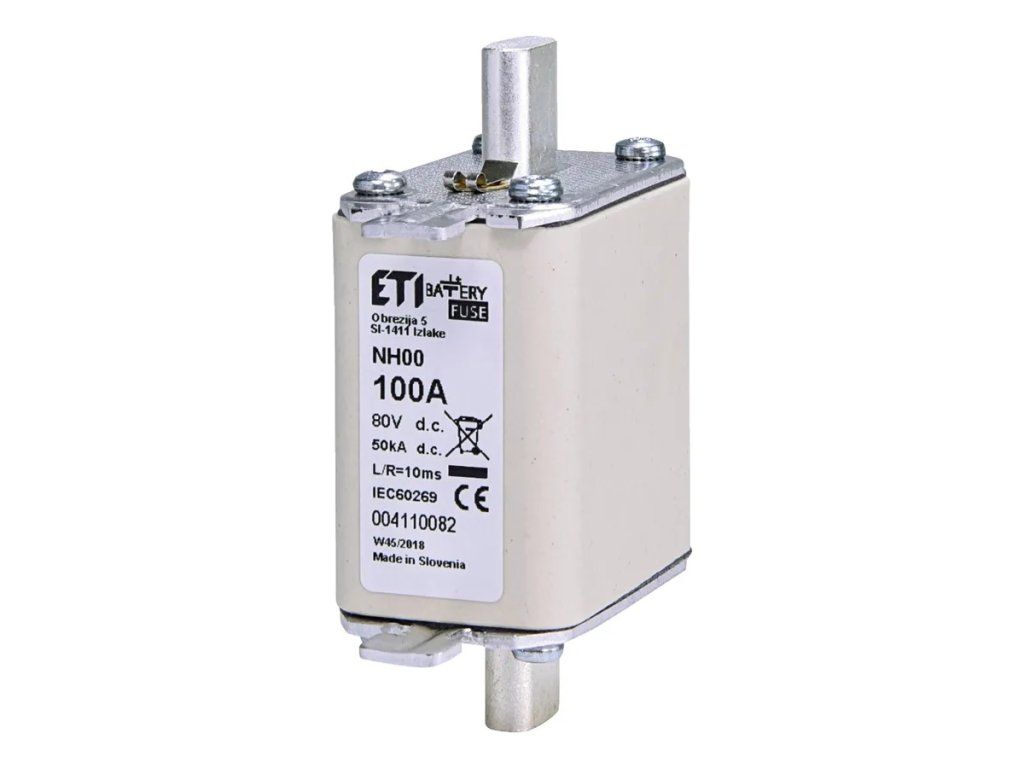

ETI knife fuse DC M00 gBat 100A 80V DC

Code: ABCT_A500008317

naparovana cena na magic

€16,81 / pcs €20,68 incl. VAT

Skladom u dodávateľa (1 pcs)

Product detailed description

M00 bat, size NH 00, In = 100A, Icn = 50kA, UN = 80V DC for protection. Parameters: - Rated current (A): 100 - Type: NH - Size: NH00 - Characteristic: gBat - Rated DC voltage (V): 80 - Indicator: upper status indicator - DC breaking capacity (kA): 50 - Operating joule integral (A2s): 10.764 - L/R (ms): 3 - Melt -second joule integral (A2s): 9.360 - Application: battery protection - Power dissipation (W): 11.1 - Power dissipation (0.7xIn) (W): 5 - Standards: 60269

Additional parameters

Category:	ABC Tech
Weight:	0.2 kg
EAN:	3838895758440
