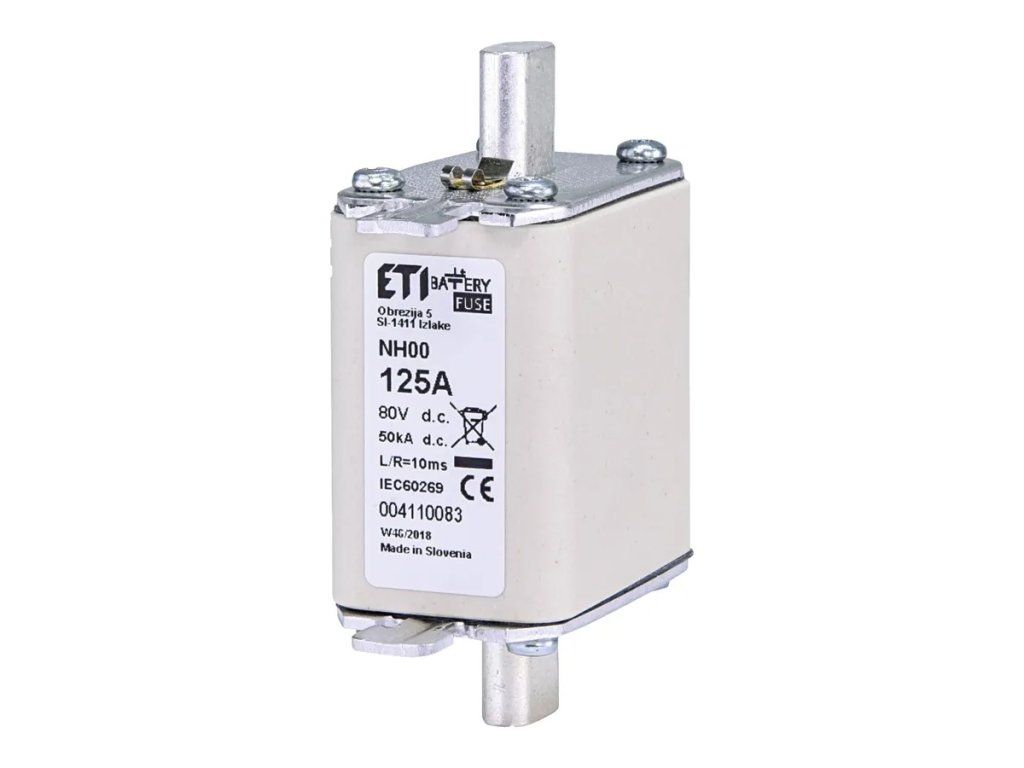

ETI knife fuse DC M00 gBat 125A 80V DC

Code: ABCT_A500008318

naparovana cena na magic

€16,81 / pcs €20,68 incl. VAT

Skladom u dodávateľa (9 pcs)

Product detailed description

M00 bat, size NH 00, In = 125A, Icn = 50kA, UN = 80V DC for protection. Parameters: - Rated current (A): 125 - Type: NH - Size: NH00 - Characteristic: gBat - Rated DC voltage (V): 80 - Indicator: upper status indicator - DC breaking capacity (kA): 50 - Operating joule integral (A2s): 16.963 - L/R (ms): 3 - Melt -second joule integral (A2s): 14.750 - Application: battery protection - Power dissipation (W): 13.4 - Power dissipation (0.7xIn) (W): 6 - Standards: 60269

Additional parameters

Category:	ABC Tech
Weight:	0.2 kg
EAN:	3838895758457
EAN:	3838895758457
