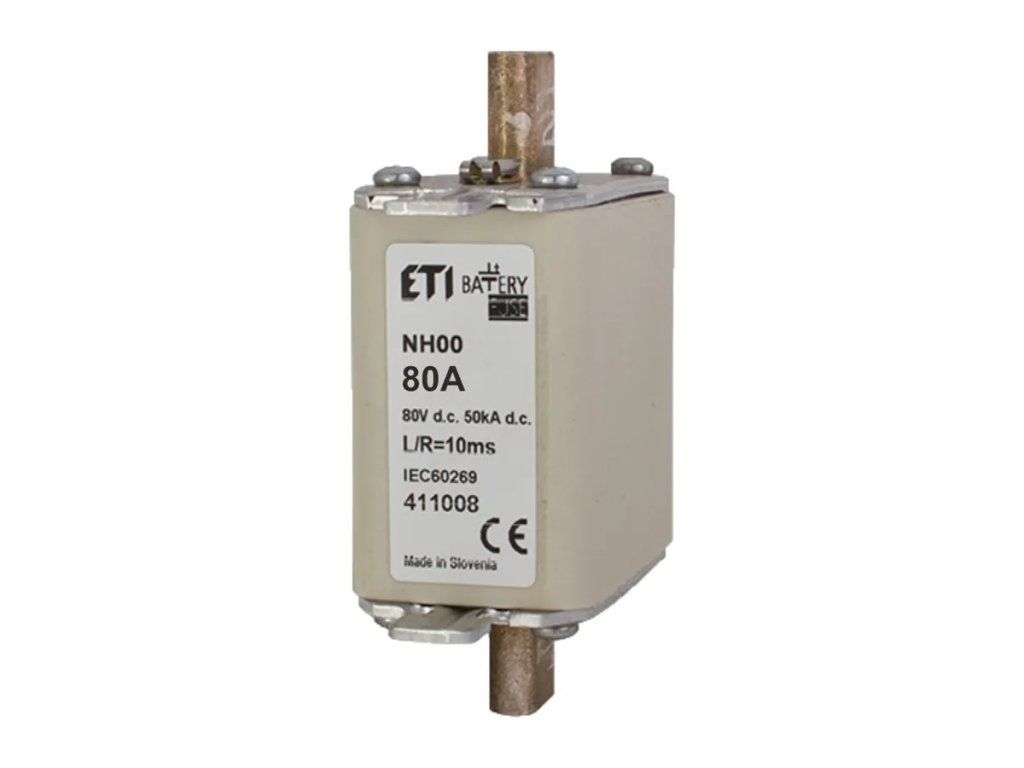

ETI knife fuse DC M00 gBat 80A 80V DC
Code: ABCT_A500008316Product detailed description
M00 bat, size NH 00, In = 80A, Icn = 50kA, UN = 80V DC for battery protection. Parameters: - Rated current (A): 80 - Type: NH - Size: NH00 - Characteristic: gBat - Rated DC Voltage (V): 80 - Indicator: upper fuse status indicator - DC breaking capacity (kA): 50 - Operating joule integral (A2s): 5.371 - L/R (ms): 3 - Melt ampere-second joule integral (A2s): 4.670 - Application: battery protection - Power dissipation (W): 10.4 - Power dissipation (0.7xIn) (W): 4.7 - Standards: IEC 60269Additional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 0.2 kg |
| EAN: | 3838895758433 |
| EAN: | 3838895758433 |
