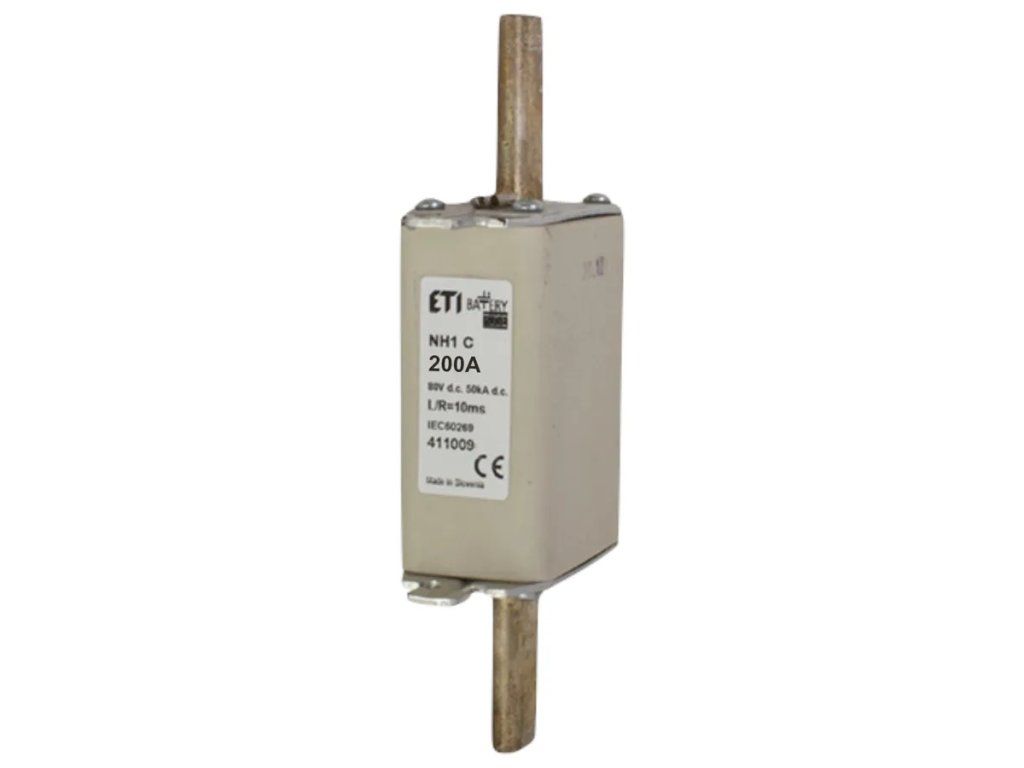

ETI knife fuse DC M1 gBat 200A 80V DC
Code: ABCT_A500008320Product detailed description
Foot fuse M1 bat, size NH 1, In = 200A, Icn = 50kA, UN = 80V DC, for battery protection. Parameters: - Rated current (A): 200 - Type: NH - Size: NH1 - Characteristic: gBat - Rated DC voltage (V): 80 - Indicator: upper fuse status indicator - DC breaking capacity (kA): 50 - Operating joule integral (A2s): 48.289 - L/R (ms): 3 - Melt ampere-second joule integral (A2s): 41.990 - Application: battery protection - Power dissipation (W): 26.6 - Power dissipation (0.7xIn) (W): 11.9 - Standards: IEC 60269Additional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 0.36 kg |
| EAN: | 3838895758570 |
| EAN: | 3838895758570 |
