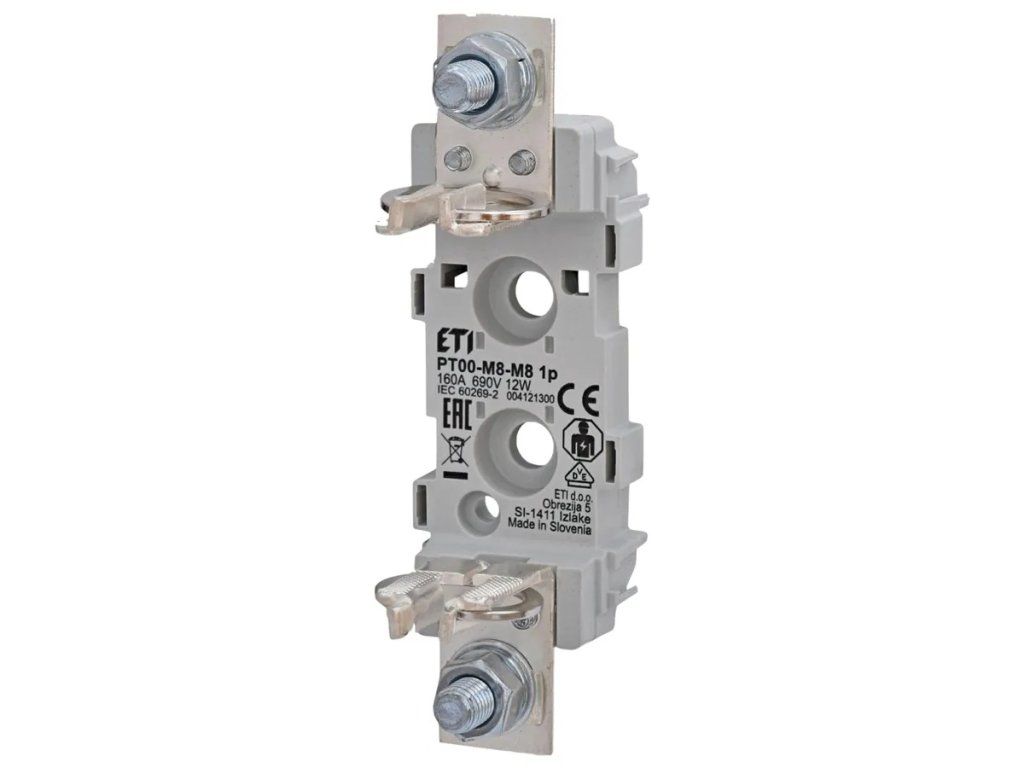

ETI Plastic fuse base PT-00 1 pole

Product detailed description

Plastic fuse base PT 00 M8-M8 S, 1 pole, In = 160A, Un = 690V, for fuses HN00 (000), panel / DIN rail mounting. Parameters: - Size: NH00 - Number of poles: 1 - Rated current (A): 160 - Rated AC voltage (V): 690 - AC breaking capacity (kA): 120 - Rated frequency (Hz): 40-60 - Overvoltage class: III - Mounting: screws - Standards: IEC 60269-2 - Ambient temperature (°C): -25 to 55 °C - Negotiated free-air thermal current with fuse links (A): 160A - Negotiated thermal current in free air with fixed insert (A): 200A - Max. allowable power loss per fuse link (W): 12 - Rated operating mode: continuous - Pollution degree: 3
