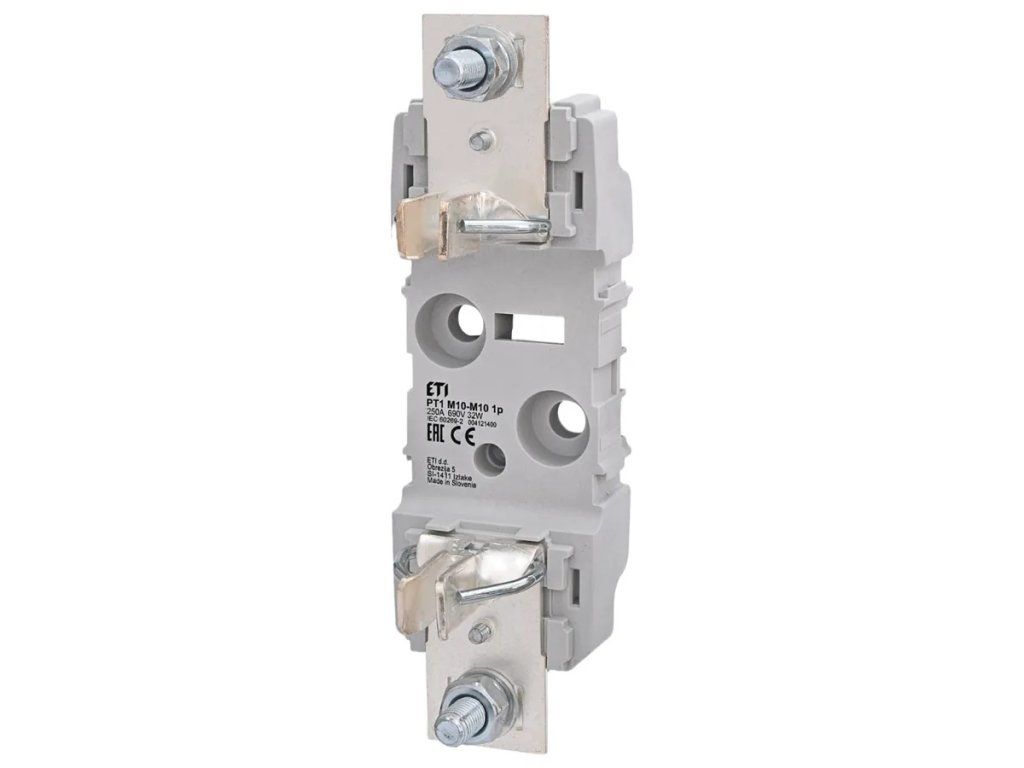

ETI Plastic fuse holder PT-1 1 pole

Product detailed description

Plastic fuse base PT 1 M10-M10 S, 1 pole, In = 250A, Un = 690V, for HN1 fuses, panel / DIN rail mounting. Parameters: - Size: NH1 - Number of poles: 1 - Rated current (A): 250 - Rated AC voltage (V): 690 - AC breaking capacity (kA): 120 - Rated frequency (Hz): 40-60 - Overvoltage class: III - Mounting: screw - Standards: IEC 60269-2 - Ambient temperature (°C): -25 to 55 °C - Negotiated free-air thermal current with fuse links (A): 250A - Negotiated thermal current in free air with fixed insert (A): 320A - Max. allowable power loss per fuse link (W): 32 - Rated operating mode: continuous - Pollution degree: 3
