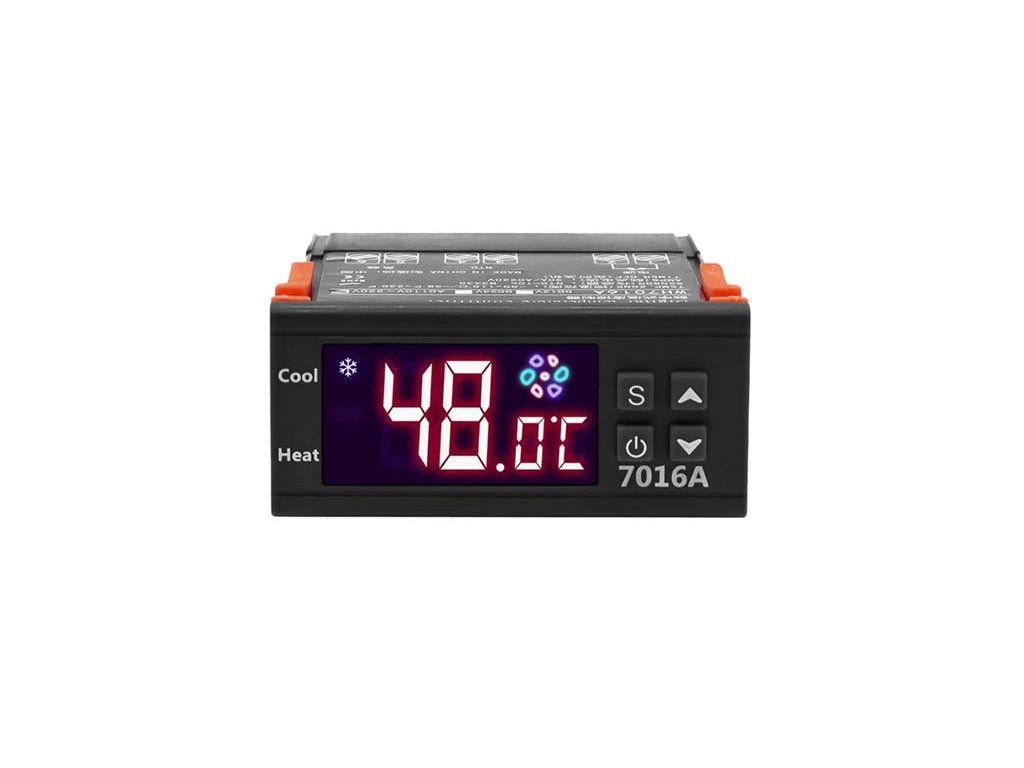

EUROKOMP thermostat WH7016A E6247

Product detailed description

The HW7016A thermostat is an advanced device that allows precise temperature monitoring and control from -50°C to 110°C. The large, clear LCD display and intuitive interface make operation simple and convenient.

The thermostat does not provide an output voltage - it closes the circuit! (works like a lamp switch)

Wide measuring range: -50 °C to 110 °C, with an accuracy of ±0.5 °C.
Heating and cooling function: ability to control both heating and cooling equipment.
High output power: supports loads up to 30A at 230V, allowing you to control equipment up to 5000W.
Easy setup: intuitive adjustment of target temperature and hysteresis.
Compact dimensions: approximately 85 x 75 x 34.5 mm, allowing easy integration into various systems.

Technical parameters:

Temperature measurement range: -50°C ~ 110°C
Measurement accuracy: ±0.5°C
Power: AC 230V
Maximum output load: 30A (up to 6600W)
Sensor: NTC (10K3435) with 1m cable
Operating temperature: 0 °C ~ 50 °C
Storage temperature: -10 °C ~ 60 °C
Housing material: ABS

Application:
The HW7016A thermostat is ideal for heating and cooling applications such as:
Incubators
Refrigerators
Aquariums
HVAC systems
Temperature control in industrial processes

Contents of the set:

1 x digital thermostat HW7016A
1 x NTC temperature sensor (10K3435) with 1m cable

Why choose the HW7016A thermostat?
With high measurement accuracy, a wide temperature range and the ability to control both heating and cooling, the 7016A thermostat provides a reliable solution for many applications requiring precise temperature control.

Remark:
The product is not a stand-alone functional unit, it requires professional installation.
