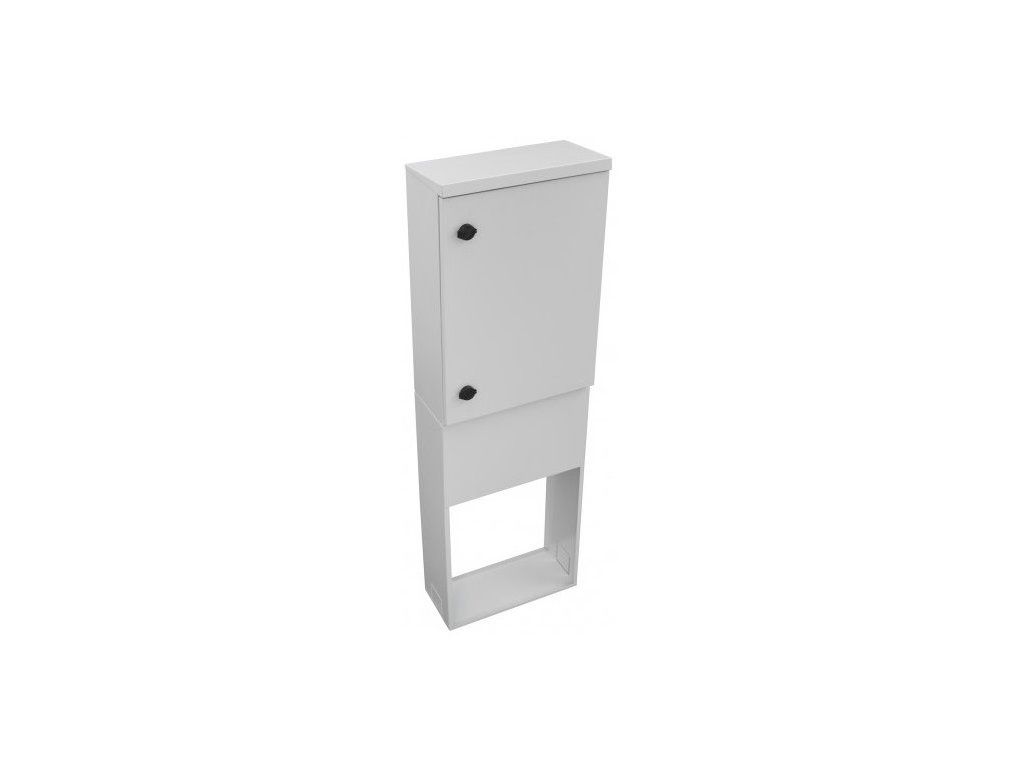

FTTH Optical column, SZS-43/143/23 MUFA

Product detailed description

Outdoor FTTH pole with installation in the ground is used for connecting fiber optic cables in front of the house with very easy access. The pole allows the connection of several fiber optic cables. The post has a grey RAL 7035 colour and IP65 protection rating. The dimensions of the post are 143 × 43 × 23 cm and the smaller lower part of the post is buried in the ground (60 cm). The upper part with the optics connection is lockable with 2 locks included in the package. Key features - Burying 60 cm - Organisation for hanging cables and microtubes coming out of the ground - Column in the above ground part made of sheet metal with "Magnelis" coating 1mm thick, underground part 1.5mm thick - Lockable with 2 hermetic locks - RAL 7035 grey - Degree of protection IP 65, anti-vandal protection IK10 Technical parameters Physical characteristics Degree of protection: IP65 Design: outdoor Antivandal (impact protection): IK10 Width [mm]: 430 Height [mm]: 1430 Depth [mm]: 230 Colour: Grey
