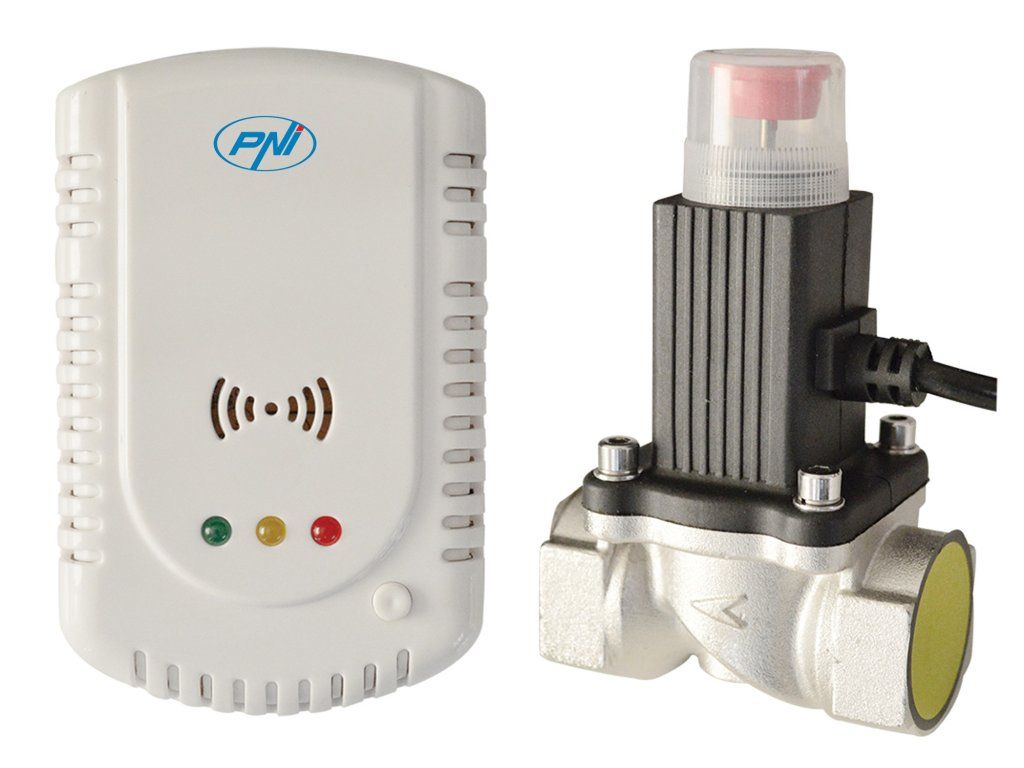

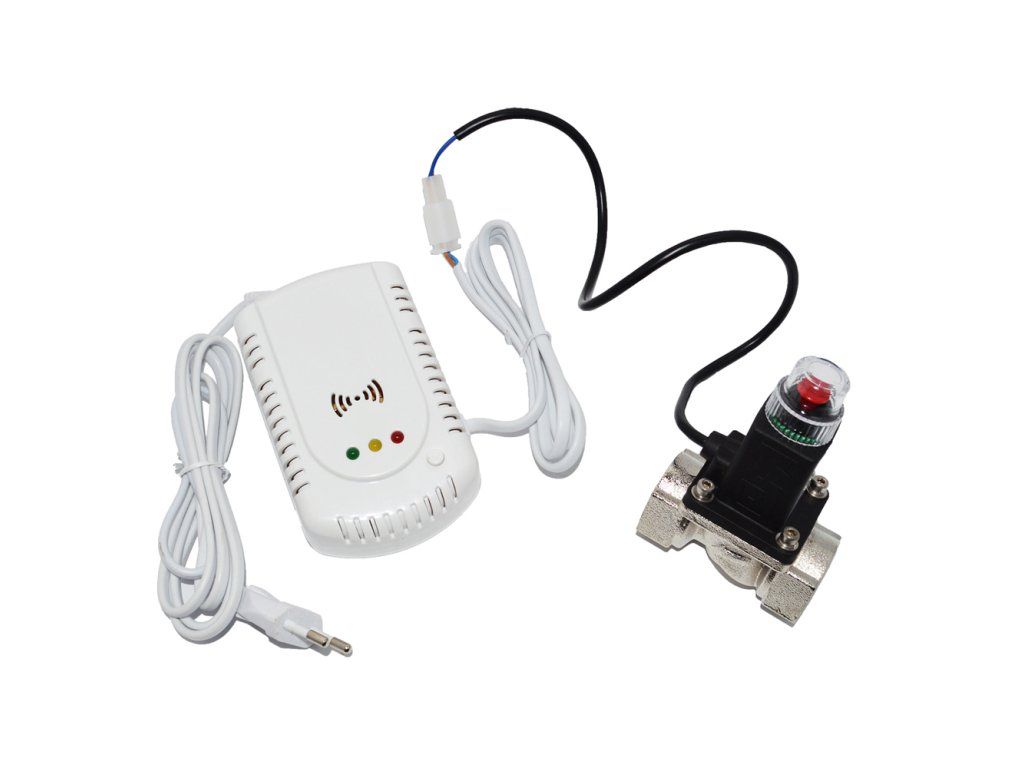

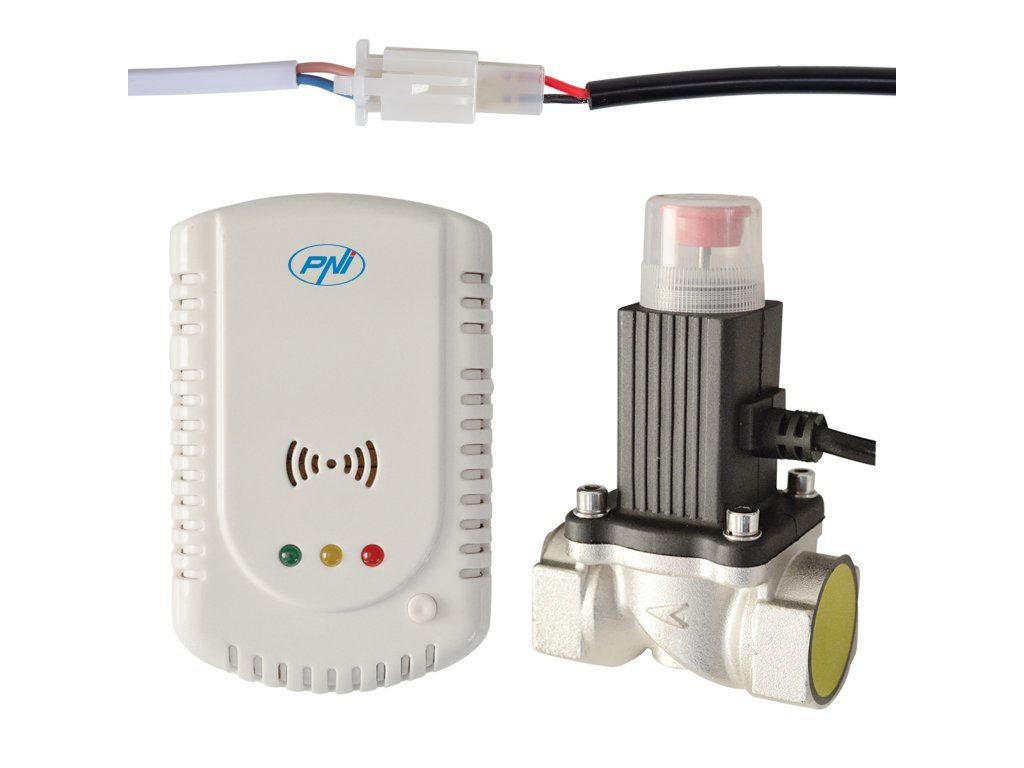

Gas Sensor Kit PNI GD-01 and PNI V-02 solenoid valve

Product detailed description

The PNI GD-01 and PNI V-02 solenoid valve kit is designed for installation in residential and commercial buildings where gas safety is critical. It is typically used in kitchens, boiler rooms and utility areas where gas leaks could pose a risk. The system is suitable for both new installations and retrofitting in existing gas systems. Installers working with gas appliances, heating systems or gas pipelines will find this kit useful for ensuring safety compliance and rapid response to gas leaks.

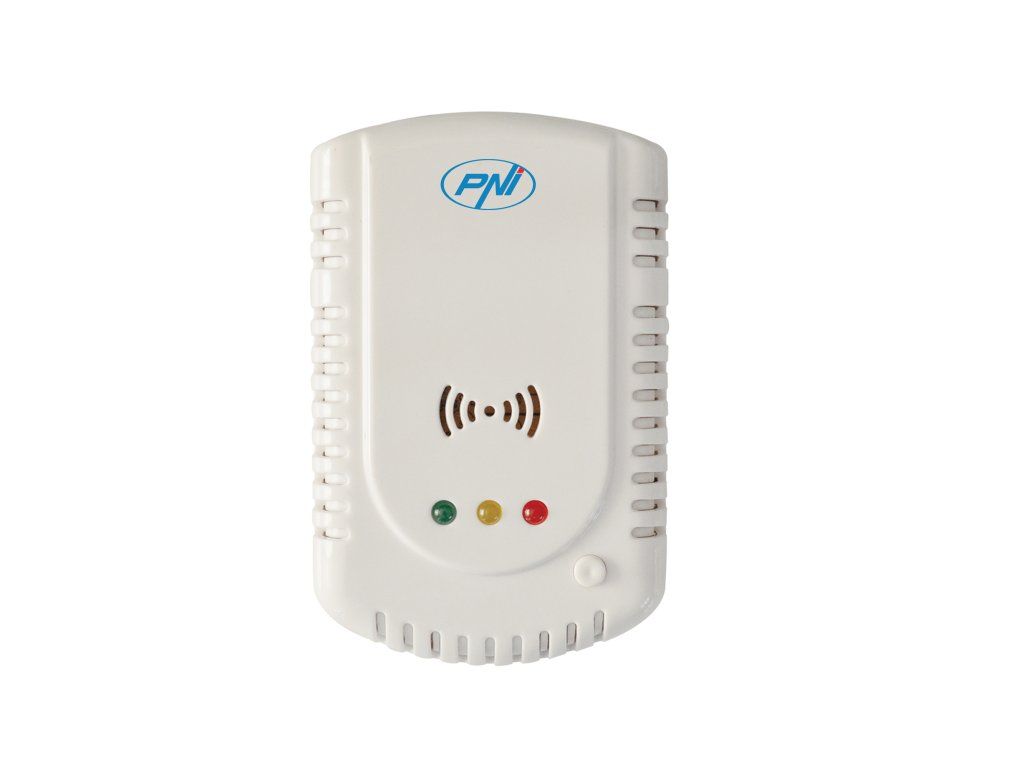

The system operates by continuously monitoring the air for the presence of flammable and toxic gases. When a leak is detected, the GD-01 sensor activates an alarm and sends a signal to the V-02 solenoid valve to close the gas supply. This dual-action system helps prevent fire hazards and health risks associated with gas exposure. The kit is intended for use with natural gas, liquefied petroleum gas (LPG) and carbon monoxide (CO), making it versatile for a range of gas applications.

Technical parameters

The technical parameters of the GD-01 and V-02 components are essential for proper system sizing and selection. The sensor detects gas concentrations at levels of 0.1–0.5 % for LPG, 0.1–1 % for natural gas and 0.1–0.4 % for CO. The solenoid valve operates with a closing time of less than one second and supports pressures up to 20 kPa or 100 kPa. These values determine the suitability of the system for different gas line pressures and flow rates. The 3/4 inch internal thread connection must be verified to match the existing piping system.

Installation and connection

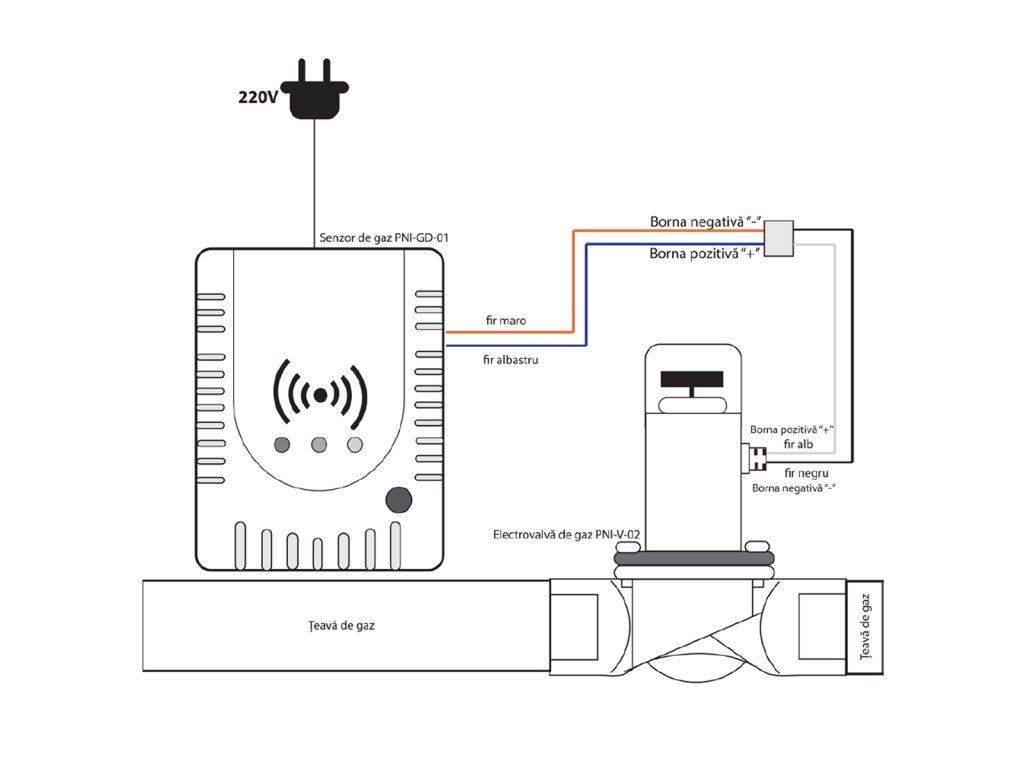

Installation of the gas sensor and solenoid valve must be carried out by a qualified technician. The GD-01 sensor is mounted on a wall or ceiling in the area to be monitored, ensuring it is positioned away from direct sources of heat or moisture. The V-02 solenoid valve is installed in the gas line, ideally close to the point of entry or the appliance being protected. The valve requires a 3/4 inch internal thread connection, and the existing piping must be compatible with this size.

The power supply for the GD-01 is 230 V, and the system must be connected to a dedicated circuit. The solenoid valve requires a 9–12 V DC supply for operation, which is provided by the sensor unit. During installation, it is important to verify that the gas line is depressurized and that all electrical connections are secure and insulated. Common installation errors include incorrect positioning of the sensor, failure to check the gas line for leaks before installation, and improper alignment of the solenoid valve with the piping.

Compatibility and accessories

The PNI GD-01 and V-02 solenoid valve are designed to work with standard gas piping systems that use 3/4 inch internal thread connections. The system is compatible with both LPG and natural gas systems, provided the pressure and flow rates fall within the specified operating range. No additional accessories are required for basic operation, as the kit includes both the sensor and solenoid valve. However, installers should ensure that the gas line is equipped with a suitable shut-off valve for manual control in case of system failure.

Technical background for designers

The GD-01 sensor uses a catalytic bead or electrochemical cell to detect gas concentrations. When gas molecules come into contact with the sensor, they trigger a chemical reaction that generates an electrical signal. This signal is processed by the internal electronics and used to activate the alarm and solenoid valve. The sensor is housed in an aluminum alloy casing, which provides durability and resistance to corrosion. The system is designed to integrate with standard gas supply lines and can be incorporated into larger building management systems for remote monitoring and control.

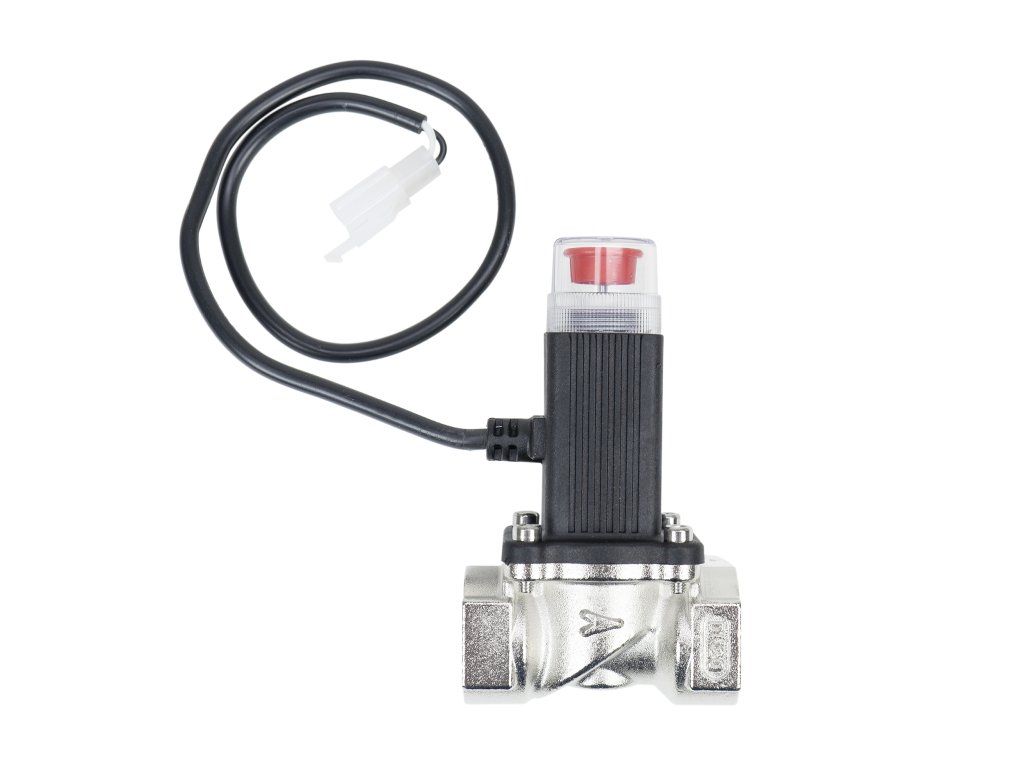

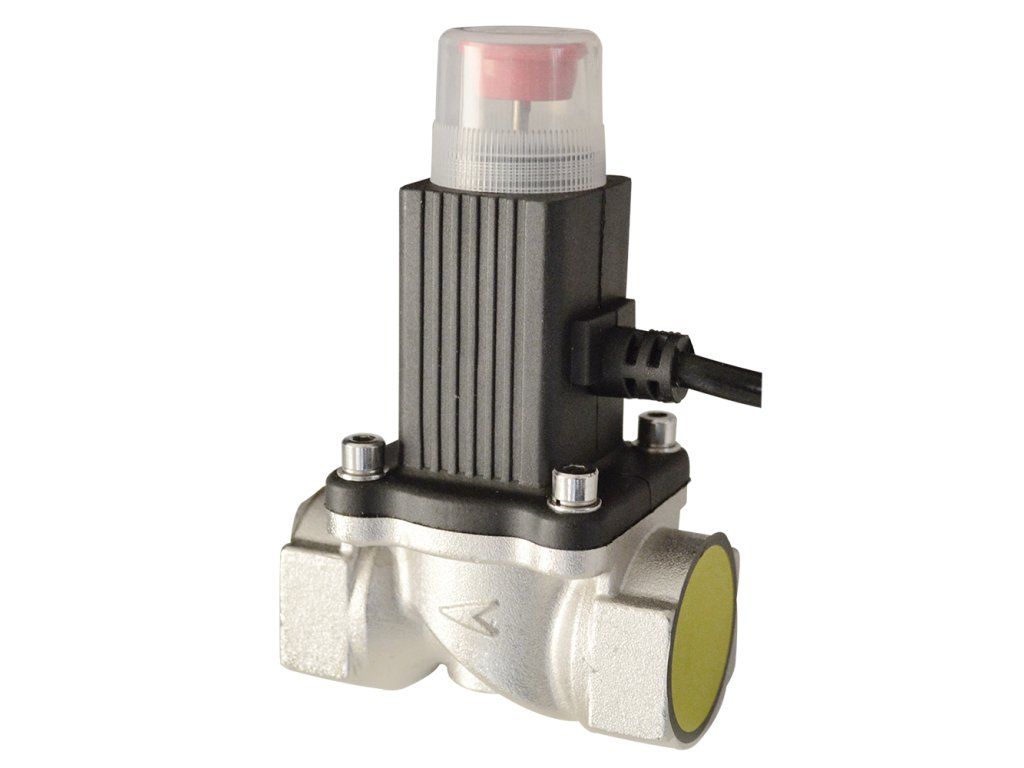

The solenoid valve operates using an electromagnetic coil that, when energized, opens or closes the valve. The valve is rated for use in environments with temperatures ranging from -26 °C to +60 °C, making it suitable for a wide range of climates. The choice of materials and the design of the valve ensure a long service life and reliable operation under normal conditions. The system's response time and sensitivity are critical factors in determining its effectiveness in preventing gas leaks from becoming hazardous.

Service and operation

Regular inspection of the gas sensor and solenoid valve is recommended to ensure continued functionality. The sensor should be checked for signs of damage or contamination, and the solenoid valve should be tested for proper operation. The system includes LED indicators that display the status of the sensor and alarm. During routine maintenance, the power supply and wiring should be inspected for wear or damage. No specific service intervals are provided in the technical data, but it is advisable to perform annual checks in accordance with local safety regulations.

Frequently asked questions

Can the GD-01 sensor detect all types of gas?
The GD-01 sensor is designed to detect LPG, natural gas and CO. It cannot detect other types of gas, so it is important to ensure that the system is suitable for the specific gas being used.

How is the solenoid valve powered?
The solenoid valve is powered by a 9–12 V DC supply, which is provided by the GD-01 sensor unit. No separate power source is required for the valve.

Can the system be used in outdoor environments?
The system is designed for indoor use only. It is not suitable for outdoor installation due to its sensitivity to moisture and temperature extremes.

What is the response time of the solenoid valve?
The solenoid valve closes in less than one second when activated by the sensor. This rapid response helps to minimize the risk of gas accumulation in the event of a leak.
