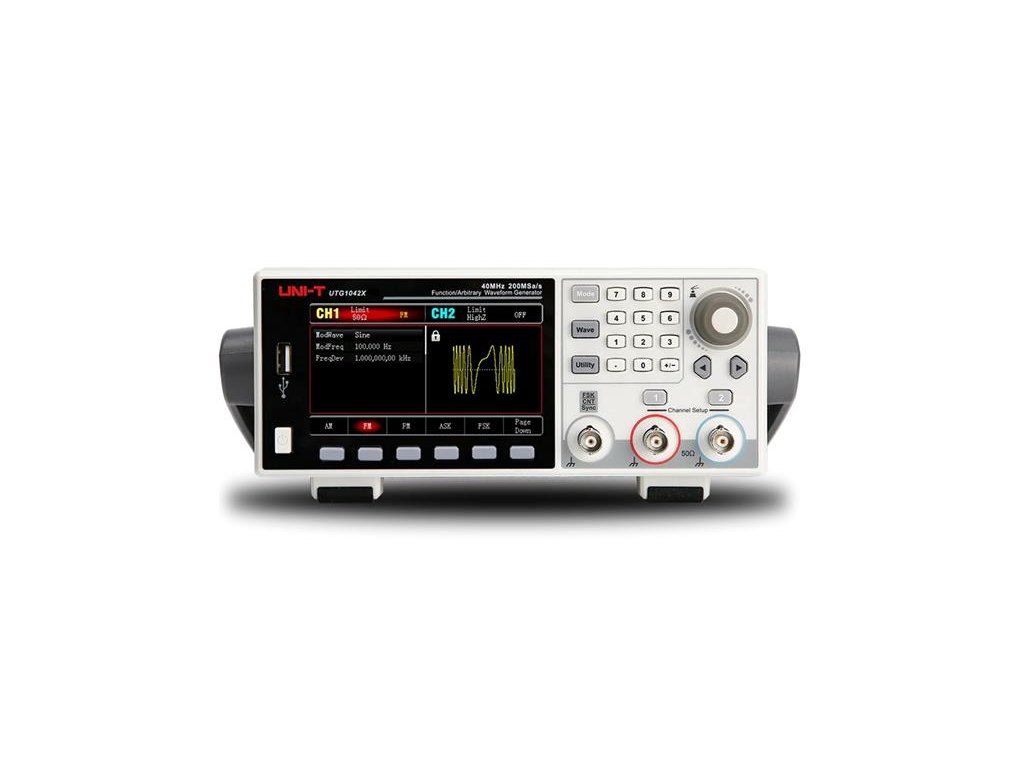

Generator UNI-T UTG1042X

Product detailed description

This product comes with a 3-year warranty.

The UTG1042X function generator from the UTG1000X series has a precise and stable output waveform with a resolution of up to 1 μHz. It is an economical, high-performance and multi-function function/arbitrary waveform generator. Accurate, stable, clean output signals with low distortion can be generated. With convenient operation, excellent technical indicators and user-friendly graphical display, it is a multi-purpose device that meets the needs of teaching, testing and production.
The generator is expected to be used in teaching, design, testing, troubleshooting and repair of electronic and electroacoustic devices; testing of semiconductor components, etc.


Product parameters:

- two-channel system with the same power
- simultaneously provides two high-power channels. High output amplitude is still guaranteed even at high frequencies
- can generate a rectangular wave up to 10 MHz
- high signal-to-noise ratio
- optional Power Amplifier Module: the PA model is equipped with a standard power amplifier module that can provide a maximum signal waveform of 4 W to meet the test requirements of some power devices
- rich Burst function: nOffers three methods of generating pulse sequences, allowing more flexible generation of different pulse sequences
- multiple modulation modes: offers seven analog and digital modulation methods AM, FM, PM, FSK, ASK, PSK and PWM, allows the use of multiple arrays
- sweep function: supports two frequency sweep methods: "linear" and "logarithmic"
- sampling rate 200MSa/s and 16 bit vertical resolution
- multi-function knob and numeric keypad for easy operation


Technical parameters:

- maximum waveform frequency: 40MHz
- supply voltage: 220 - 240 V AC / 50Hz
- frequency range of waveforms: 1µHz...1MHz (ramp waveform), 1µHz...20MHz (pulse waveform), 1µHz...20MHz (rectangular waveform), 1µHz...40MHz (sine waveform)
- type of display used: 4.3" LCD TFT
- display: 4.3" TFT LCD, 480 x 272 pixels
- number of channels: 2
- vertical resolution: 16 bits
- memory depth: 4 kpts
- output parameters: impedance: 50Ω
- dimensions: 215 x 103 x 316 mm
- interface: USB
- modulation type: AM, ASK, FM, FSK, PM, PSK, PWM
- waveforms: arbitrary, square, DC, impulse, ramp, sine, noise
- sampling frequency: 200MSa/s
- memory: 200 waveforms

Contents of the package :
- bNC-BNC cable
- bNC cable - step clamp
- uSB cable
- power cable

manufacturer : UNI-TREND
