Heat air station ZD-8968

Product detailed description

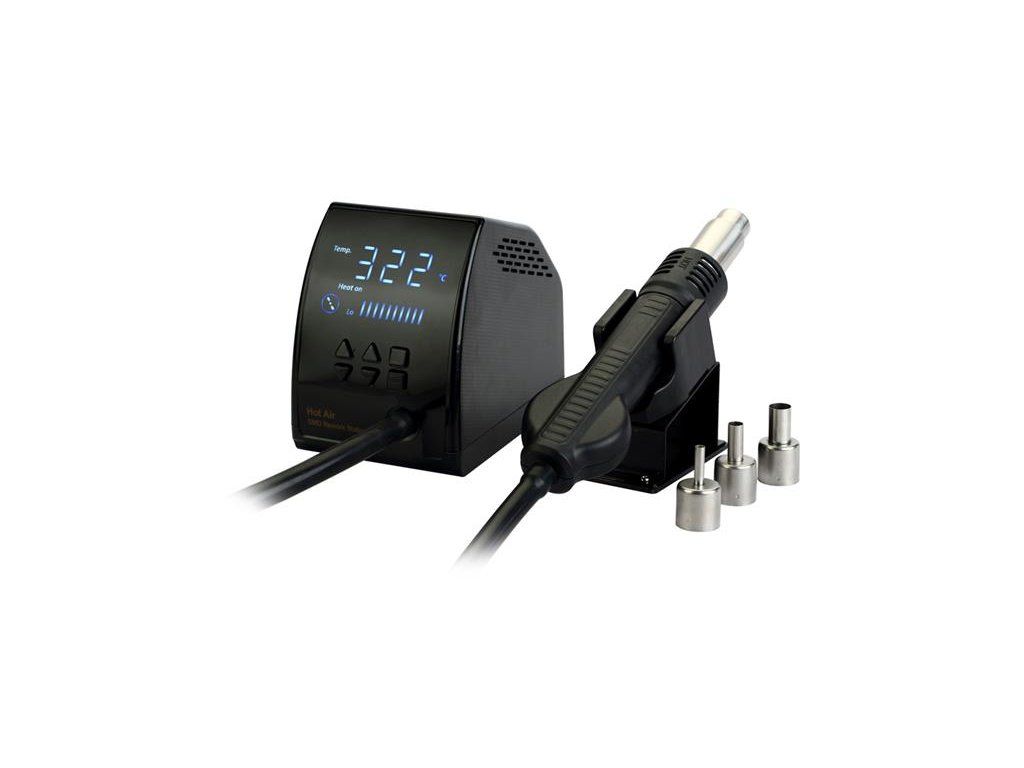

The ZD-8968 heat blower has a temperature range of 100 °C - 500 °C. This makes it great for desoldering sensitive SMD circuits such as SOIC, CHIP, PLCC, BGA, etc. But it is also applicable in many other applications where a concentrated flow of hot air is important, e.g. when cleaning 3D printers, hot seeding, shrink tubing, heating materials during maintenance or assembly. The temperature can be set on the LED display. The amount of air can be regulated continuously by controlling the fan speed and by using the three different spikes that are included. Additional tip-adaptors according to the shape of the SMD component can be purchased. The pen is equipped with a handle with non-slip rubber, which offers greater comfort and facilitates handling. The handle of the heat gun has a built-in sensor. As soon as you pick it up, it immediately goes into working mode, and as soon as you return it to the holder, it goes into standby mode. The automatic standby function saves energy considerably.


Product parameters:

- LED digital display to show the operating temperature
- infinitely adjustable air temperature
- infinitely adjustable hot air quantity
- 3 pcs interchangeable tips for concentrated air flow
- integrated into a single device
- can be used for both blowing and soldering SMD circuits using solder paste
- sleep mode - when the handle is put back in the holder, the heating automatically switches off and after a while the fan also switches off
- high quality heater delivers twice the working efficiency
- motor fan ensures gentle airflow, long life and very low noise during operation


Technical parameters:

- operating voltage: 220-240V AC/50Hz
- power (max.): 300 W
- temperature (min.): 100 °C
- temperature (max.): 500 °C
- weight: 1.2 kg
- type of soldering pen: desoldering iron
- air pump capacity max. 20l/min
- 3 × extension: diameter 4,4+8+12mm


Contents of the package:

- hot air blower ZD-8968 with handle
- 3 interchangeable attachments
- storage rack
