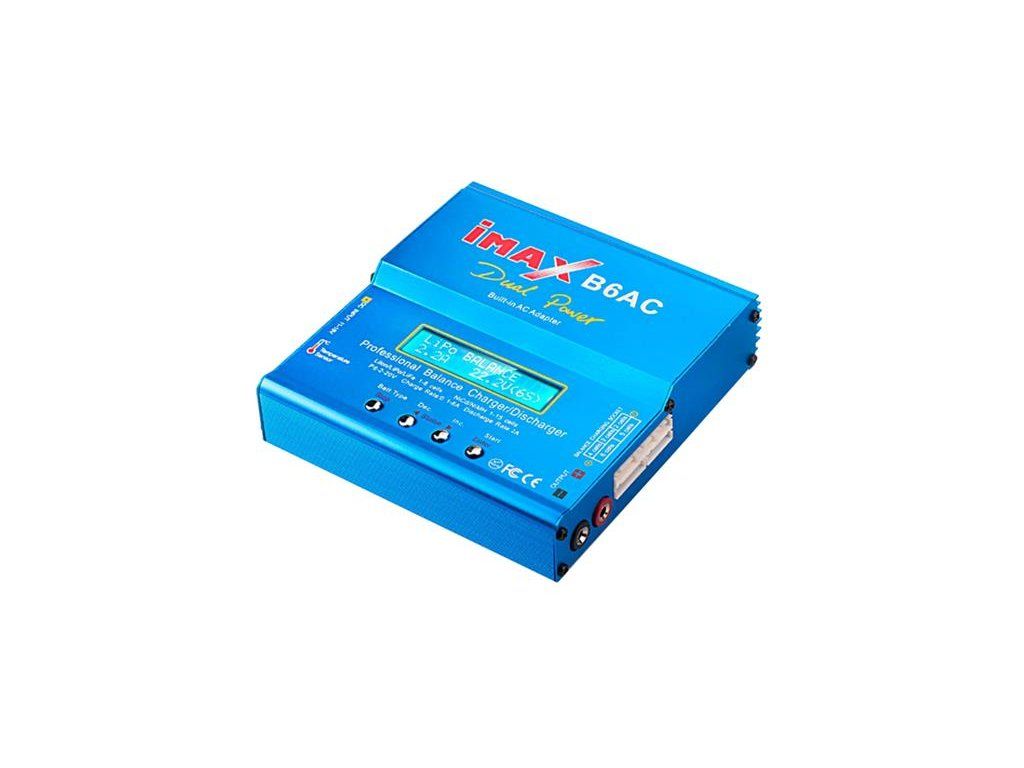

IMax B6 80W E6168 model charger

Product detailed description

Charger with power supply + adapters and temperature sensor

The Imax B6AC charger has a built-in power supply so it can be powered directly from the 230V AC mains. It also has an 11-18V DC power input, so you can use an external power supply or connect it to a car battery.

The optimized operating software of the Imax B6AC includes an AUTO function that controls the charging speed during charging and discharging. In the case of lithium batteries, this can prevent overheating that can lead to explosion due to incorrect parameter settings by the user. The charger automatically disconnects the circuit and triggers an alarm in the event of any malfunction. All operating modes of this charger are controlled automatically for maximum safety. All settings are user configurable.

the iMax B6AC is a small processor charger with up to 80W of power, designed to charge Ni-Cd, Ni-MH, Li-Po, Li-Ion, Li-Fe, PB batteries.

- Power supply from socket (230V) - the charger has a built-in power supply
- Battery support Ni-Cd, Ni-MH, Li-Po, Li-Lo, Li-Fe, PB
- Built-in balancer 2-6S for Li-xx batteries
- Microprocessor control
- Delta-peak
- Large range of current intensity changes
- Preservation function - preparing batteries for longer periods of inactivity
- Time limitation
- Battery voltage monitoring during charging
- Built-in memory
- Function for forming batteries
- For modellers

Technical parameters:

- Input voltage: 11-18V DC, 100-240V AC
- Supported battery types: Ni-Cd, Ni-MH, Li-Po, Li-Ion, Li-Fe, PB
- Number of supported LiXX cells: 1-6S (3.7-22.2V)
- Number of supported NiMH/NiCd cells: 1-15 (1.2-18V)
- Charging current: 0.1-6.0A (up to 80W) for LiPo and NiMH batteries
- Power: 80W
- Temperature sensor not included

Contents of the package:

- IMaxRC B6AC charger with power supply
- Power cord
- 11-18V DC power cable with croc terminals
- Battery charging cable: Jack - T-Dean
- Adapter set for battery connection: T-Dean - glow plugs, T-Dean - crocodile, T-Dean - JST, T-Dean - Futaba,
