Inverter control panel for Phoenix series

Product detailed description

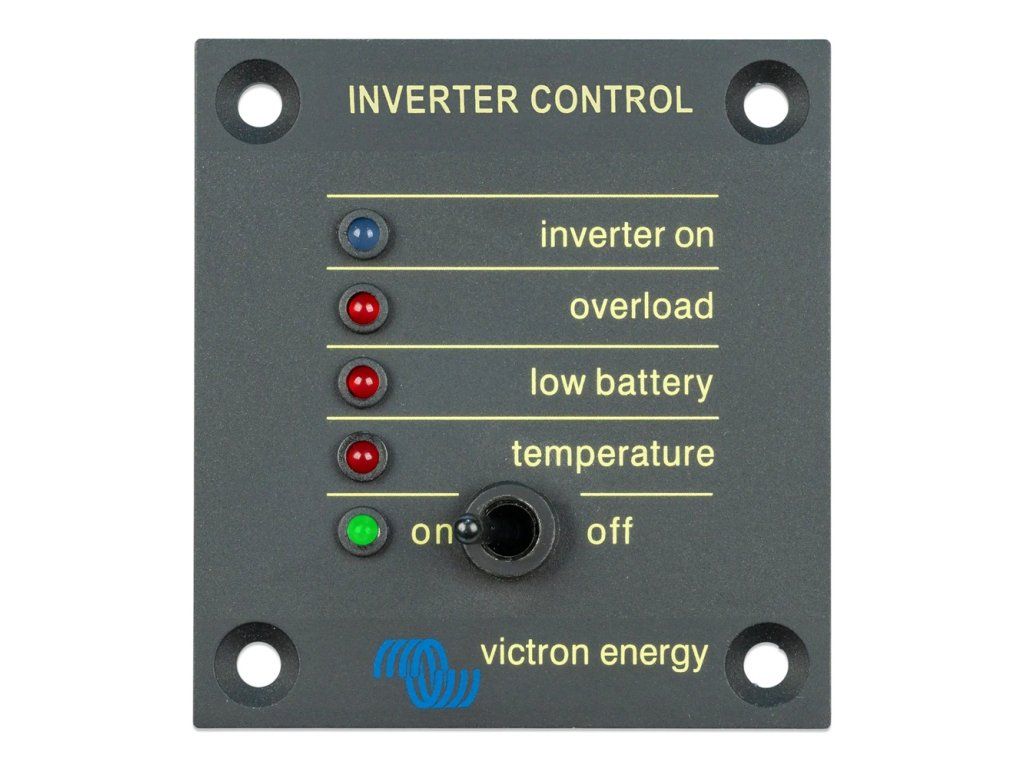

Panel for remote control and monitoring of Phoenix series inverters in single, parallel and three-phase carriage. It allows a lever switch to remotely switch on and off the connected equipment. The panel displays the operating status via LEDs. Displays inverter on/off, appliance overload, low battery state of charge and high equipment temperatures. Connection to the controlled device is via UTP cable with RJ45 terminals (not included). The panel is designed for embedding in the wall, electrical box, etc. The device is only applicable for Phoenix inverter models 12/1200, 12/1600, 12/3000, 12/5000, 24/1200, 24/1600, 24/3000, 24/5000, 48/3000 and 48/5000. These are optional accessories for Phoenix inverters that are controlled directly on the device as standard.
