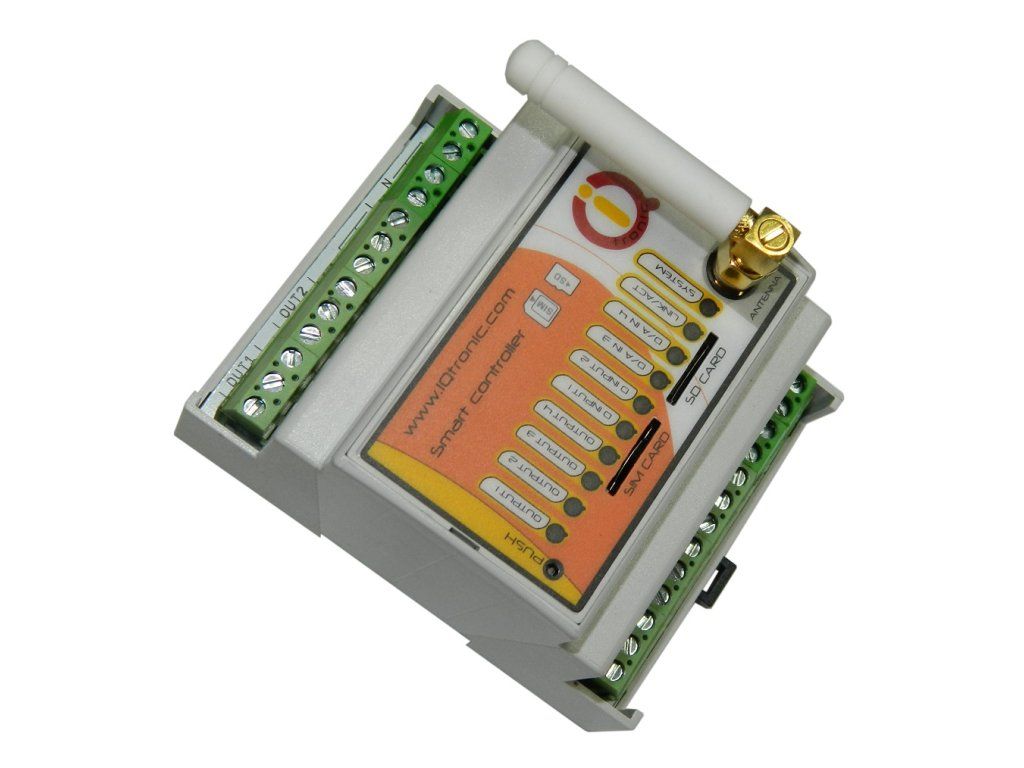

IQtronic IQTD-GS440 Intelligent GSM controller, DIN rail mounted communicator

Product detailed description

The fourth generation DIN rail communicator with the best price/performance ratio. Innovated and the most sophisticated GSM communicator on the market - GSM key/switch/control with the possibility of connecting a wide range of sensors. Control by smart app, SMS, ringing, Bluetooth, PLC, M2M or voice self-service. Possibility to change any command, response, rights and IVR. Up to 1000 user numbers and 2 admin numbers. Integrated PLC and M2M. IQTD_GS440 is a highly sophisticated GSM communicator used to control four independent outputs, which can be used to control appliances by SMS and mobile phone ringing and also as a GSM module for gate opening. The DC outputs are extended with the possibility of PWM control. It can also be controlled by the terminal wirelessly via bluetooth and by voice self-service. It is equipped with four S0-compatible digital inputs, two analog inputs for voltage monitoring and one input for connecting up to 8 temperature/humidity/pressure sensors. It has nearly 200 SMS commands. The device outputs two independent 230V NO outputs with a maximum current load of 16A - resistive load and two 5A/40V DC outputs with PWM capability. Among the list of interesting features are. - Switching on and off appliances by SMS and ringing: 230V,16A . - Automatic switching on with a scheduler or at a selectable time. - Automatic notification of power failure and power surge - Possibility to install a backup battery, not included. - Restart of servers. - Input status monitoring: A/D - fence monitoring, LOG1/LOG0 levels, or S0 pulses - power meters etc., temperature and humidity. - Thermostat function. - Alarm function: temperature, humidity, A/D, or LOG1/LOG0 change. - GSM signal jamming alarm: jamming. - 12 alarm numbers, each can be set to a different event. - Time scheduler function, up to 50 events. - Automatic logging of all events to internal memory. - Detailed logging of all events to an inserted SD card with FAT32. - Voice self-service, also user selectable. - Bluetooth configuration with highly professional terminal design with intuitive operation. - Possibility to change any text command and response. - Possibility to upload/transfer configuration, possibility to download LOG event file. - Possibility to upload user numbers from an external file. - Possibility to update the FW of the device. - Possibility to change permissions of SMS commands. - Possibility to control from internet gateways. - GPRS sending of SMS status using TCP/UDP protocol. - Highly sophisticated integrated navigation HELP. - Possibility to control via ANDROID application and WINDOWS via terminal also via BLUETOOTH. - External connector for antenna connection. - Possibility to insert multiple commands in one SMS (up to 160 characters). - Possibility to perform 2 different actions on incoming calls. And what are the extra extensions compared to GS400? Integrated surge protection on the AC input. Two independent AC and DC power supply options (also simultaneously) with alarm and PLC generation. 2 administration passwords and up to 1000 user numbers. Extended battery management, everything is kept track of in LONGSTATUS. M2M, the device can send the status of the device to the cloud, either your own or e.g. Thingspeak.com - 8 sensors for free. Downloaded XMl file from set URL can change device outputs, zero counters. Improved scheduler, can set both time interval and specific minute of startup. Alarm conditions can activate M2M. Ability to time block outputs - useful for gatekeeper for example. PWM outputs can also be controlled by limit values of connected sensors. Each output can be controlled manually, by SMS, BT, thermostat, scheduler and PLC. Simple PLC to create delayed impact relays, FLIP/FLOP and many other applications. And what is the most important ? By constantly upgrading to new and more cost effective components, we keep the unbeatable price, the same as the previous GS400, all in a higher quality and more user friendly installation. You won't find any other device on the market with even half the features at this price. The ten essentials of fast navigation: For quick work with your device. 1. Insert SIM without PIN. If you want to configure using Bluetooth, the SIM does not need to be inserted. 2. Connect to power. 3. The HELP command displays control commands, CONFIG displays configuration commands. 4. HELP=RESTART displays a description of how the command works and what parameters/limits it has. Analogous for all others. 5. The control commands can be used as they are, unless a PIN is set. 6. The question mark after the configuration command will show the current settings and options. 7. = sets the value/parameter of the configuration command. 8. It is possible to insert multiple commands in succession separated by #. 9. If you do not know the command, just type its part or initial letter, the device will list all similar ones. 10. You don't need a manual.
