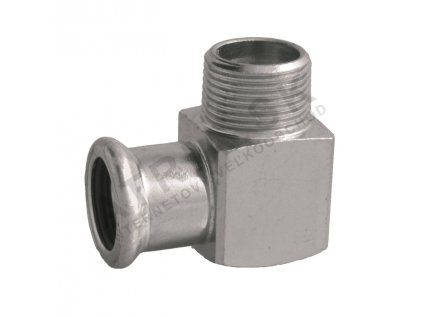

IVAR.IVC30,IVC31 - elbows 90° with thread
TRANSITION ELBOW 90° - WITH INTERNAL/EXTERNAL THREAD
IVAR.IVC30, IVAR.IVC31
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- transition elbow 90° with internal/external thread PRESS x THREAD
- purpose of use: for heating systems, sprinkler permanently watered systems,
compressed dry air, inert gases and industry - material: carbon galvanized steel, O-ring EPDM
- Note: Does not contain substances that limit the surface coating, leaky if not pressed
and with a pressing indicator up to 54 mm
Product sorting
List of products
Knee 90° - externally threaded, IVAR.IVC31, size: 15 mm x R 1/2, pack: 20 pcs...
Knee 90° - externally threaded, IVAR.IVC31, size: 18 mm x R 1/2, pack: 20 pcs...
Knee 90° - externally threaded, IVAR.IVC31, size: 18 mm x R 3/4, pack: 20 pcs...
Knee 90° - externally threaded, IVAR.IVC31, size: 22 mm x R 3/4, pack: 10 pcs...
Knee 90° - internally threaded, IVAR.IVC30, size: 15 mm x Rp 1/2, pack: 20 pcs...
Knee 90° - internally threaded, IVAR.IVC30, size: 18 mm x Rp 1/2, pack: 10 pcs...
Knee 90° - internally threaded, IVAR.IVC30, size: 22 mm x Rp 1/2, pack: 10 pcs...
Knee 90° - internally threaded, IVAR.IVC30, size: 22 mm x Rp 3/4, pack: 10 pcs...
Knee 90° - internally threaded, IVAR.IVC30, size: 28 mm x Rp 1/2, pack: 10 pcs...
Knee 90° - externally threaded, IVAR.IVC31, size: 15 mm x R 3/8, pack: 20 pcs...
