J&J Jirous antenna GentleBox JC-323MMCX - with integrated 22dBi 5GHz antenna, MMCX
Code: ABCT_52942141Product detailed description

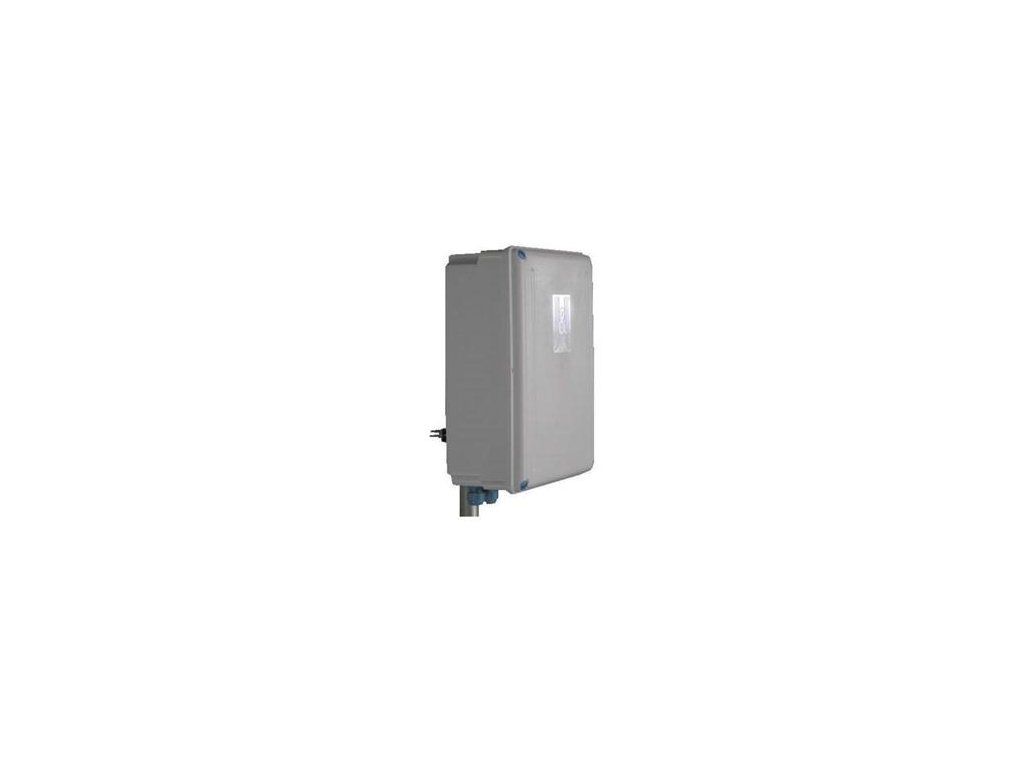

The GentleBox JC-323 is a 22dB narrow directional antenna with 22dB gain (vertical/horizontal polarization depending on lid insertion) integrated in an outdoor box for outdoor mounting with any active element.
Technical parameters:
Internal dimensions: 309 x 309 x 88 mm
Active element connection: integrated pigtail with MMCX connector for miniPCI connection
Installation: supplied with positioning bracket (elevation +/- 20°) for mast/console diameter 27-74mm
Included:
Non-losing bayonet "screws" for easy closure of the GentleBOX: 4 pcs
Special pole holder 19 - 54 mm: 1 piece
Cable grommet for cables 4 - 10 mm, extra blue quality: 1 pcs
Screws for mounting electronics + plastic posts: 4 + 4 pcs
Additional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 2.2 kg |
