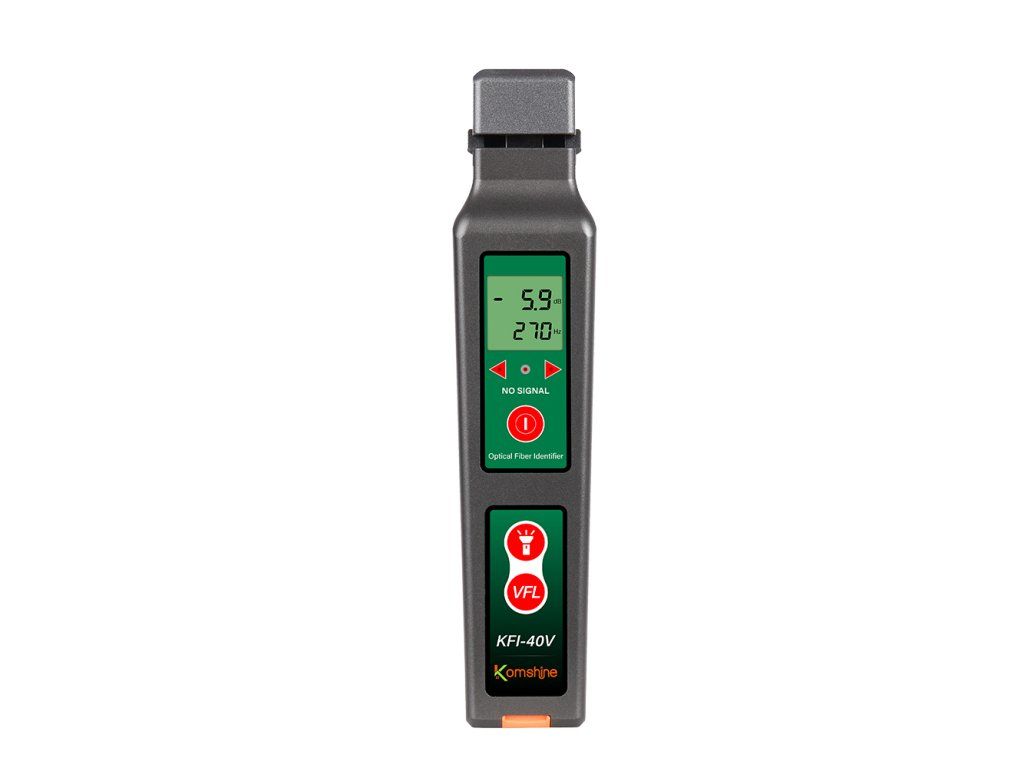

Komshine KFI-40V Fiber Optic Identifier + VFL

Product detailed description

Komshine KFI-40V Fiber Optic Identifier + VFL. Through the fiber identifier, the signal direction and relative power in the core of a singlemode optical fiber can be determined without transmission interference by simply inserting the fiber into the measuring adapter. Easy to operate thanks to universal fiber grip (0.25/ 0.9/ 2/ 3 mm) and one-button operation. Features: Suitable for 0,25/0,9/2,0/3,0 mm fibres Test sensitivity: -40dBm to 10dBm LED backlit display, suitable for various environments without auxiliary instruments Powerful light source Test distance up to 5km, high stability VFL function configuration, 2.5mm universal connector (SC/ST/FC) Equipped with LED light, more convenient fiber inspection in the dark Specifications OFI Wavelength range: 850~1625nm Signal type identification: CW, 270Hz ± 5%, 1kHz ± 5%, 2kHz ± 5% Detector type: 1mm InGaAs 2 pcs Fiber type: 0.25mm, 0.9mm, 2.0mm, 3.0mm Signal direction: left & right LED Optical signal reading range: -40dBm ~ 10dBm Frequency range: 270Hz, 1kHz, 2kHz Power Type: Alkaline Battery Type AA*2/Lithium Battery Type 1000mAh Operating Temperature: -10°C ~ 60°C Storage conditions: -25°C ~ 70°C Dimensions/Weight: 219*45*28mm/ 235g VFL Laser power: 10mW Test distance: 5~8km Wavelength: 650nm Laser type: LD LED illumination: Yes
