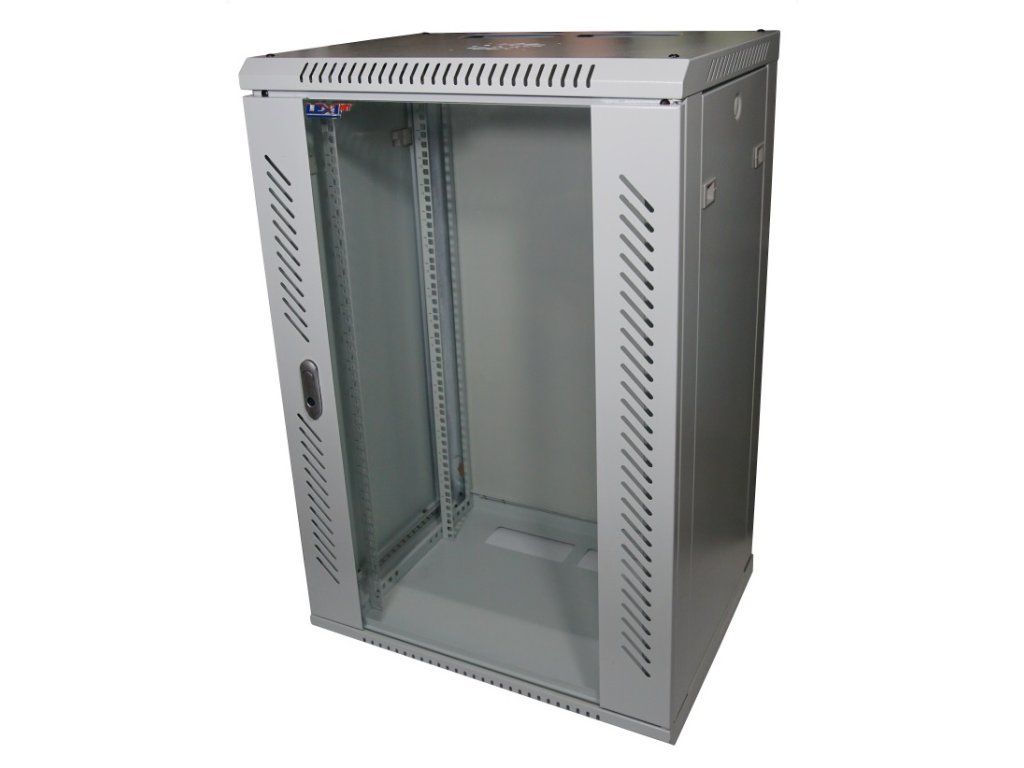

Lexi-NET 18U 600/450 wall switchboard

Product detailed description

18U steel wall-mounted switchboard. Product description: DIMENSIONS: 18U 600mm x 450mm x 901mm (WxDxH) STANDARDS: ANSI/EIA RS-310-D, IEC297-2, DIN41491 - Part 1, Part 7, GB/T3047, 2-92STANDARD MATERIAL: cold rolled steel DOORS: glass front door, tempered safety glass glued. Separable side parts. THICKNESS: structural parts 2,0mm, other parts 1,2mm FINISH: comaxit baked paint RAL7035, anti-corrosion treatment WEIGHT: 60kg OTHER OPTIONS: locks for side doors (P/N: ZAM-LN) The switchboards are supplied as standard in disassembled condition.
