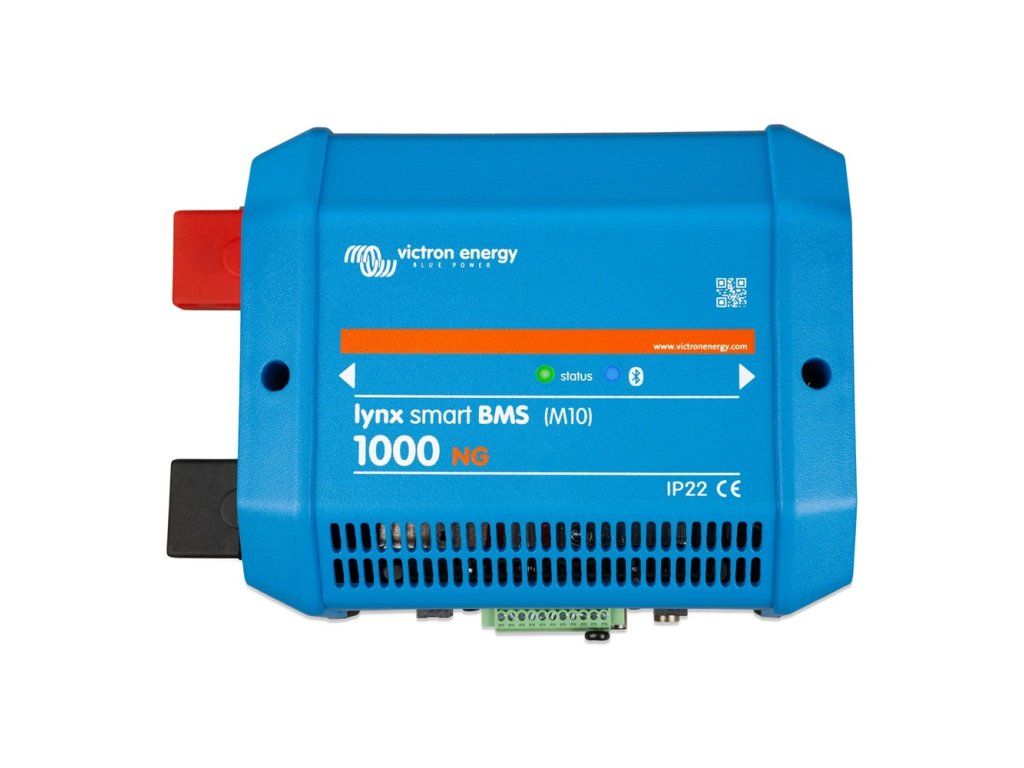

Lynx Smart BMS 1000 NG (M10)

Product detailed description

The Victron Energy Lynx Smart BMS 1000 NG is Victron Energy's robust and high-performance LiFePO battery management unit. It is designed as a central element for safe and efficient control and monitoring of higher current battery systems. In addition to its protection features, it includes a 1000A shunt, three relay outputs and advanced communication interfaces. It fully integrates into the Victron Lynx system and allows local and remote monitoring using GX devices and the VRM portal. Key Features and Functions: Designed exclusively for Victron Energy LiFePo NG batteries Integrated 1000A shunt for current, voltage measurement and SoC calculation VE.Can communication for connection to Cerbo GX and other GX devices Bluetooth interface for configuration and monitoring via VictronConnect app Three output relays: pre-alarm, load disconnect and charge disconnect Option to automatically disconnect load and charge in case of error or critical values Full compatibility with the rest of the Victron Lynx system (Power In, Distributor, etc.) High current capacity for more demanding systems Specifications: - Rated shunt current: 1000 A - Voltage range: 9 - 70 V DC - Maximum system current: 1000 A - Fuse: Class-T 1000 A (integrated) - Interfaces: VE.Can, Bluetooth, 3x relay output - Dimensions (h x w x d): 290 × 170 × 80 mm - Weight: 2.7 kg - Busbar type: M10 for wires, fuses and connections between modules - Protection class: IP22 - Operating temperature: -40 °C to +60 °C - Storage temperature: -40 °C to +65 °C - Relative humidity: max. 95% (non-condensing) - Housing material: ABS plastic
