Masterlan Comfort FTP cable outdoor Cat5e, PE, 24AWG, 305m

Product detailed description

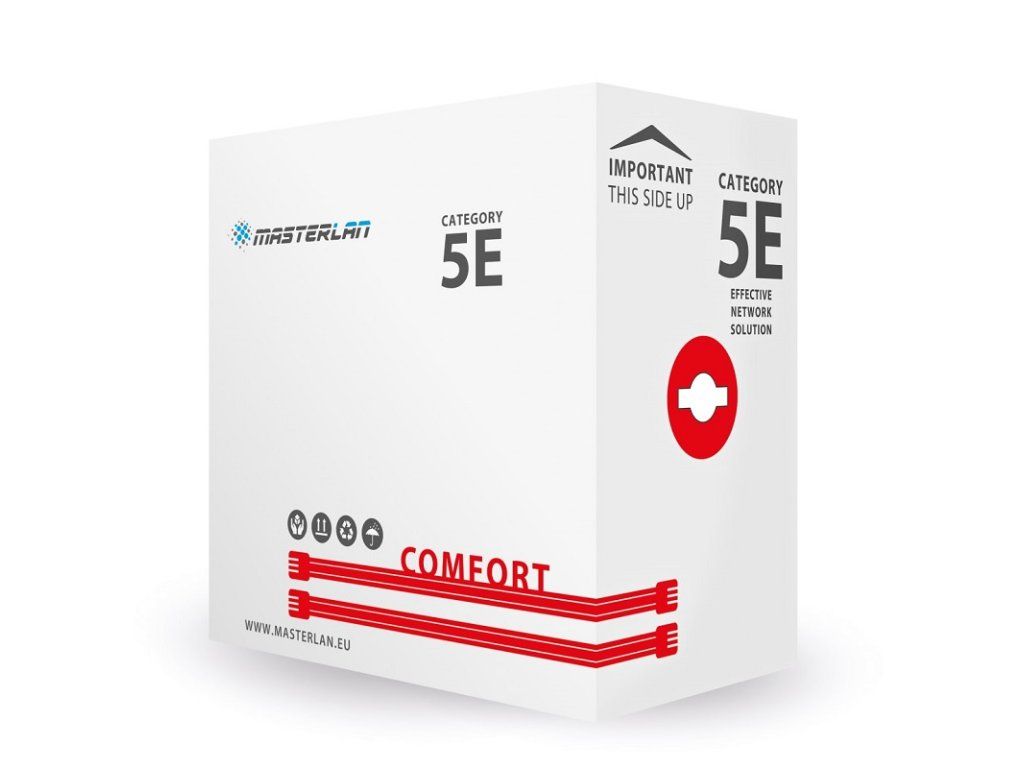

This installation FTP cable with the designation OFTP5E24-MSC is part of the Masterlan Comfort - Category 5E product line and is designed for outdoor structured cabling, it seamlessly meets the requirements specified in the international standards ANSI / TIA / EIA 568, ISO/IEC 11801 and EN 50173 including all the latest additions for Category 5E and are also suitable for data transmission speeds up to 1 Gbps. The cable is manufactured in a shielded version with PE jacket. The conductors of these cables are made of high quality AWG24 copper wire. Like the other cables, it is marked with a meter gauge in 1 m increments ranging from 0 to 305 m. The cable is supplied in a rigid cardboard box. Technical parameters Physical characteristics Type of shielding: FTP (F/UTP) Installation temperature [°C]: 0 to 50 Storage temperature [°C]: -20 to 60 Cable cross-section: AWG24 Cable type: Wire Application: outdoor Wire Material: Copper Sheath Material: PE Length [m]: 305 Cable diameter [mm]: 5.6 Colour: Black General CAT5e Bandwidth [MHz]: 100 Supported Protocols: 1000 Base-T
