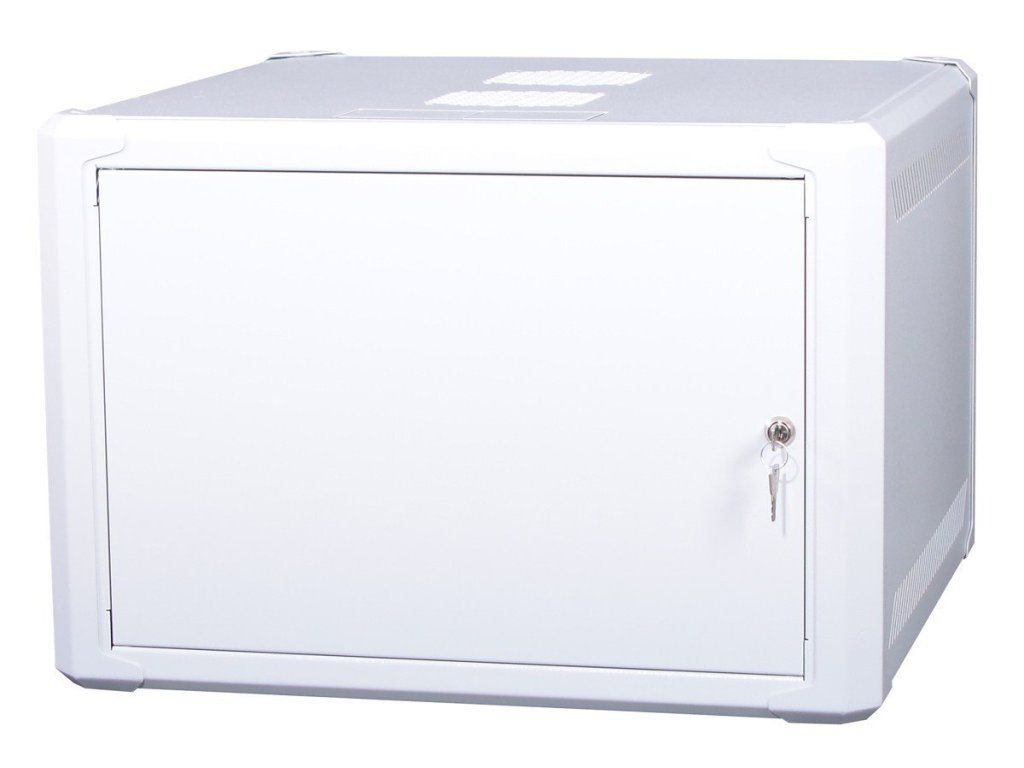

Masterlan one-piece rack 19" 9U/600mm, unfolded - FLAT PACK, metal door

Product detailed description

A new addition to Masterlan's product range are data switchboards. When handling, you will appreciate the robust solid construction while maintaining a favourable weight. The 9U/600 mm rack is delivered in a rolled state and its assembly is a matter of minutes without the use of any special tools - only 2 screwdrivers (flat and Phillips) are needed. Delivery in unfolded state facilitates transport and subsequent handling and saves transport costs. The switchboard is supplied with a metal door. The door can of course be installed with left or right opening. For hanging on the wall, there are 4 holes at the back. On the bottom and top side you will find ventilation holes and holes for cabling. On the sides, there are ventilation holes at the top and bottom. The fan holes have a screw spacing of 10.5 cm and are thus designed for conventional 12 cm fans. Technical parameters Physical characteristics Load capacity [kg]: 60 Fan option: Yes Degree of protection: IP20 Size: 19" Use: Indoor Number of "U" positions: 9 Width [mm]: 601 Height [mm]: 547 Depth [mm]: 600 Door filling: Sheet metal Demountable: Yes Colour: Grey General Switchboard type: Wall-mounted
