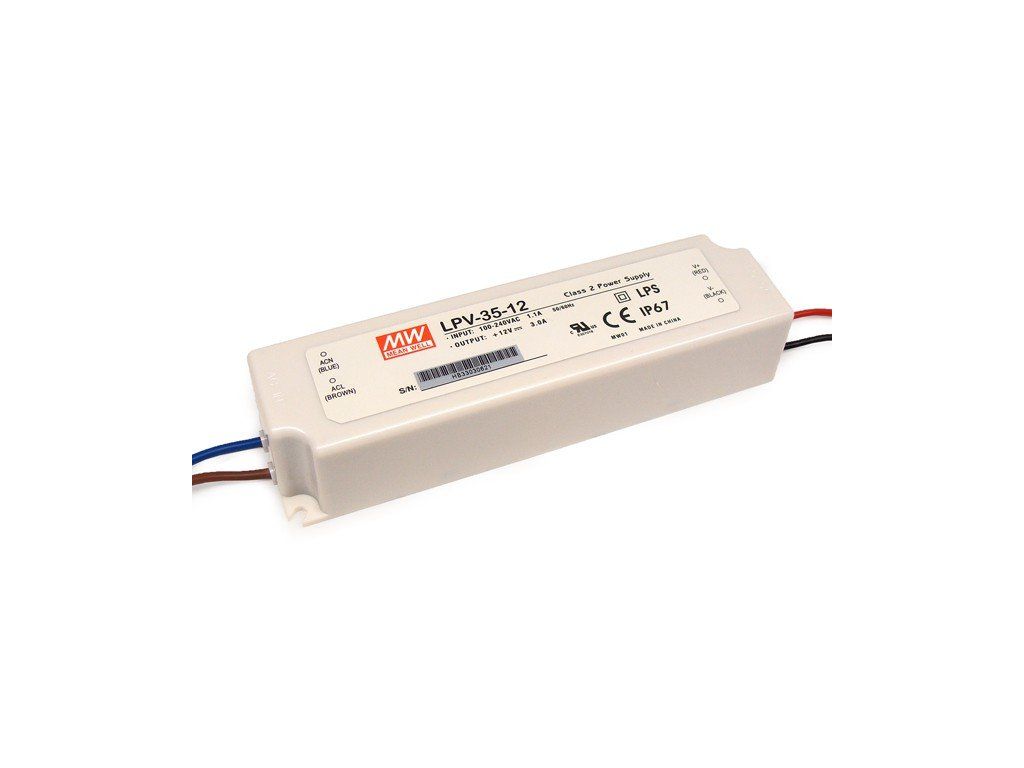

MEAN WELL LPV-35-12 power supply for LED 35W 12V

Product detailed description

LED electronic transformer, voltage stabilized DC 12V/35W for power supply of parallel connected LEDs, LED Strips, LED Strips, LED Bulbs. The transformer maintains a constant voltage of 12V. It has built-in fuses against overheating, short circuit and overload. HOW TO DETERMINE THE REQUIRED POWER OF THE TRANSFORMER? The wattage is determined by the number of bulbs to be powered and the size of their wattage. Example: number of bulbs 5, bulb wattage 3W, 5 x 3=minimum power of the transformer must be 15W. The transformer should operate with 30 percent margin, the recommended transformer power is 18W. Always select a transformer with a power reserve of 20-30% to avoid high load and overheating. Power supply type: switching Power supply type: voltage supply Power: 36W Output voltage: 12V DC Output current: 3A Supply voltage: 90...264V AC, 127...370V DC Protection rating: IP67 External dimensions: 40 x 148 x 30mm Power supply/converter characteristics: reaches rated parameters at full load Protection: overload, voltage surge, short circuit protection Weight: 340g Operating temperature: -30...75°C Electrical connection: 600mm wires Number of outputs: 1 Series: LPV-35 Efficiency 84%
