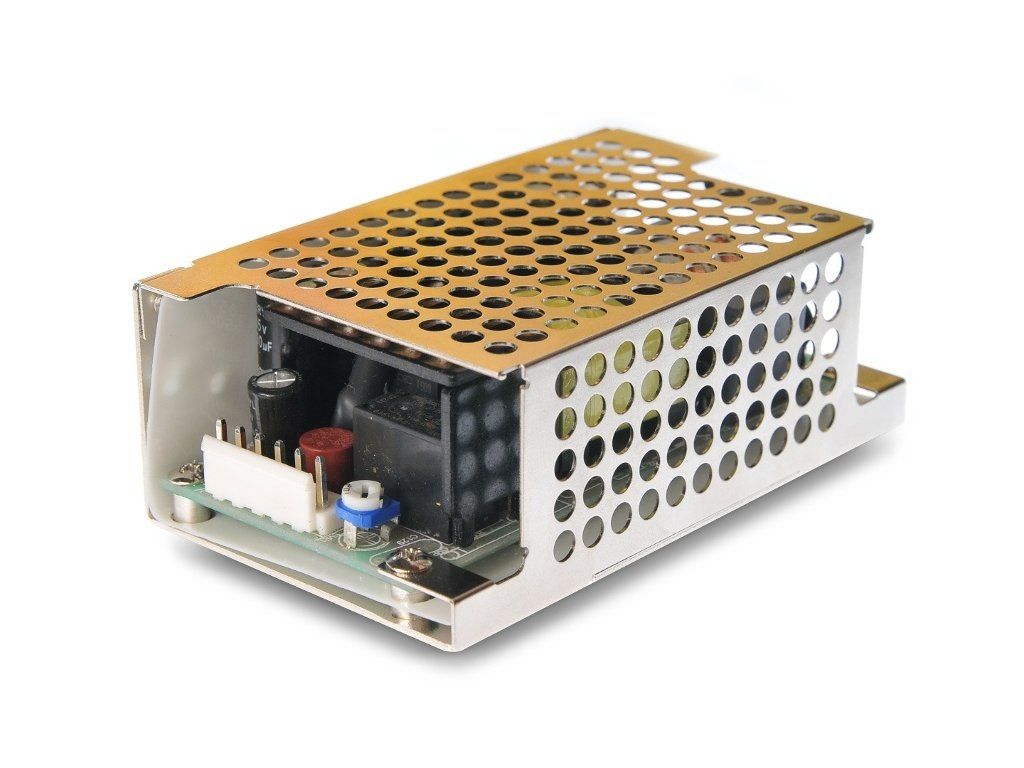

MEAN WELL PSC-60A-C Switching power supply with charger function (UPS) 60W 12V

Product detailed description

Product Description:

Switching power supply Mean Well with cover with charger (UPS function) 59,34W 13,8/13,8V

Description:
universal input
protection against short circuit, overload, overvoltage
hiccup mode on overload, automatic recovery
battery discharge protection
failure signalling
low battery indication

Parameters:
Input voltage: 90...264 V AC (47...63 Hz), 127...370 V DC
Input inrush current, max.: 60 A
Output voltage: 13.8 V
Output current range: 0...4.3 A
Output power: 59.34 W
Output voltage setting: 12...15 V
Output voltage tolerance: 1%
Ripple and noise (peak-to-peak): 120 mV
Efficiency: 84 %
Loss current, max.: 1 mA
Overload protection: 105...150 %
Test voltage:
input-output: 3000 V AC
input-Cost: 1500 V AC
output-cost: 500 V AC
Operating temperature: -20...+70 °C
