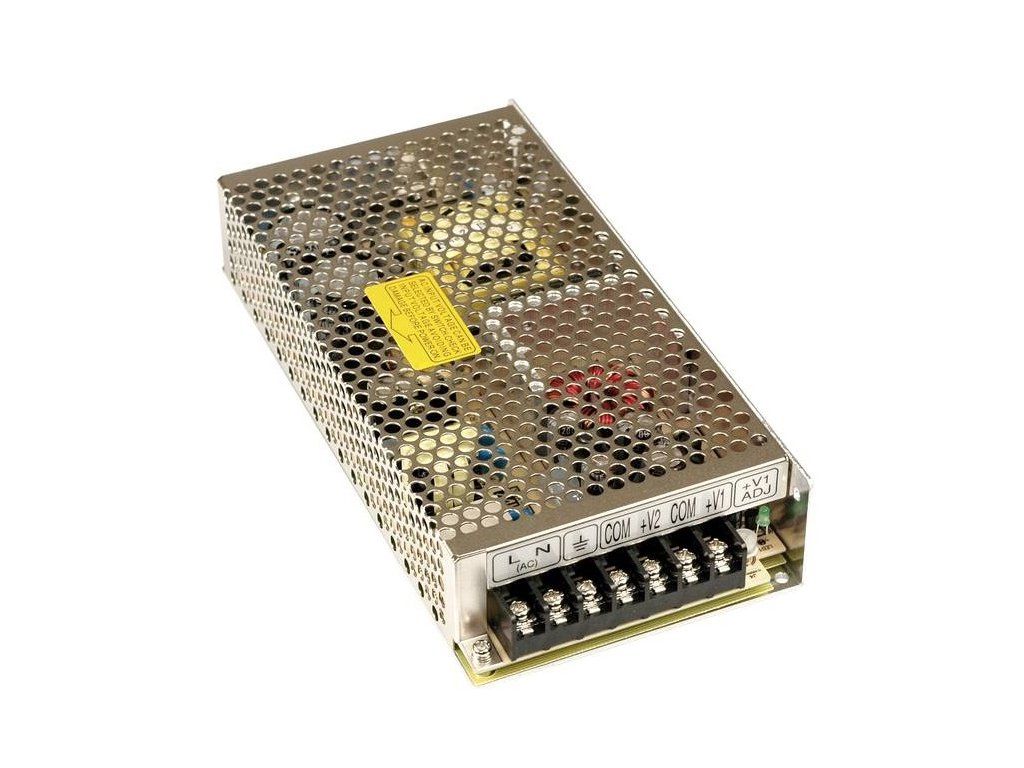

MEAN WELL RD-125-2448 Switching power supply 125W 24V 48V

Product detailed description

Constant voltage power supply in metal housing with screw terminals. Compact design, simple convection air cooling, 105 °C capacitors for high reliability, 5G vibration test, dual output. Characteristics - Enclosed construction (case), screw connections - Switch for 115V/230V input voltage - Overload protection by current limiting, automatic function restoration - With short circuit protection, overload/overvoltage protection - Long Life 105°C electrolytic capacitor - RID-125: isolated outputs Technical parameters: Power supply type: switching Power supply type: modular Series: RD-125 Power: 144W Output current: 2 (0.5...4)A Output current: 2 (0.2...2.5)A Number of outputs: 2 External dimensions: 199x98x38mm Weight: 700g Operating temperature: -25...70°C Electrical connection: terminal block Mounting: built-in Protection: surge, overload, short circuit Efficiency: 86% Enclosure type: 902A Output voltage: 24V DC Output voltage 2: 48V DC Supply voltage: 88...132 / 176...264V AC, 248...373V DC
