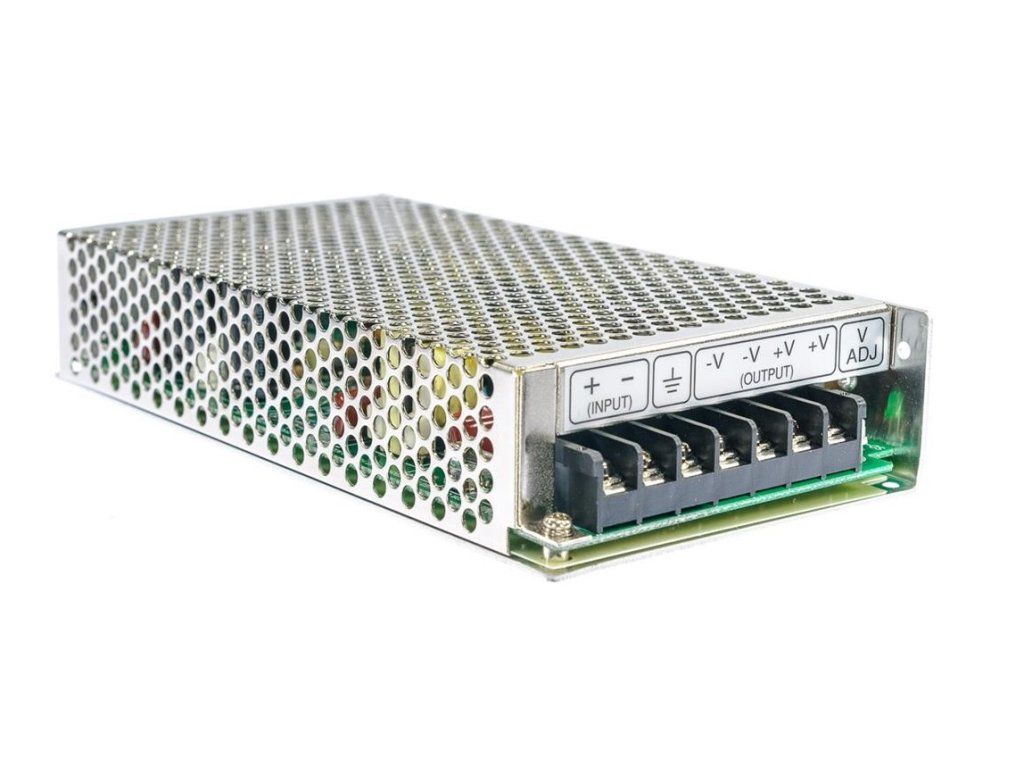

MEAN WELL SD-100C-24 DC/DC converter, 100 W

Product detailed description

The SD-100C-24 is a high quality voltage converter from the SD-100 series in a box design with 36 to 72V DC input variable voltage, 24VDC output voltage (23 to 30V DC) and a total power output of over 100W. The inverter includes overload, surge and short circuit protection. Technical parameters Physical characteristics Operating temperature [°C]: -10 to 60 Weight [g]: 650 Depth [mm]: 199 Width [mm]: 98 Height [mm]: 38 Power supply Input voltage [V]: 36 .. 72V DC Output voltage [V]: 23 .. 30V DC Output power [W]: 100 Efficiency [%]: 81 General Converter type: DC/DC
