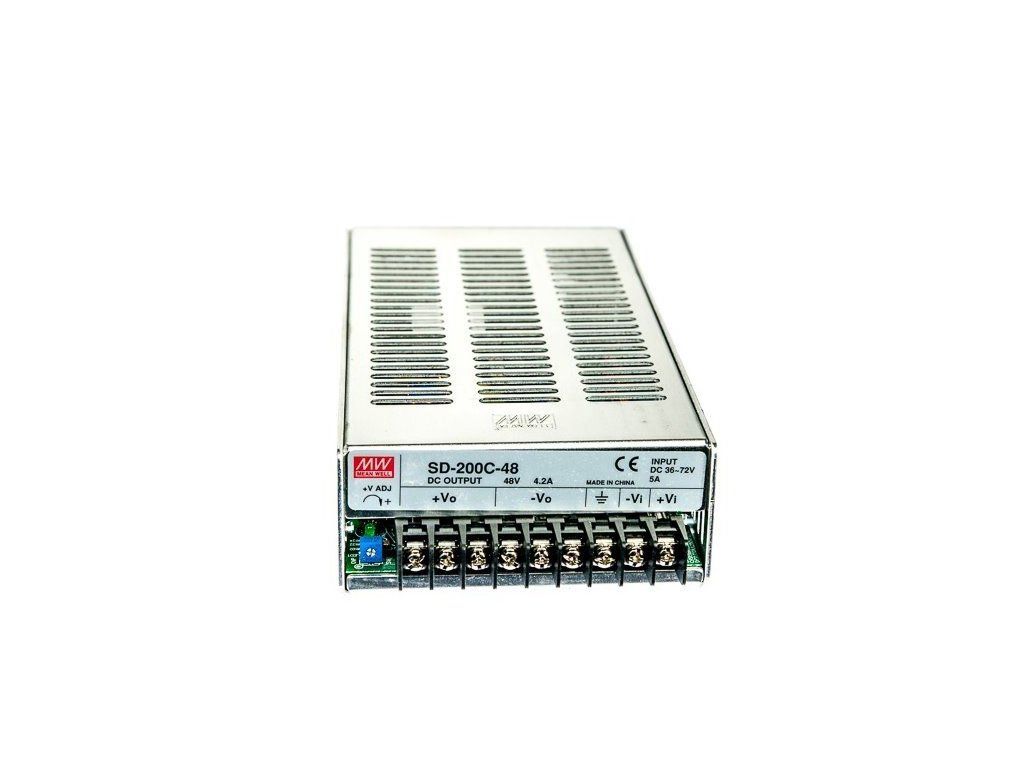

MEAN WELL SD-200C-48, DC/DC converter, 200 W

Product detailed description

The SD-200C-48 is a high quality voltage converter from the SD-200C series in a box design with a variable input voltage of 36 to 72VDC, output voltage of 48VDC and a total output power of 201W. The inverter includes overload, surge and short circuit protection. Technical parameters Physical characteristics Operating temperature [°C]: -10 to 60 Weight [kg]: 1.1 Depth [mm]: 215 Width [mm]: 115 Height [mm]: 50 Power supply Input voltage [V]: 36 .. 72V DC Output voltage [V]: 43 .. 53V DC Output power [W]: 201.6 Efficiency [%]: 86 General Converter type: DC/DC
