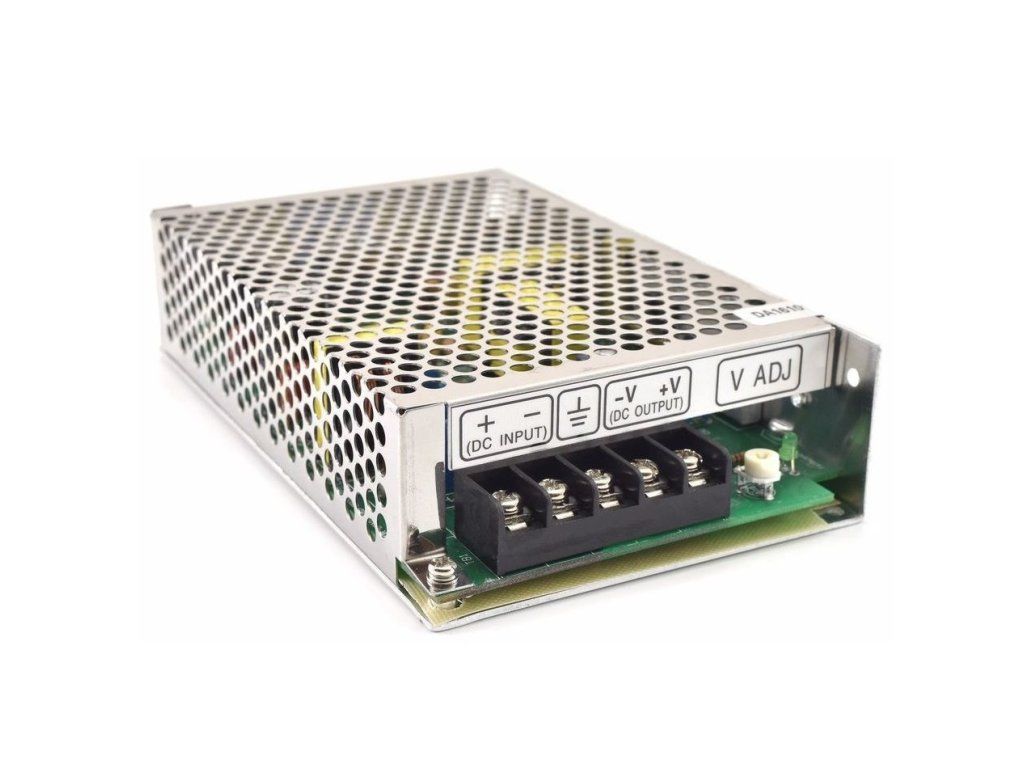

MEAN WELL SD-50C-24 DC/DC converter, 50W 24V

Product detailed description

The SD-50C-24 is a high quality voltage converter from the SD-50 series in a box design with a variable input voltage of 36 to 72VDC, an output voltage of 24VDC and a total power of 50W. The inverter includes overload, surge and short circuit protection. Technical parameters Power supply Input voltage [V]: 36 .. 72V DC Output power [W]: 50 Output voltage [V]: 23 .. 30V DC Efficiency [%]: 83 Physical characteristics Operating temperature [°C]: -10 to 60 Weight [g]: 480 Height [mm]: 38 Width [mm]: 97 Depth [mm]: 159 General Transducer type: DC/DC
