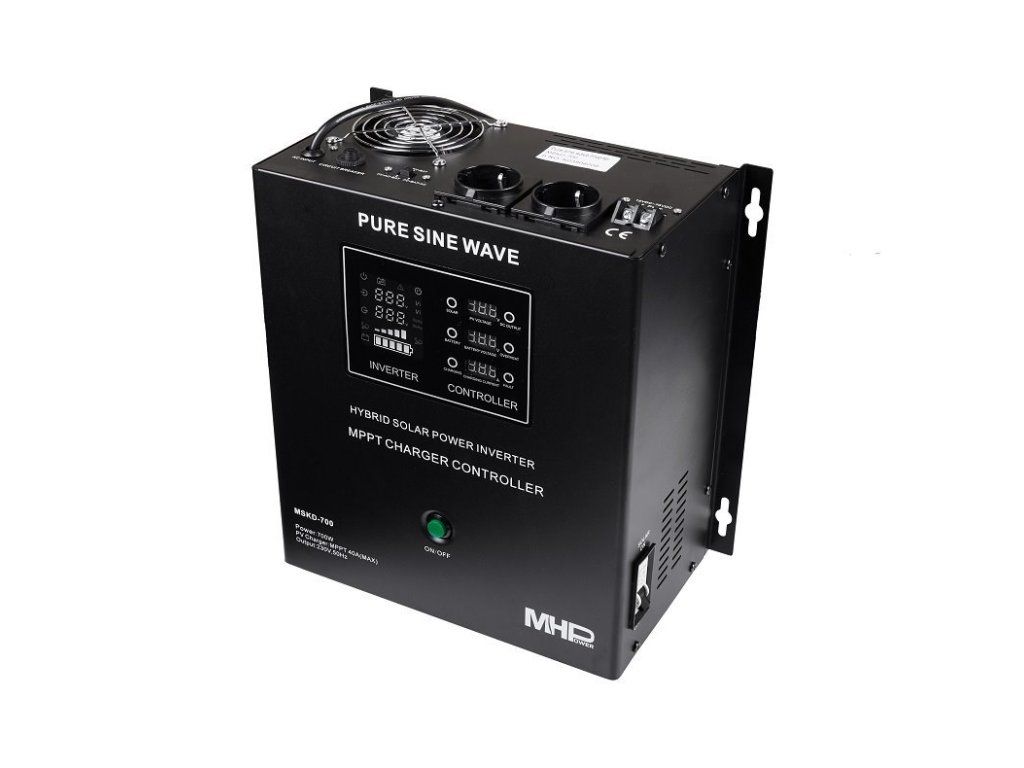

MHPower MSKD-1200-12, UPS, 1200W, pure sine, 12V, solar controller MPPT

Product detailed description

MHPower MSKD-1200-12, UPS, 1200W, pure sine, 12V, solar controller MPPT

This sine wave power supply is used to power electrical equipment requiring 230V AC voltage.
When electricity is supplied, the connected appliances are fed directly from the mains. A spare power supply, an external battery is recharged.
When the power supply is interrupted, the battery operation is switched over. After restoration, the battery is automatically recharged and the appliance is powered from the mains. Everything is clearly indicated on the large display.
At the same time, the battery can be recharged from the solar panels using the built-in MPPT solar controller.

The device cannot be operated without batteries connected.

The backup power supply has a pure sinusoid. It reacts very safely and flexibly to overload, overvoltage, overcharging or increased temperature. It is suitable for long-term power supply of all kinds of appliances.
All the most important parameters are displayed on the colour LCD display. It has an acoustic alarm. The integrated charger with max. 10A power takes care of the battery and keeps it in a ready state.

WARNING: There is no backup battery inside the backup power supply. In order for this backup power supply to perform its function, you must purchase an external battery, which is not included. Without this external battery, the device is unable to operate.

Please read our article carefully before buying a voltage converter:
How to choose the right voltage converter?

Product Description:

- A pure sine wave output signal that makes the power supply usable for circulators, controllers, computers, servers, automatic gates.
For lighting, heat pumps, household appliances, refrigerators, televisions, ventilation, fire systems, etc.
- Design based on an efficient toroidal transformer.
- Dual control of the main processor, high performance.
- MPPT solar charger (controller) with very high efficiency.
- Wide input frequency range , automatic detection 50/60 Hz.
- Intelligent switching between power priorities for better performance and lower power loss.
- Full range of protection and alarms: overload, short circuit, overvoltage, undervoltage and thermal protection.
- Robust all-metal design.
- A very clear display that provides an overview of the most important functions for the inverter and the controller separately.
Supported batteries: GEL, AGM, classic flooded
Not supported batteries: Li-on, Li-Pol, LiFePO, etc.

Technical parameters:

Product ID: MSKD-1200-12
Rated power: 1200W
Operating mode: (PV-->BAT-->AC) / (AC-->PV-->BAT) / (PV-->AC-->BAT)
Battery voltage: 12V
Panel indicator, light: graphic colour LED display

PV (Photovoltaics)
Input voltage range: 15V-75V
Max. charging current: 60A

Max. PV power: 720W
Max. conversion efficiency: 98%

AC Main status
Input voltage range:140V - 275V
Frequency: 45-65 Hz
Output voltage range: 195V-240V
Charging current: 20A
Network overload: warning until load reduction

Inverter mode output
Inverter output voltage: 220V+-3%
Output frequency: 50Hz/60Hz adaptive
Output power factor: >=0.8

Switching time to backup: less than 4ms
Cooling system: Yes, fans

Physical characteristics:
Relative humidity 10% RH ~ 90% RH, non-condensing
Operating temperature 0~40°C
Storage temperature: -15 - 45°C
Inverter dimensions: 352 x 302 x 156 mm
Mounting: on the wall, mounting dowels and screws included.
Weight: 10 kg
Coverage of the hall. power supply protection
Power supply cable to the power supply. socket: approx. 0,75 m
Battery cable: approx. 0,95 m
