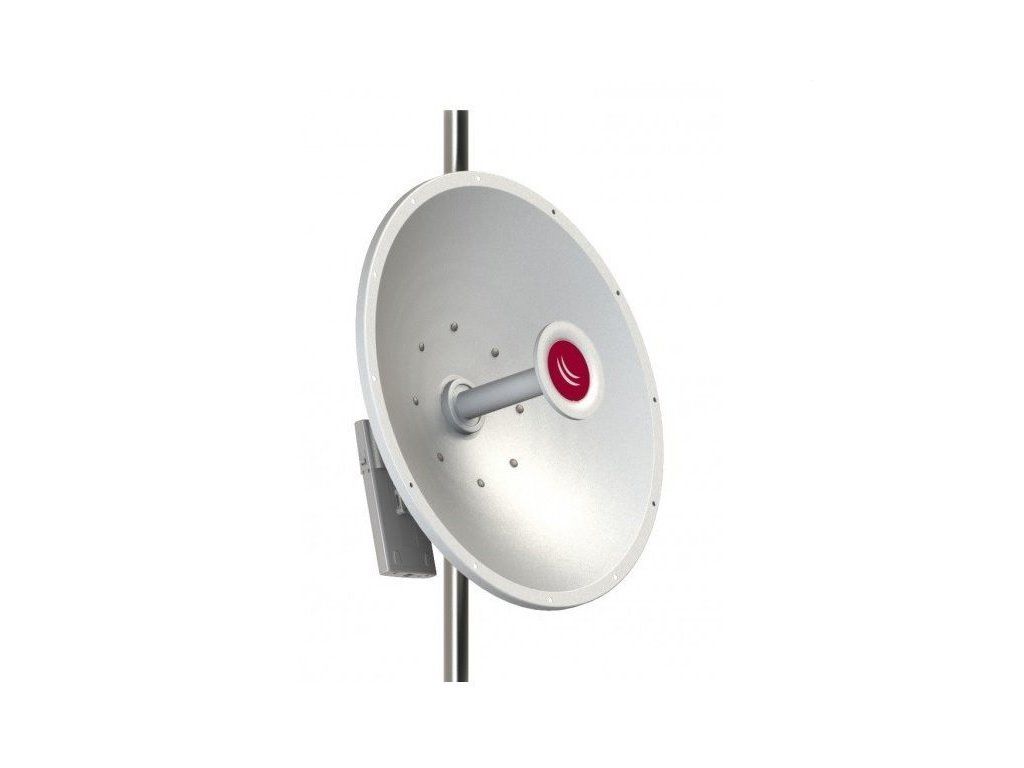

MikroTik MTAD-5G-30D3-PA - BRAND NEW, mANT30, 30dBi Dual 5GHz Parabolic Antenna, 2x RPSMA, precision grip

Product detailed description

This antenna is new and fully functional, only tested and unpacked. Damaged by shipping, sold with 12 months warranty. All clean, unscratched, the defect is only the BENDED LEM, the EDGE of the dish, more last 2 PHOTOS. The product is sold with complete accessories and in the original box.

the mANT30 is a professional parabolic antenna operating in the 5 GHz band with a gain of 30dBi, built to the highest industry standards. The antenna has been designed to fit Basebox products without major problems. The FlexCable included in the package is used to connect the antenna to the unit. Compared to the standard model, the antenna incorporates an improved mount up to 100mm pipe diameter with fine adjustment of +/- 15° tilt.

Technical parameters:

Wireless features
Isolation between connectors [dB]:   40
MIMO, SISO:   2 x 2, 2 x 2 (slant)
Polarization:   VH, VH (slant)
Forward ratio [dB]:   30
VSWR:   < 1.4
Wireless frequencies:   5 GHz
Radiation angle - H. pol. [°]:   3
Radiation angle - V. pol. [°]:   3
Antenna type:   Directional
Antenna gain [dBi]:   30


Physical characteristics
Antenna design:   Parabolic
Wind resistance [km/h]:   201
Designed for mast diameter [mm]:   30 to 100
Application:   Outdoor
Material:   Aluminium
Weight [kg]:   5,7
Depth [mm]:   450
Width [mm]:   700
Height [mm]:   700


Connectors and interfaces
RF connectors:   (2) RSMA female


Included in the package is 2x FlexGuide RF cable (rSMA-male to rSMA-male), mounting bracket for installation of BR912UAG-XHPnD (BaseBOX), bracket for mounting on a mast with a diameter of 3 to 10 cm. Basebox shown is not included.

Compared to the MTAD-5G-30D3 version, the antenna is equipped with a more robust mount suitable for adverse weather conditions.
