MikroTik RouterBOARD RBwAPR-2nD&R11e-LR2, wAP LoRa2 kit

Product detailed description

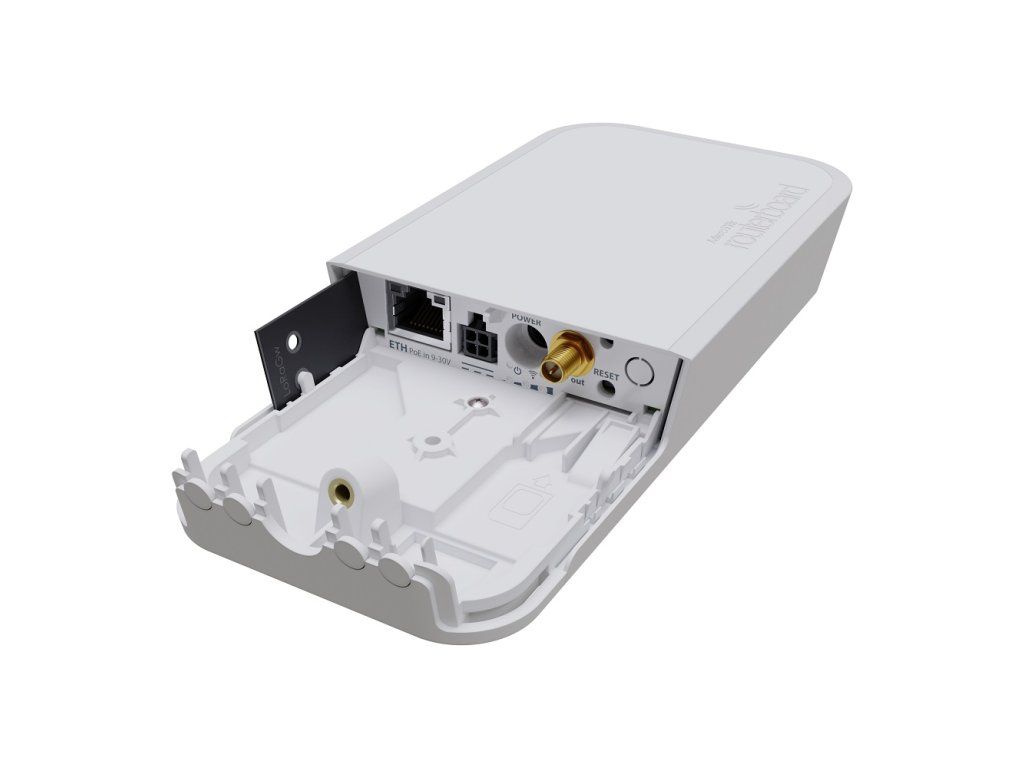

wAP LoRa2 is a complete out-of-the-box solution for use as a gateway to the LoRaWAN. The device includes a pre-installed R11e-LR2 module for forwarding UDP packets to any public or private LoRa server, 1 RJ45 Ethernet port, as well as a 2.4GHz wireless card for building an access point. All in the familiar wAP design for outdoor wall or mast mounting. The device has a built-in antenna with 4.7 dBi gain for connection to the LoRa network. You can also connect an external antenna via an SMA connector for greater distance. This gateway also operates at 2.4 GHz for LoRa®, which means significantly higher bandwidth, faster data rates and shorter transmission times. And thanks to Chirp modulation technology, it does not interfere with the 2.4 GHz WLAN signal! The ideal solution for industrial assemblies with high sensor density. What is LoRa good for? LoRa is a solution for wireless data transmission where the main goal is to consume as little power as possible at a low acquisition cost and a small data rate is sufficient. MikroTik LoRa products are ready (not only) for The Things Network global network - a well-known open source infrastructure that provides LoRa network coverage and thousands of useful applications. With the help of The Things Network, you can get started with the Internet of Things in a single day. You can also easily upgrade to The Things Industries enterprise solution. Package contents - Device - Mounting bracket - PoE injector - Power Adapter 24V/0.8A - Plastic stand - Metal pull-tab - 35cm 4pin cable Technical parameters Wireless Features Wireless Frequencies: 2.4 GHz LoRa, 2.4 GHz WiFi standards: 802.11n, 802.11b/g Transmission speed - 2.4GHz [Mbps]: 300 2.4GHz transmit power [dBm]: 22 2.4GHz MIMO: 2 x 2 Antenna Type: Built-in Number of built-in antennas: 1 Antenna Gain [dBi]: 2 Connectors and interfaces RF connectors: (1) SMA female LAN speed: (1) 10/100Mbps Power Power supply via PoE: 9 .. 30V DC PoE types: PoE-In (only) Max. power consumption [W]: 8 Power supply via connector/socket: 9 .. 30V DC Physical characteristics Design: Ceiling-mounted, Outdoor Buttons: Reset Operating temperature [°C]: -40 to 60 Width [mm]: 85 Height [mm]: 185 Depth [mm]: 30 Hardware CPU: QCA9531 CPU frequency [MHz]: 650 Number of CPU cores: 1 Internal storage [MB]: 16 RAM [MB]: 64 Software Operating System: RouterOS - L4 Default IP address: 192.168.88.1 Default username and password: admin / -
