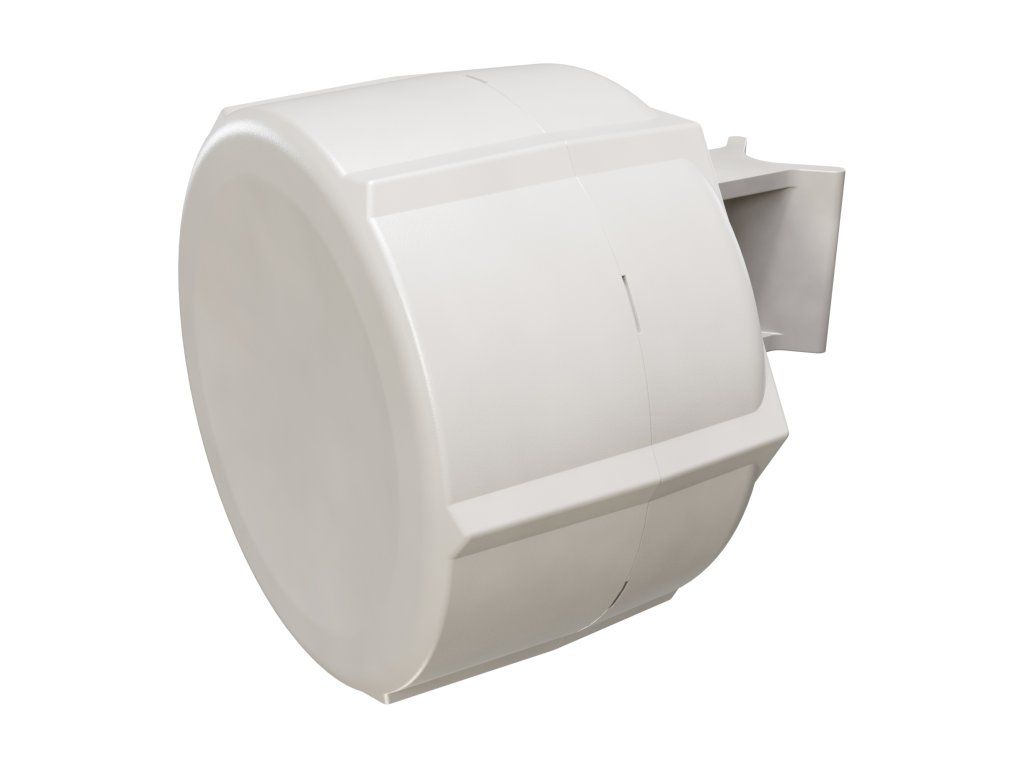

MikroTik RouterBOARD SXTR&FG621-EA

Product detailed description

The SXT LTE6 kit comes bundled with the new low-cost LTE6 modem FG621-EA, which helps bring the price of the device down. The LTE6 modem achieves download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps and features 2 micro SIM slots for backup connectivity in the event of a single carrier outage. The perfect choice for remote locations that are covered by a cellular network. With a professional LTE chip and built-in high gain antenna, the device can provide connectivity for your home even where mobile phones have weak and insufficient signal. The unit has 2 LAN ports with PoE-in on LAN1 and PoE-out on LAN2 allowing you to connect and power other devices to extend your network or security camera. The unit comes with a 24V power supply, but supports power in the 12V-57V range and is compatible with 802.3af/at active power. The output voltage on LAN2 is the same as the input voltage. Key Features - Lower price due to new LTE6 modem - B28, 700 MHz band support - (2) LAN port - PoE-in and PoE-out Package contents - Device - 24V 1.2A power adapter - PoE injector - Metal pull-tab - Plastic holder Technical parameters Wireless Features Elevation angle (-6dB) [°]: 60 Beam angle in azimuth plane (-6dB) [°]: 60 Antenna type: Built-in Number of built-in antennas: 2 Antenna gain [dBi]: 9 Integrated 4G/LTE radio part: Yes Supported 4G/LTE channels: (1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz Connectors and interfaces LAN speed: (2) 10/100Mbps SIM card slot: Yes Number of SIM slots: 2 Power supply Power supply via PoE: 802.3af, 802.3at, 12 .. 57V DC Power Type PoE types: PoE-Out + PoE-In Number of PoE Out ports: 1 Max. power consumption [W]: 22 Physical characteristics Design: Outdoor Buttons: Reset Operating temperature [°C]: -40 to 60 Width [mm]: 140 Height [mm]: 140 Depth [mm]: 56 Hardware CPU: QCA9531 CPU frequency [MHz]: 650 Number of CPU cores: 1 Internal storage [MB]: 16 RAM [MB]: 64 Software Operating Mode: 3G/4G Router Operating System: RouterOS - L3 Default username and password: admin / -
