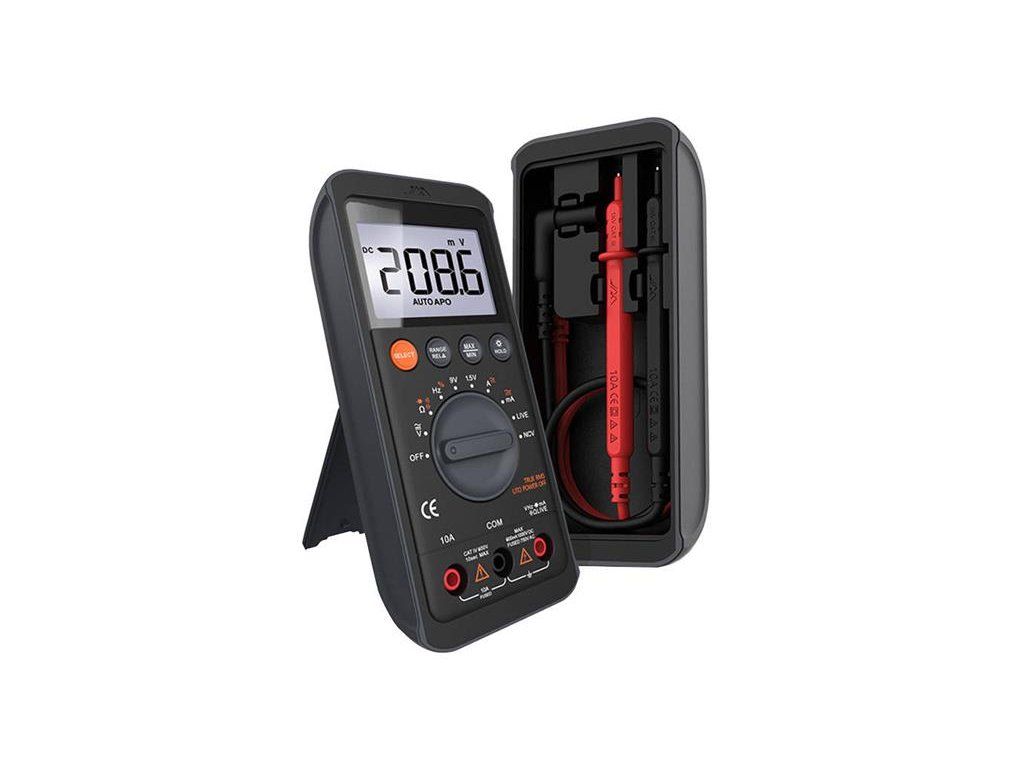

Multimeter JIMI HOME JM-G3401

Product detailed description

The JIMI Home JM-G3401 is a multifunctional device that you can use when working with electricity. You can use it to measure voltage, resistance, capacitance, frequency, real effective value and much more. It features a display, a large dial and buttons for convenient operation.

Precise measurement
The JIMI Home digital universal multimeter stands out for its extraordinary accuracy. Thanks to its sophisticated design, you will accurately measure the true effective value regardless of conditions. In addition, it automatically changes the measuring range of AC/DC voltage, current, resistance, etc., and thus refines the measurement. In addition, it offers non-contact voltage (NCV) detection and under voltage test.

Other options
The JIMI Home JM-G3401 also allows you to measure the battery voltage - just attach the black (-) and red (+) wires to the battery. In addition, it is equipped with self-resetting fuses that reset in approximately 3-5 seconds in the event of a blown fuse. In addition, the LCD display will give you information about the operation of the device. The multimeter also has a display backlight function. To turn it on, hold down the HOLD button for 2 seconds.

Clever design
The JIMI Home digital multimeter is designed to be comfortable to use. The magnetic design allows the product to be attached to a metal surface for convenient use. The instrument also has a stand, for greater freedom. The cables are made of pure 10A copper and finished with heat-resistant plastic. Additionally, the product features a two-piece design that allows the cables to be stored at the same time and protects the display from scratches.

Automatically switches off
But the advantages of the JIMI Home JM-G3401 don't end there. The product has an automatic shut-off function if you don't use it for 15 minutes. After this time, it goes into sleep mode to save power. In addition, you can turn this function off at any time - just press the SELECT button and the word APO will appear on the screen.

Technical parameters:

DC voltage measurement range: 600mV/6V/60V/600V/1000V (±0.5%+3, 0.8%+10)
AC voltage measurement range: 500mV/6V/60V/600V750V (±0.8%+3, 1.2%+10)
DC current measurement range: 60 mA/400 mA/6 A/10 A (±1.2% + 10, 2.0% + 10)
AC current measurement range: 60 mA/400 mA/6 A/10 A (±1.2%+10, 2.0%+10)
Resistance measurement range: 600 ꭥ/6,000/60,000/600,000/60,000/60,000/60,000 (±0.8%+5, 0.8%+3, 2.5%+3)
Capacitance measurement range: 60nF/600nF/6µF/60µF/600µF/6mF/60mF (±5.5% +20, 5.0% +3)
Frequency measurement range: 10 Hz/100 Hz/1 kHz/10 kHz/10 kHz/100 kHz/1 MHz/10 MHz
Temperature (°C/°F): 0 °C ~ 40 °C
Testing diodes
NCV: No
Live test: No
On/Off test: No
Display: LCD
Actual effective value: No
Self-recovery insurance: no
Sampling rate: 3 times per second
Automatic power off: Yes, 15 minutes.
Low voltage indicator: No
Lighting: no
Data storage: No
Number of counts: 5999
Overload indicator: OL
Power: 2x 1.5V AAA battery
Weight: 340 g (including batteries)
Dimensions: 153 × 70 × 53 mm

Contents of the package:

Digital Universal Multimeter
Test leads
Operating Instructions
