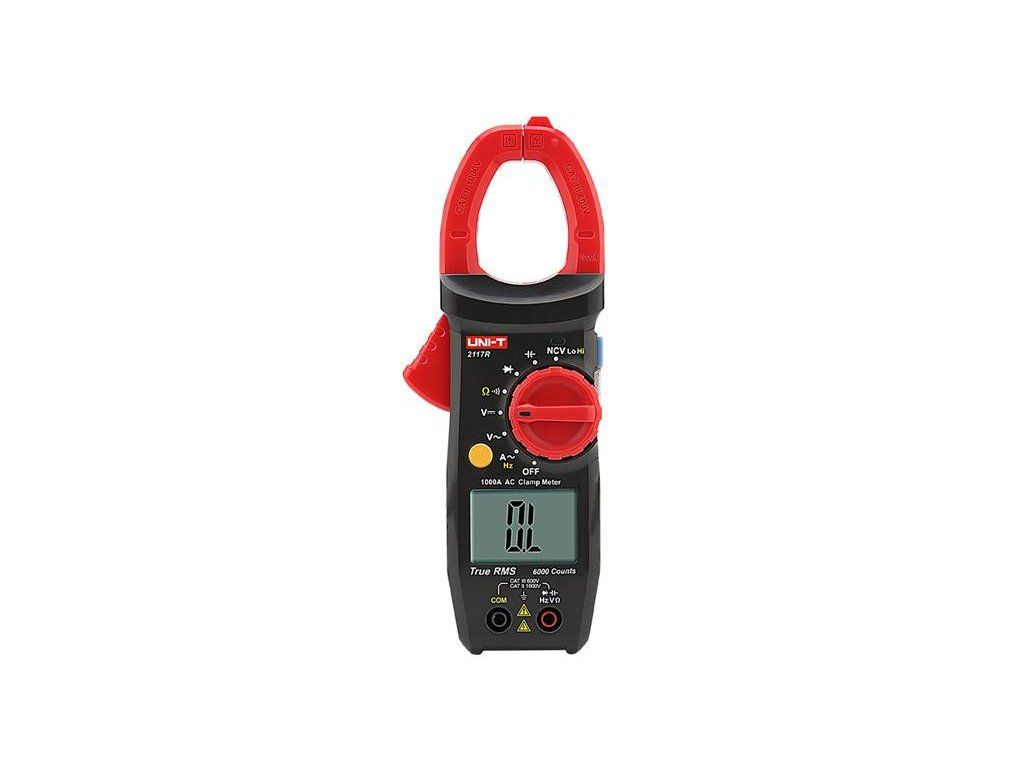

Multimeter UNI-T 2117R clamp-on

Product detailed description

We offer a 3-year warranty on this product.

The UNI-T 2117R True RMS 1000A clamp-on multimeter is a great choice for AC current measurement. It features 1000V AC/DC voltage measurement, 60MΩ resistance measurement and bright backlighting. Dual NCV allows users to detect live voltage without contact. The multimeter is CE/UKCA approved and has a CAT II 1000V/CAT III 600V safety class with 1000V overload protection.


Product parameters:

- True RMS
- 1000A AC current measurement
- 1000V AC/DC voltage measurement
- large LCD with backlight
- aCA frequency measurement: 20H～10kHz
- 1000V overload protection
- NCV (high/low dual mode)


Technical parameters:

- aC current measurement (A): 1000 A ±(1.5%+4)
- aC frequency (Hz): 20Hz - 10kHz ±(1.0%+5)
- aC voltage (V): 1000 V ±(1.0%+2)
- dC voltage measurement (V): 1000 V ±(0.7%+3)
- resistance (Ω): 60MΩ ±(0.8%+2)
- capacitance (F) 6mF ±(4%+5)
- display reading: 6000
- jaw opening: 33 mm
- True RMS
- automatic range
- diode test
- NCV
- Data hold
- LCD backlight
- automatic switch-off: approx. 15 minutes
- low battery indication ≤2.5V approximately
- access protection
- power supply: 2 x AAA 1.5 V (LR03)
- product weight: 210 g
- dimension: 204 x 63 x 38 mm
