Multimeter UNI-T UT116C

Product detailed description

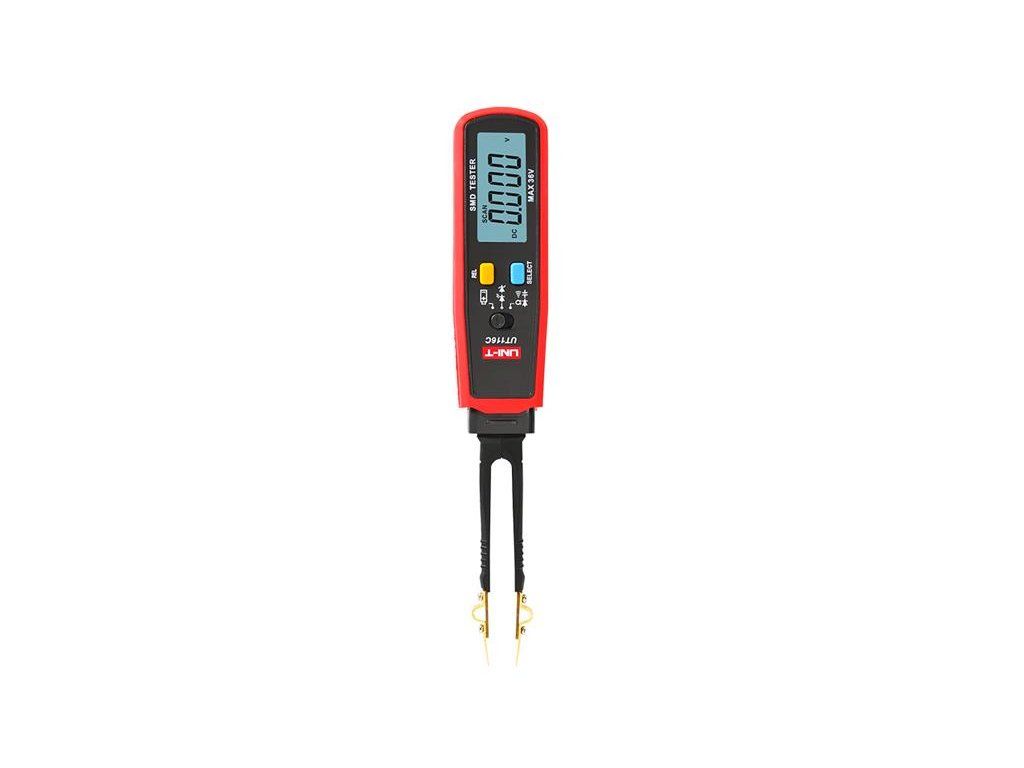

Multimeter UNI-T UT116C
We offer a 3-year warranty on this product. The UT116C tester is a surface mount SMD electronic component testing device. On the four-digit display with a range of 6000, it is possible to display resistance up to 60MΩ, capacitance up to 60mF, it is also possible to perform diode test, also Zener, and also circuit continuity test with signaling resistance less than 50Ω.

Product Parameters :

- measurement of resistance, circuit continuity, capacitance, diodes
- pen can be rotated 180° against the nib, which is convenient for reading the display when measuring diodes/LEDs
- zener diode polarity test
- weak battery test
- automatic shutdown after 15 minutes of inactivity

Technical parameters :

- display range : 6000
- automatic range switching
- resistance measurement up to : 60MΩ
- circuit continuity test : <50Ω
- capacitance measurements up to : 100 mF
- diode test : 3.2V
- lED test : stabilized voltage approx. 21 V / 1 mA
- battery testing at 10mA load current
- power supply : 1.5 V batteries (AAA) x 2pcs
- display dimensions : 39 mm x 20 mm
- outer dimensions : 204 mm x 33 mm x 25 mm
- product weight : approx. 80 g
- product colour : red and grey


Contents of the individual package :

- uT116C tester : 1pc
- batteries 1,5V (AAA) : 2pcs
- slovak, Czech and English manual
- gift box


Packaging for wholesalers :

- standard quantity per carton : 60pcs
- standard carton dimensions : 440 mm x 420 mm x 210 mm
- gross weight of carton : approx. 7.1 kg


MANUFACTURER: UNI-TREND
https://www.uni-trend.com/
