Multimeter UNI-T UT131C

Product detailed description

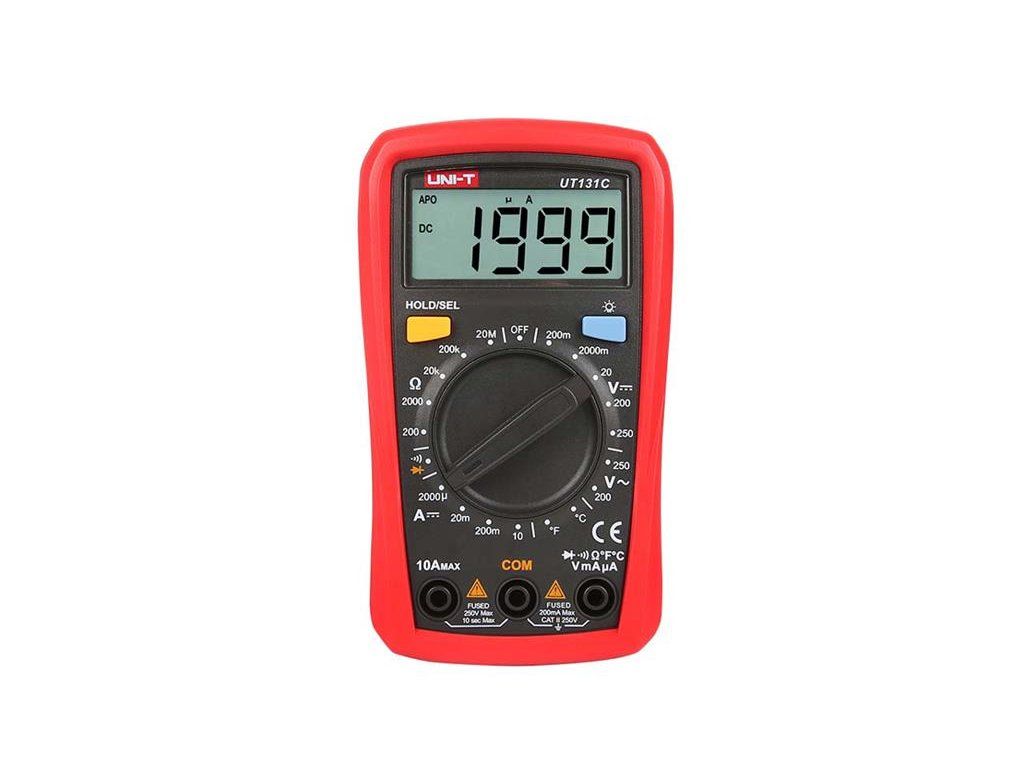

Multimeter UNI-T UT131C
We offer a 3-year warranty on this product.

UT131C with temperature measurement

The new generation of UT131 series multimeters offers a higher standard of measurement in the more affordable digital multimeter category. The innovative and industrial design ensures the multimeter is shock and drop resistant from up to two metres. The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option. UT131 series multimeters guarantee safe handling and measurements according to CAT II standard.

Multimeter function:

AC voltage measurement (AC) - 200 V / 250 V
DC voltage measurement (DC) - 200 mV / 250 V
DC current measurement (DC) - 200.0 uA / 10.00 A
Resistance measurement - 200.0 Ω / 20.0 MΩ
Temperature measurement -40°C to +250°C
Line continuity test (buzzer)
Diode test
Manual range selection
Reverse polarity detection
Data hold function
Backlit display
Automatic shutdown after 15 min. of inactivity
Measuring cables and K-type thermocouple included
Low battery indication
Overload protection, fuse protection

Technical parameters :

AC voltage measurement (range, resolution, accuracy) :
200.00 V / 0.1 V / ± 1.2 % + 3
250 V / 1 V / ± 1.2% + 3

DC voltage measurement (range, resolution, accuracy) :
200 mV / 0.1 mV / ± 0.7% + 3
2000 mV / 1 mV / ± 0.5 % + 2
20.00 V / 0.01 V / ± 0.7 % + 3
200.0 V / 0.1 V / ± 0.7 % + 3
250 V / 1 V / ± 0.7 % + 3

DC current measurement (range, resolution, accuracy) :
2000.0 μA / 1 μA / ± 1.0 % + 2
20.0 mA / 0.01 mA / ± 1.0 % + 2
200.0 mA / 0.1 mA / ± 1.0 % + 2
10.00 A / 0.01 A / ± 1.2 % + 5

Resistance measurement (range, resolution, accuracy) :
200.0 Ω / 0.1 Ω / ± 1.0 % + 2
2000 Ω / 1 Ω / ± 0.8 % + 2
20.00 kΩ / 0.01 kΩ / ± 0.8% + 2
200.0 kΩ / 0.1 kΩ / ± 0.8% + 2
20.00 MΩ / 0.01 MΩ / ±1.2% + 3

The device complies with IEC 61010-1, IEC 61010-2-030, CAT II standards
Dimensions (mm): 134 x 77 x 47
Power: 2 x AAA 1.5 V batteries (included)
Weight: approx. 206 g (including batteries)
Working temperature: 0 - 40 ° C
