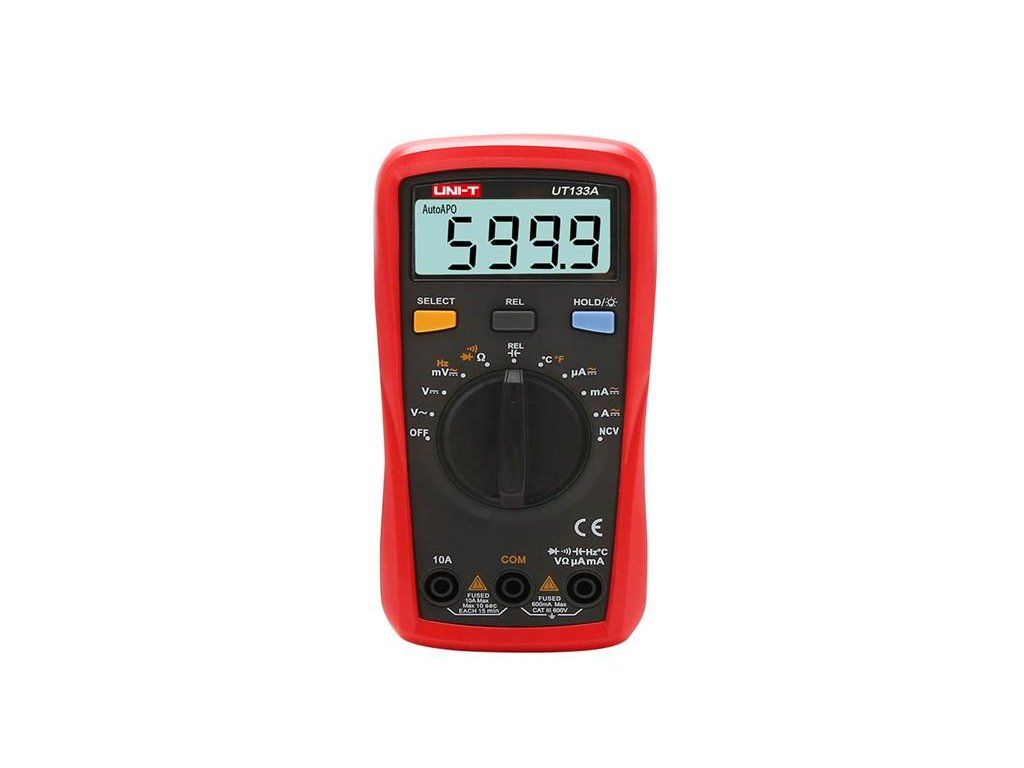

Multimeter UNI-T UT133A

Product detailed description

Multimeter UNI-T UT133A
We offer a 3-year warranty on this product.

UT133A with capacitance, frequency, temperature measurement and auto range

The new generation of UT133 series multimeters offers a higher standard of measurement in a more affordable digital multimeter category. The innovative and industrial design ensures the multimeter is shock and drop resistant from up to two meters. The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option.

Multimeter function:

AC voltage measurement (AC) - 600 V
AC current measurement - 10 A
DC voltage measurement (DC) - 600 mV / 600 V
DC current measurement (DC) - 600 uA / 10 A
Resistance measurement - 600 Ω / 60 MOhm
Capacitor Capacitance Measurement - 9,999 nF / 9,999 mF
Frequency measurement - 10Hz -1.000MHz
Temperature measurement: -40°C -1000°C
Line continuity test (buzzer)
Diode test
Automatic range selection
NCV measurement
Reverse polarity detection
Data hold function
Backlit display
Automatic shutdown when idle
Measuring cables, temperature probe (K-type) included
Low battery indication
Overload protection, fuse protection

Technical parameters:

AC voltage measurement (range, resolution, accuracy):
600.0 mV / 0.1 mV / ± (1.0% + 2)
6.000 V / 6000mV // 0.001 V / 1mV // ± (0.7% + 3)
60.00 V / 0.01 V / ± (1.0% + 2)
600.0 V / 0.1 V / ± (1.2% + 3)

AC current measurement (range, resolution, accuracy):
600.0 uA / 0.1 uA / ± (1.2% + 3)
6000 uA / 1 uA / ± (1.2% + 3)
60.00 mA / 0.01 mA / ± (1.2% + 3)
600.0 mA / 0.1 mA / ± (1.2% + 3)
6.00 A / 0.001 A / ± (1.5% + 5)
10.00 A / 0.01 A / ± (1.5% + 5)

DC voltage measurement (range, resolution, accuracy):
600.0 mV / 0.1 mV / ± (0.7% + 3)
6.000 V / 6000mV // 0.001V / 1 mV // ± (0.5% + 2)
60.00 V / 0.01 V / ± (0.7% + 3)
600.0 V / 0.1 V / ± (0.7% + 3)

DC current measurement (range, resolution, accuracy):
600.0 uA / 0.1 uA / ± (1.0% + 3)
6000 uA / 1 uA / ± (1.0% + 3)
60.00 mA / 0.01 mA / ± (1.0% + 3)
600.0 mA / 0.1 mA / ± (1.0% + 3)
6 A / 0.001 A / ± (1.2% + 5)
10.00 A / 0.01 A / ± (1.2% + 5)

Resistivity measurement (range, resolution, accuracy):
600.0 Ω / 0.1 Ω / ± (1.0% + 2)
6.000K Ω / 6000 Ω // 0.1km Ω / 1Ω // ± (0.8% + 2)
60.00 kOhm / 0.01 kOhm / ± (0.8% + 2)
600.0 kOhm / 0.1 kOhm / ± (0.8% + 2)
60.00 MOhm / 0.01 MOhm / ± (2% + 5)

Capacitor capacitance measurement (range, resolution, accuracy):
9.999 nF / 0.001 nF / at REL mode ±(4% + 10)
99.99 nF / 0.01 nF / ± (4% + 5)
999.9 nF / 0.1 nF / ± (4% + 5)
9.999 mF / 0.001 mF / ± (4% + 5)
99.99 mF / 0.01 mF / ± (4% 5)
999.9 mF / 0.1 mF / ± (4% + 5)
9.999 mF / 0.001 mF / ± (10%)

Frequency measurement:
10.00Hz ~ 1.000MHz ± (0.1% + 5)

Temperature measurement (range, resolution, accuracy):
-40°C ~ 1000°C / 1°C / ±(1%+4)
-40°F ~ 1832°F / 1°F / ±(1.5% + 5)

Dimensions (mm): 76,5 x 155 x 49
Power: 2 x AAA 1.5 V batteries (included)
Weight: approx. 255 g (including batteries)
Working temperature: 0 - 40 ° C
Standard accessories: instructions, measuring tips, K-type thermocouple
