Multimeter UNI-T UT139S

Product detailed description

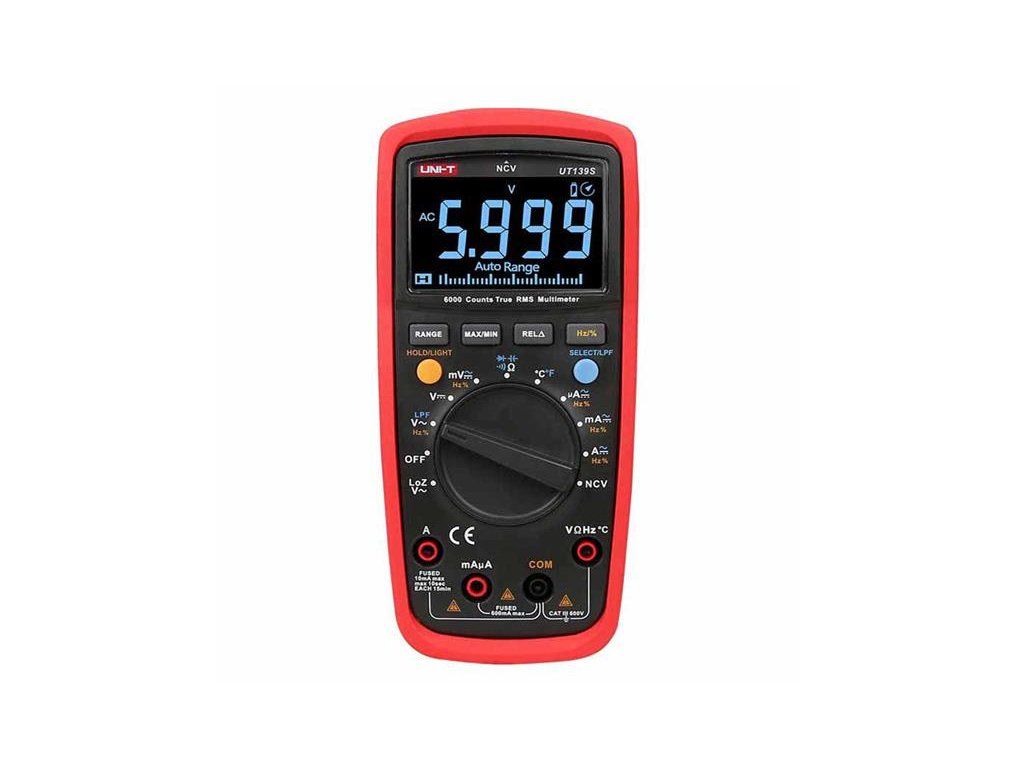

Multimeter UNI-T UT139S
We offer a 3-year warranty on this product.

The UT139S is a new professional True RMS rated multimeter with CAT III 600V protection, designed to meet the needs of electricians for the measurement of LV distribution networks in buildings with a black EBTN display. The instrument complies with cETLus certification and includes a number of superior functions such as low impedance voltage (LoZ) measurement, non-contact voltage (NCV) measurement, capacitor capacitance measurement or even temperature measurement. The clear display with 31-segment analogue line simulation ensures a more perfect display of the measured values and a better visual representation. The data on the display is light on a dark background, unlike the UT139E, which has dark data on a light background, otherwise the two instruments are exactly the same. The display range is ±9.999 for capacitance and frequency measurements and ±5.999 for other measurements. The refresh rate is 2 to 3 times per second. Fusing of the current ranges is accomplished by tubular fuses (10A range by FF 10A H/600V fuse (6 x 25mm); mA/µA range by FF 600mA H/600V fuse (6 x 32mm)). The power supply of the multimeter is provided by two AA 1.5V alkaline batteries. The range of measurement quantities can be selected automatically, also manually. Included in the package are measuring cables with tips, thermo probe with K-cell and also batteries.

The UT139S is the ideal choice if you want a professionally equipped multimeter with a range of superior features that is also accurate, clear, safe and very easy to use.


Product Parameters (Multimeter Function) :

- true RMS measurement (the instrument measures the effective value of AC current and voltage)
- measurement range AC voltage (AC) : 60 mV / 600 V
- aC current (AC) measurement range : 600 uA / 10 A
- dC voltage measurement range (DC) : 60 mV / 600 V
- dC current measurement range (DC) : 600 uA / 10 A
- resistance measurement range : 600 Ω / 60 MΩ
- capacitor capacitance measurement range : 9.999 nF / 99.99 mF
- relative capacitance measurement mode (REL)
- analogue line
- wiring continuity test (buzzer)
- diode test
- non-contact voltage measurement (NCV)
- variable frequency alternating voltage (LPF VAC) measurement
- low impedance AC voltage measurement (LoZ VAC)
- (DCL)
- automatic and manual range selection
- reverse polarity detection
- data hold function
- minimum and maximum value display
- display backlight
- automatic shutdown when idle
- low battery indication
- overload protection, fuse protection


Technical parameters :
- DC voltage measurement (input impedance according to the range of 3 to approx. 10MΩ):
       ( range / resolution / accuracy )
60.00 mV / 0.01mV / ±0.7% + 3
600.0 mV / 0.1 mV / ± 0.5 % + 2
6.000 V / 1 mV / ± 0.7 % + 3
60.00 V / 0.01 V / ± 0.7 % + 3
600.0 V / 0.1 V / ± 0.7 % + 3


- AC voltage measurement ( input impedance approx. 10MΩ ) :
( range / resolution / accuracy )
60.00 mV / 0.01 mV / ± 1.0 % + 3
600.0 mV / 0.1 mV / ± 1.0 % + 3
6.000 V / 0.001 V / ± 0.8% + 3
60.00 V / 0.01 V / ± 0.8% + 3
600.0 V / 0.1 V / ± 0.8 % + 3
LPF 600.0 V / 0.1 V / ± 4.0 % + 3
LoZ 600.0 V / 0.1 V / ± 2.0 % + 10


- DC current measurement :
( range / resolution / accuracy )
600.0 μA / 0.1 μA / ± 0.7 % + 2
6000 μA / 1 μA / ± 0.7% + 2
60.00 mA / 0.01 mA / ± 0.7 % + 2
600.0 mA / 0.1 mA / ± 0.7 % + 2
6.000 A / 0.001 A / ± 1.0 % + 3
10.00 A / 0.01 A / ± 1.0 % + 3


- AC current measurement :
( range / resolution / accuracy )
600.0 μA / 0.1 μA / ± 1.0 % + 3
6000 μA / 1 μA / ± 1.0% + 3
60.00 mA / 0.01 mA / ± 1.0 % + 3
600.0 mA / 0.1 mA / ± 1.0 % + 3
6.000 A / 0.001 A / ± 1.2 % + 3
10.00 A / 0.01 A / ± 1.2 % + 3


- Resistance measurement :
( range / resolution / accuracy )
600.0 Ω / 0.1 Ω / ± 1.0 % + 2
6.000 kΩ / 0.001 kΩ / ± 0.8% + 2
60.00 kΩ / 0.01 kΩ / ± 0.8% + 2
600.0 kΩ / 0.1 kΩ / ± 0.8% + 2
6.000 MΩ / 0.001 MΩ / ± 1.2% + 3
60.00 MΩ / 0.01 MΩ / ± 1.5% + 5


- Capacitance measurement of capacitors :
( range / resolution / accuracy )
9.999 nF / 0.001 nF / in REL mode ± 4% + 10
99.99 nF to 999.9 µF / 0.01 nF to 0.1 µF / ±4% + 10
9.999 mF to 99.99 mF / 0.001 mF to 0.01 mF / ±10%


- Measurement of frequency and alternans :
( range / resolution / accuracy )
9.999 Hz to 9.999 MHz / 0.001 Hz to 0.001 MHz / ± 0.1% + 4
0.1% to 99.9% / 0.1% / Reference only


- Temperature measurement in °C :
( range/resolution/accuracy)
- 40 to 40°C / 1°C / ± 4
> 40 to 500°C / 1°C / ± 1.0% + 4
> 500 to 1000°C / 1°C / ± 2.0% + 4


- Temperature measurement in °F :
( range / resolution / accuracy )
- 40 to 104°F / 1°F / ±5
> 104 to 932°F / 1°F / ± 1.5% + 5
> 932 to 1832°F / 1°F / ± 2.5% + 5

With the included thermocouple probe (type K cell), only temperatures up to a maximum of 250°C/482°F can be measured

- Display Type : LCD TN
- Display diagonal : 68 mm
- Sampling rate : 3 / s
- Number of digits : 6000
- Analog line : 31 segments
- Power supply : 2 x AA 1.5 V batteries
- Dimensions : 170 x 80 x 48 mm
- Drop resistance : 1 m
- Weight : approx. 354 g (including batteries)
- Working temperature : - 10 to 50 °C
- The instrument meets the standards of :
      cETLus, CAT III 600V, double insulated, overload protection 600V-PTC, pollution class II
     EN 61326-1:2013; EN 61326-2-2:2013
     EN 61010-1:2010; EN 61010-2-030:2010; EN 61010-2-033:2012
      Conforms to UL STD .:61010-1, 61010-2-030
      Certified by CSA STD. C22.2 Nos. 61010-1, 61010-2-030, 61010-2-033

- Manufacturer
- www.uni-t.cz


Contents of the package :

- multimeter UT139S with anti-shock plastic case
- batteries 2 x AA 1.5 V
- fuse F1: 6 x 32 mm FF 600 mA H 600 V (in the instrument)
- fuse F2: 6 x 25 mm FF 10 A H 600 V (in the instrument)
- k-cell thermocouple probe (included)
- test leads with spikes (included)
- instructions for use Czech, Slovak and English
