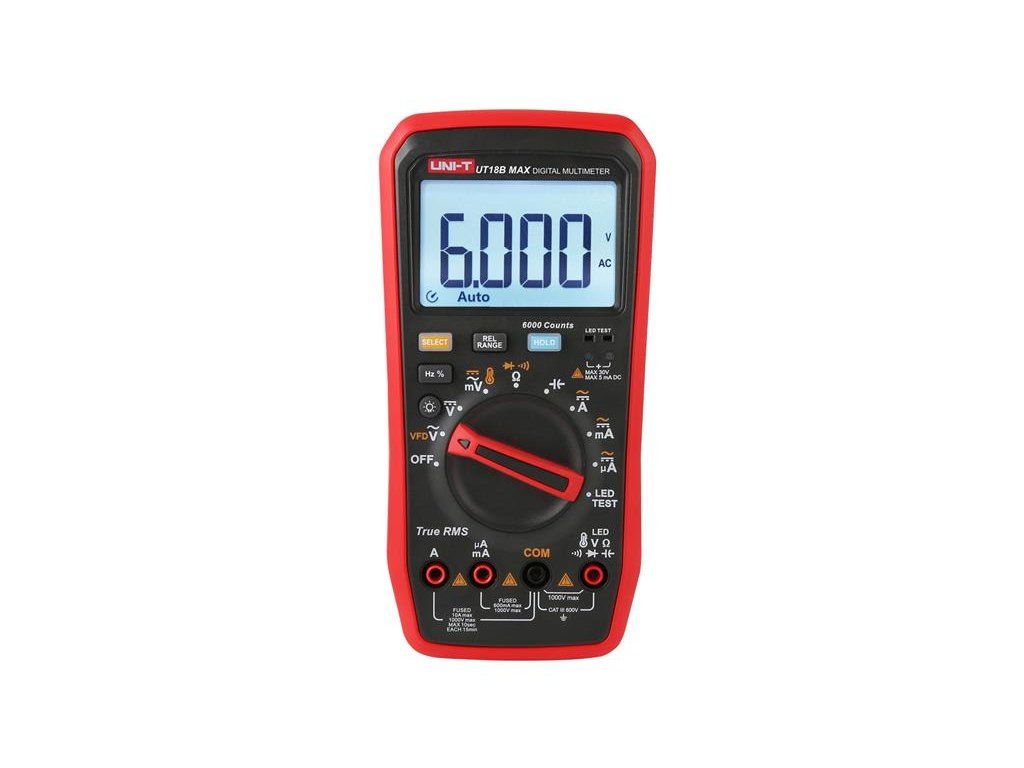

Multimeter UNI-T UT18B MAX

Product detailed description

We offer a 3-year warranty on this product.

Digital Multimeters UT18B MAX is a reliable True-RMS digital multimeter. The multimeter is designed to withstand interference and can filter out interference from carrier frequency overlaid sinusoidal or variable voltage distortion signals, and is capable of measuring the output voltage of a variable frequency drive. In the DC/AC voltage mode, the instrument can perform frequency and duty cycle measurement. The UT18B MAX has a temperature measurement function with a resolution of 0.1 C. The LED test function allows the UT18B MAX to test LEDs with voltages up to 12 V without the need to determine polarity.

The True RMS UT15B/17B/18B MAX Series multimeters feature a compact and portable design, fast response, strong EMC interference protection, and come with standard gold-plated test leads and gold-plated test leads with fine terminations.They also feature 1000V full-range input protection, making them an ideal tool for electronic and electrical engineering applications. CE, UKCA, cETLus, REACH, RoHS


Product parameters:

- large LCD display, analog-digital display with 6000 digits, refresh rate of fast ADC: 5 times per second
- built-in V.F.D for accurate measurement of distorted voltage and variable frequency voltage
- intelligent capacitance measurement allowing automatic exit from relative measurement mode when capacitance is above 6.2 μF in relative measurement mode
- full-featured false detection protection to withstand overvoltages up to 1000 V; designed with overvoltage and overcurrent indication
- designed with LED measurement function (output: 12 V) for automatic polarity identification
- the current input terminal is equipped with an audible and visual indication of incorrect connection
- two test probes (standard and fine tip)
- two backlight modes (high/low brightness).
- when switching the position in the current AC/DC position, the memory function is activated.


Technical parameters:

- dC voltage (DC) measurement ranges: 600 mV / 6 V / 60 V / 600 V / 1000 V ±(0.4%+3)
- aC voltage (AC) measurement ranges: 600 mV / 6 V / 60 V / 600 V / 1000 V ±(0.5%+5)
- VFD (voltage): 600 V ±(8%)
- aC current (AC) measurement ranges: 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 10 A ±(1.2%+3)
- dC current (DC) measurement ranges: 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 10 A ±(1.2%+3)
- resistor resistance measurement ranges: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ±(0.5%+2)
- frequency measurement range: 10 Hz to 10 MHz ±(0.1%+3)
- working cycle measurement range: 1% to 99.9% ±(1.0%+4)
- temperature measuring range: -55 °C to 500 °C
- HTN-type LCD display with a maximum display of 6000
- diode test
- mode: DATA HOLD
- relative measurement mode
- backlight (adjustable)
- setting ranges automatically or manually
- automatic shutdown (sleep when idle)
- low battery indication
- audible and visual alarm
- lED test
- faulty wiring alarm
- category:CATⅢ 600V
- power supply 2pcs R6 1,5V batteries
- weight: 455 g
- dimension: 182 mm x 91 mm x 45 mm
- accessories: 1 pcs user manual, 2 pairs of test leads (normal gold-plated probe and probe with fine tip), 1 pcs K-type thermocouple, 2 pcs batteries.
