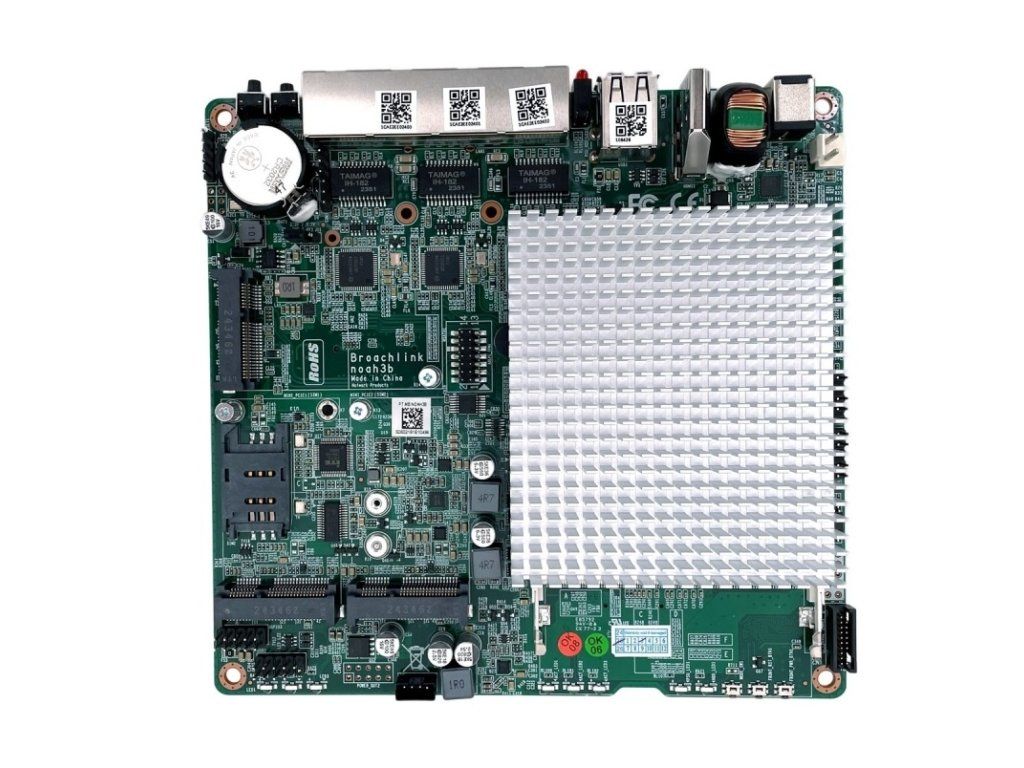

Noah3b Firewall Router Motherboard Intel E3845, 4 cores 1.91 GHz

Product detailed description

The Noah 3b motherboard (version 2025) is a modern and powerful solution building on the proven Noah3 platform, designed for demanding networking and industrial applications. It is built on the Intel E3845 processor with AES-NI support, four cores and a frequency of 1.91 GHz, ensuring high performance at low power consumption. With three gigabit LAN ports, three miniPCIe slots and memory support up to 8 GB, it is ideal for a firewall, router or security appliance. The new version adds expanded 4G/5G support, TPM, and software RAID capability with two mSATA drives. The Noah 3b is fanless hardware designed for 24/7 operation and is a full replacement for PC Engines' popular APU2 board. Noah 3b motherboard (version 2025) Intel E3845 AES-NI, 4 cores 1.91 GHz (memory up to 8 GB), 3LAN Gigabit, 3 miniPCIe, USB 2.0 Noah3 b is an evolution of the Noah3 motherboard for 2025. The improvements over Noah3 are as follows: - 4G/5G communication support with M.2 connector under the motherboard. - The ability to connect two mSATA drives, making it a fault-tolerant system with software RAID supported by FreeBSD, OPNsense, pfsense, Linux, etc. - Added a TPM connector to allow installation of a TPM for software that requires one, such as Windows 11. - Added support for a second 4G/LTE modem. - Replaced the Intel I211 network controller with the Intel I210AT, which greatly improves network speeds with four send/receive queues per port instead of two for the I211. Noah 3b is reliable and powerful fanless hardware for 24/7 devices and more. - Industrial environments (router, hardware controller, control panel interface, ...) - Telecommunications (router, IPBX, VoIP gateway, LTE, WiFi controller, etc.) - Network (firewall, router, aggregator, VPN server, NAS, video surveillance, ...)> - Security (VPN server, analyzer, packet inspector, ...) - IoT (gateway, concentrator, on-site controller, on-site analyzer, ...) - Prototyping (proof of concept, geek hobbyist, ...) Noah3b is a replacement alternative for the APU2 board from PC Engines. Noah3b was designed to facilitate the replacement of the PC Engines APU board. LED control and buttons in Linux Specifications: Processor System CPU: Intel Atom E3845 Core: 4 Frequency: 1.91GHz L2 Cache: 2MB BIOS: AMI 64 Mbits AES: AES-NI Memory Technology: DDR3L 1333MHz Max. Capacity: 8 GB (Should be installed in factory) Socket: 1 x 204 pin SODIMM Display HDMI Ethernet Interface: up to 3 Controller: Intel I210AT Connector: RJ45 WatchDog Timer Output: System reset Internal Watchdog Timer: (programmable 1-255s,1-255min, disable) Storage mSATA: 2 x full size mSATA Internal I/O Up to 3 Serial: 1 x RS-232, Ethernet: Up to 3 GbE HDMI: 1 Reset Button: 2 Power Button: 2 (For system wake) USB: 4 x USB2.0 GPIO: 24-bit GPIOs Expansion MINI_PCIE1 slot: mSATA, SIM and USB signal for (4G/LTE). MINI_PCIE2 slot: PCIe signal for Wifi, SIM and USB signal for (4G/LTE) . MSATA1 slot: mSATA / USB M2BEY5G : M.2 B-key 4G/5G Mux 2 x COM TTL (Transfer rate up to 1 Mbit/s) I2C Power Power input: 12V ±10% only Power Consumption (Typical,Minimum system) Noah with E3845: 0.5A @ 12V (5.28W) Power Consumption (Max, test in pfSense) Noah with E3845: 1A @ 12V (12W) Environment Operating 0 ~ 60° C (32 ~ 140° F) (Operating humidity: 40° C @ 95% RH non-condensing) Non-Operating -40° C ~ 85° C and 60° C @ 95% RH non-condensing Physical Characteristics Dimensions (L x W): 160 x 152.4 mm (6.3" x 6") Weight: 0.45 kg (0.99 lb) (with heatsink) Total Height: (with cooler + PCB + Bottom) 33mm
