Parking camera PEIYING PY0105N

Product detailed description

Parking camera PEIYING PY0105N

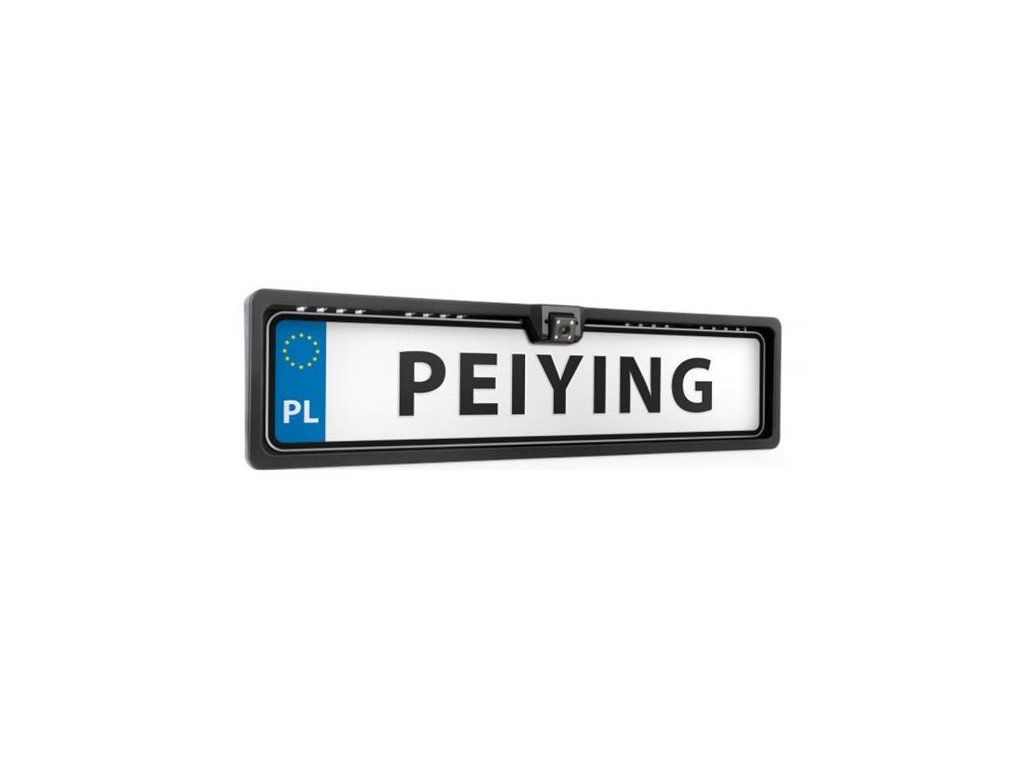

For safety and convenience when reversing, the Peiying rear camera with night vision in the license plate frame offers excellent visibility both day and night. Its advanced features and easy installation make it the perfect solution for any vehicle.

High image quality
The Peiying camera is equipped with 1 CMOS (colour) sensor and a resolution of 628x586 px, which provides a clear and detailed image. The 140° viewing angle provides wide coverage of the area behind the vehicle, which increases safety when manoeuvring. The minimum illumination of 0.3 lux and the night vision function, supported by 4 infrared LEDs, allow you to see clearly in low-light conditions even in complete darkness.

Functionality and ease of use
The camera automatically switches on when you put the car in reverse, making parking and reversing easier. Mirror reflection and guide lines with a range of 0.4 - 2 m help accurately estimate the distance to obstacles. The PAL TV system ensures compatibility with most vehicle screens.

Durability and resistance
The model features an IP67 rating, which guarantees water and dust resistance, and a wide range of operating temperatures (-20°C~50°C) and storage temperatures (-30°C~60°C), ensuring reliable operation in a variety of weather conditions. The camera is powered by 12 V and consumes a maximum of 1.5 W.

Technical parameters:

Auxiliary lines
Line reach: 0.4 - 2 m
TV system: PAL
Night vision function: yes
IR diodes: 4
Mirror image
Automatic switch-on when reversing
Mounting: rear of the vehicle
Protection class: IP67
Operating temperature: -20°C~50°C
Storage temperature: -30°C~60°C

Camera:
Sensor: 1 CMOS (colour)
Resolution: 628x586 px
Viewing angle: 140°
Min. illumination: 0.3 Lux
Video output: CVBS 1.0 V (pp) / 75 Ohm
Power consumption: max. 1.5 W
Power: 12 V; 100 mA

Included: camera in license plate frame, AV cable (6 m), power cord (0.8 m), user manual
