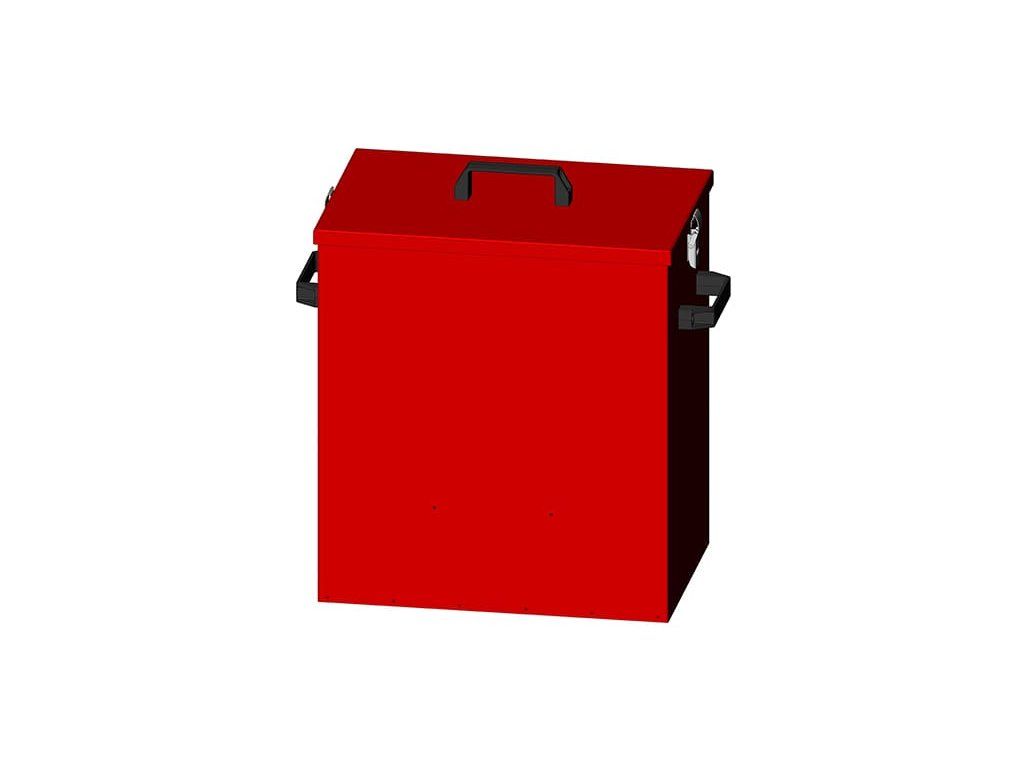

Ash Removal System S1068 for Atmos D80P Pellet Boiler
Code: S1068Product detailed description
Automatic ash removal systems are essential components in modern pellet boiler installations, particularly in systems where continuous operation and minimal manual intervention are required. These systems are commonly found in residential and commercial heating applications, where they help maintain boiler efficiency and reduce maintenance demands. Installers working with Atmos pellet boilers must ensure that ash removal systems are correctly selected and integrated to maintain system performance and longevity.
The S1068 ash removal system is specifically designed for use with the Atmos D80P pellet boiler. It is not a universal solution and must be paired with this model to ensure compatibility and optimal performance. The system is intended for installations where automatic ash handling is required, reducing the need for manual cleaning and ensuring consistent boiler operation.
Technical parameters
| Weight | 13.685 kg |
|---|---|
| Code | S1068 |
| Brand | Atmos |
Installation and connection
The S1068 ash removal system must be installed as part of the D80P pellet boiler setup. It connects directly to the boiler’s ash discharge point, which is designed for a screw diameter of 80 mm. Installers should verify that the boiler model is D80P before proceeding, as the system is not compatible with other models. The installation involves aligning the ash removal system with the boiler’s discharge mechanism and ensuring that the screw is correctly engaged. Common installation errors include misalignment of the screw or incorrect positioning of the system, which can lead to inefficient ash removal or mechanical failure.Compatibility and accessories
The S1068 is designed exclusively for use with the Atmos D80P pellet boiler. It is not compatible with other boiler models or ash removal systems. No additional accessories are required for standard installation, but installers should ensure that the boiler is equipped with the correct ash discharge mechanism. Related products are not available for this model.Technical background for designers
The S1068 operates by collecting ash from the boiler’s combustion chamber and transferring it to a storage container via a screw conveyor. The system is constructed from durable materials suitable for handling fine ash and particulate matter. The screw mechanism is driven by the boiler’s internal system, ensuring continuous operation without the need for external power. The efficiency of the system depends on the correct alignment of the screw and the volume of ash generated by the boiler. Long-term performance is influenced by regular maintenance and the quality of the boiler’s combustion process.Service and operation
The system requires periodic inspection to ensure that the screw is functioning correctly and that the ash storage container is not overfilled. Installers should check for signs of wear or blockage in the screw mechanism and ensure that the system is properly aligned with the boiler’s discharge point. No specific service intervals are provided, but regular maintenance is recommended to maintain system performance.Frequently asked questions
Can the S1068 be used with other Atmos pellet boiler models?
No, the S1068 is specifically designed for the D80P model and is not compatible with other boiler types.
What is the maximum ash volume the system can handle?
The system has a total capacity of 68 L, which is sufficient for the ash output of the D80P boiler under normal operating conditions.
Is the system compatible with screw diameters other than 80 mm?
No, the system is designed for a screw diameter of 80 mm and will not function correctly with other sizes.
Can the system be installed separately from the boiler?
No, the S1068 must be installed as part of the D80P boiler setup and is not a standalone unit.
Additional parameters
| Category: | Automatic ash removal |
|---|---|
| Warranty: | 2 years |
| Weight: | 26.575 kg |
