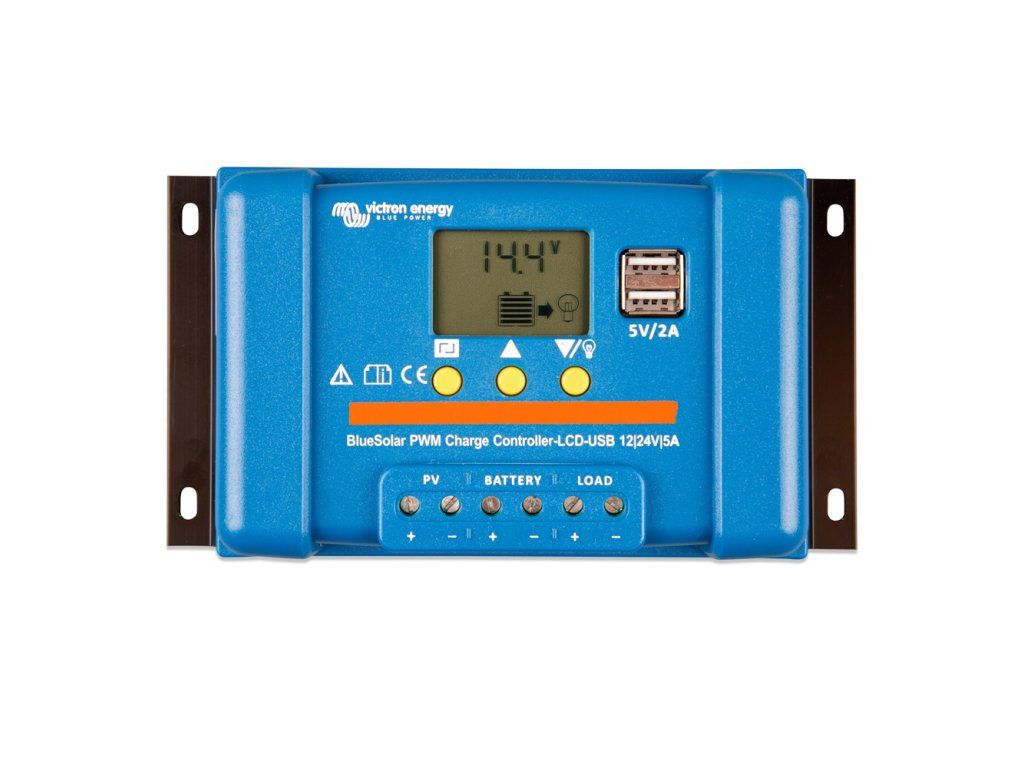

PWM solar controller Victron Energy BlueSolar-LCD&USB 5A

Product detailed description

PWM solar controller with integrated LCD and USB 5A 12V/24V. Suitable for small panels up to 60Wp. Its design is intended for small island solar systems. To charge a 12V battery the solar panel must have 36 cells, or to charge a 24V battery the panel must have 72 cells and a maximum current of up to 5A. - With a 12V battery, a maximum panel of up to 60Wp can be connected. - For a 24V battery, a maximum panel of up to 120Wp can be connected (two 60Wp panels connected in series). The advantage is very simple and easy installation and reliable operation. Built-in clear LCD display for status monitoring and parameter setting. DC power supply for appliances Over-discharge of the battery can be prevented by connecting all DC loads to the DC output of the controller (terminal on the right). The DC output disconnects the load when the battery is discharged to the preset voltage. It automatically reconnects the load when the battery is at least partially recharged. Connection and disconnection voltages are adjustable. Warning: Do not connect a voltage converter to the DC output - connect it directly to the battery. Programmable battery charging algorithm - Pre-programmed algorithms for AGM, GEL, liquid or LiFePO4 lead acid batteries (internal BMS batteries only) Two 5 volt USB outputs - You can easily use the USB output to charge your mobile phone, etc. - Maximum current (both outputs combined): 2A Easy installation: 1. Connect the battery - plus and minus. 2. Connect the solar array - plus and minus. 3. Connect the load - plus and minus. When uninstalling, the reverse order applies. Failure to follow this order can damage the BlueSolar PWM charge controller! 1. Make sure the battery is charged before the first installation. 2. The cable to the battery should be as short as possible to minimize losses. 3. The regulator is only suitable for lead acid and LiFePO4 batteries. 4. The charge controller is only suitable for regulating solar panels. Never connect another charging source to the solar regulator.
