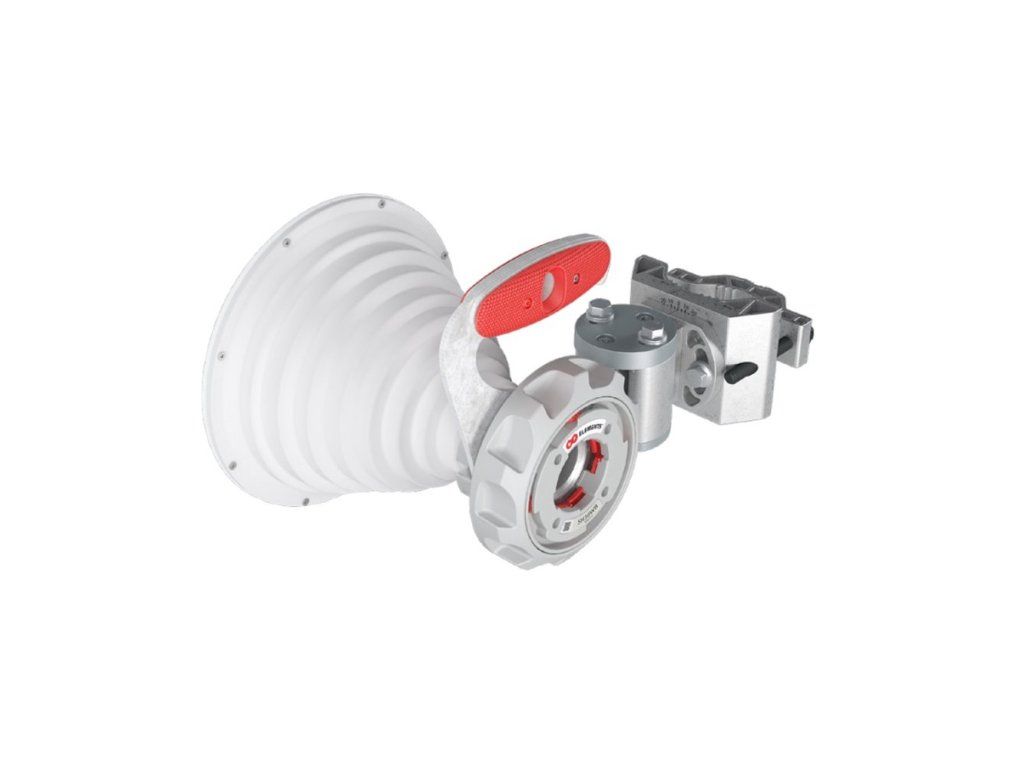

RF elements Horn sector antenna with TwistPort, 5/6GHz, 18 dBi, 30°

Product detailed description

RF elements Horn sector antenna with TwistPort, 5/6GHz, 18 dBi, 30° 30° Horn antennas have a symmetrical beam pattern. They offer excellent interference suppression and the highest possible scalability. They are ideal for locations where there are many APs that are very close together. Key Features Suitable for 5 & 6 GHz unlicensed band TwistPort™ connector. Connect directly or use TPA with coaxial connectors High-end design with innovative materials - Constructed of high quality aluminum for extreme outdoor durability including saltwater environments - Aluminum construction for reduced weight - Compact shape for better wind efficiency - Stainless steel UBR mounting bracket with coated finish - Superior ergonomics with integrated handle for easy attachment Technical parameters Wireless features - MIMO, SISO: 2 x 2 - Polarization: VH - Forward Backscatter Ratio [dB]: 30 - Wireless frequencies: 5 GHz, 6 GHz - Elevation angle (-6dB) [°]: 30 - Beam angle in azimuth plane (-6dB) [°]: 30 - Antenna type: Sector antenna - Antenna gain [dBi]: 18 Physical characteristics - Designed for mast diameter [mm]: 40 to 80 - Wind resistance [km/h]: 160 - Degree of protection: IP65 - Application: outdoor - Material: Aluminium, UV stable ABS plastic, Stainless steel - Operating temperature [°C]: -35 to 60 - Weight [kg]: 2.3 - Width [mm]: 216 - Height [mm]: 239 - Depth [mm]: 246
