RF elements TPA-R5ac TwistPort Adapter for Rocket AC Lite

Product detailed description

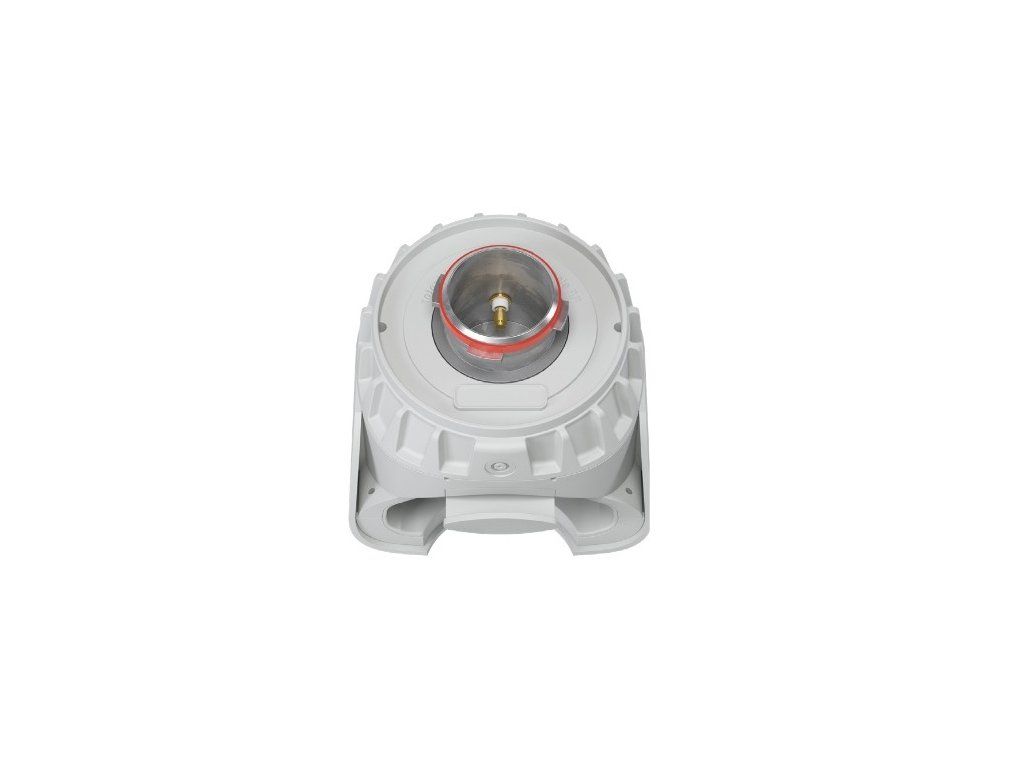

The TwistPort adapter for the Ubiquiti Networks Rocket 5AC-Lite is used to connect all TwistPort antennas. The TwistPort adapters feature a new quick-locking system from RF elements. Connecting and disconnecting the Rocket unit to/from the TwistPort adapter is very simple and requires no tools. Integration into the TwistPort ecosystem ensures very low RF loss, scalability, simple deployment and easy maintenance. The TwistPort connector is virtually lossless and changes all established standards due to its ease of handling. There are no RF connectors or RF cables that cause significant signal loss. Compared to commonly used coaxial cables and connectors, the loss on the TwistPort is almost unmeasurable. Thus, we can say that the TwistPort is virtually lossless. Connecting and disconnecting is ingeniously simple and can be done with one hand. The TwistPort is the key element for unlimited possibilities in connecting different types of antennas with the TwistPort connector. You can choose from directional parabolic and sector antennas from 30 to 90°. Technical parameters Wireless features MIMO, SISO: 2 x 2 Polarization: VH VSWR: < 1.8 Wireless Frequency: 5 GHz Physical characteristics Application: Outdoor Material: Aluminum, UV stable ABS plastic Operating temperature [°C]: -40 to 60 Weight [kg]: 0.5 Depth [mm]: 112 Width [mm]: 112 Height [mm]: 130 Connectors and interfaces Rocket kit: Yes RF connectors: TwistPort
