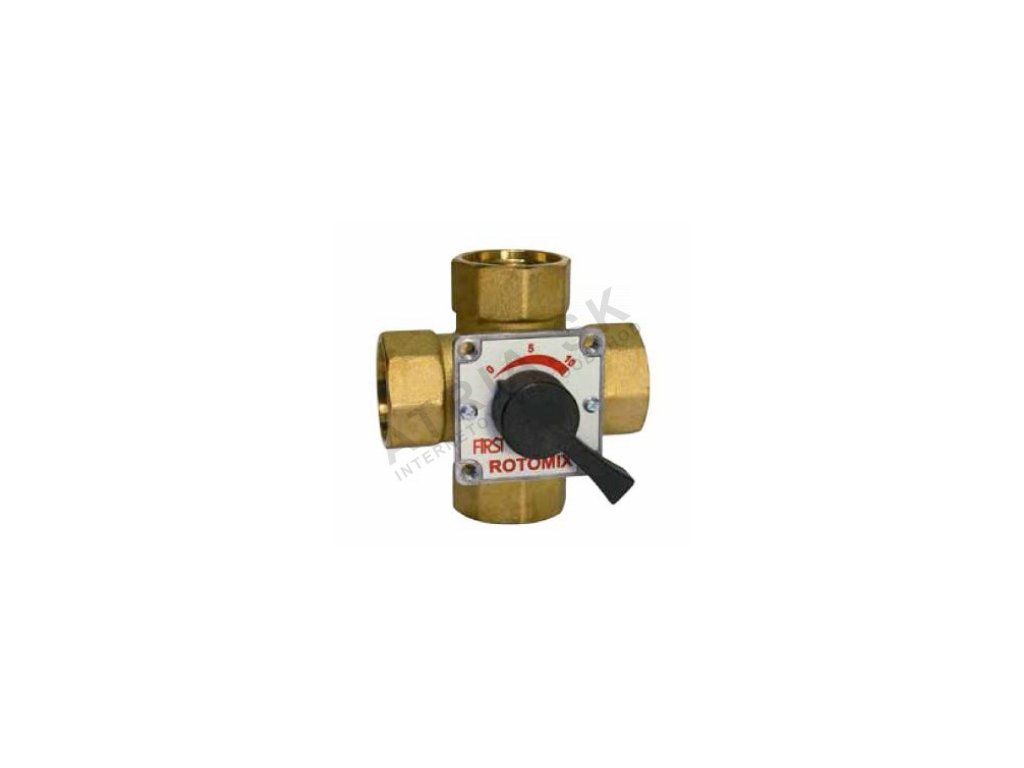

ROTOMIX F4 5/4" kvs=10,6

Product detailed description

This four-way mixing valve is commonly used in hydronic heating systems, including underfloor heating, fan coil units and hot water preparation circuits. Installers typically integrate it into systems requiring controlled blending of hot and cold media to maintain desired temperatures. It is suitable for use in commercial and residential buildings where accurate flow management is required. The valve enables proportional mixing of two media streams and is often used in conjunction with actuators and thermostats for automated control.

The design supports balanced flow distribution and is suitable for both closed and open-loop systems. It is important to ensure correct orientation during installation and to verify that the system pressure and flow requirements align with the valve’s specifications. The valve is intended for use with compatible actuators and control systems to achieve optimal performance.

Technical parameters

Installation and connection

Installation requires precise alignment of the valve in the piping system. The valve is typically connected using threaded connections, and the orientation must match the flow direction indicated on the body. Before tightening, all connections should be cleaned and sealed with appropriate sealing compound or tape. A common mistake is incorrect threading direction or failure to align the valve with the actuator. It is also important to isolate the valve from the system during installation and to perform a pressure test after completion to detect leaks.

Compatibility and accessories

The ROTOMIX F4 5/4 kvs=10.6 is designed to work with standard servomotors and actuators compatible with four-way mixing valves. To complete the system, additional components such as temperature sensors, controllers and balancing tools may be required. Ensure that the selected actuator matches the valve’s torque requirements and stroke length. No specific alternative products are listed for this model.

Technical background for designers

The operating principle of the four-way mixing valve involves the controlled blending of two input flows into a single output. The brass CW617N construction provides good resistance to corrosion and wear, making it suitable for long-term use in water-based systems. The valve integrates into a system via mechanical or electric actuators, which modulate the position of the internal valve plug. System efficiency depends on the correct selection of the kvs value and the actuator response time. Long-term performance is influenced by the quality of the media and the absence of particulate matter in the flow.

Service and operation

Periodic inspection of the valve is recommended to ensure smooth operation and to check for signs of wear or leakage. The seating surfaces and sealing elements should be inspected for damage, and the actuator linkage should be checked for proper alignment. If the valve shows signs of reduced flow or erratic movement, it may require disassembly and cleaning. No specific service intervals are provided in the brief.

Frequently asked questions

Can the ROTOMIX F4 5/4 kvs=10.6 be used with electric actuators?
Yes, it can be connected to electric actuators provided they meet the torque and stroke requirements of the valve.

What is the significance of the kvs value in this valve?
The kvs value indicates the maximum flow capacity of the valve under standard conditions and is used for sizing purposes.

Is this valve suitable for high-pressure systems?
The valve is suitable for standard pressure conditions in hydronic systems. For high-pressure applications, consult the manufacturer's technical data sheet.

What should be checked during installation?
Ensure the valve is aligned correctly, the connections are clean and sealed, and the actuator is properly mounted and calibrated.
