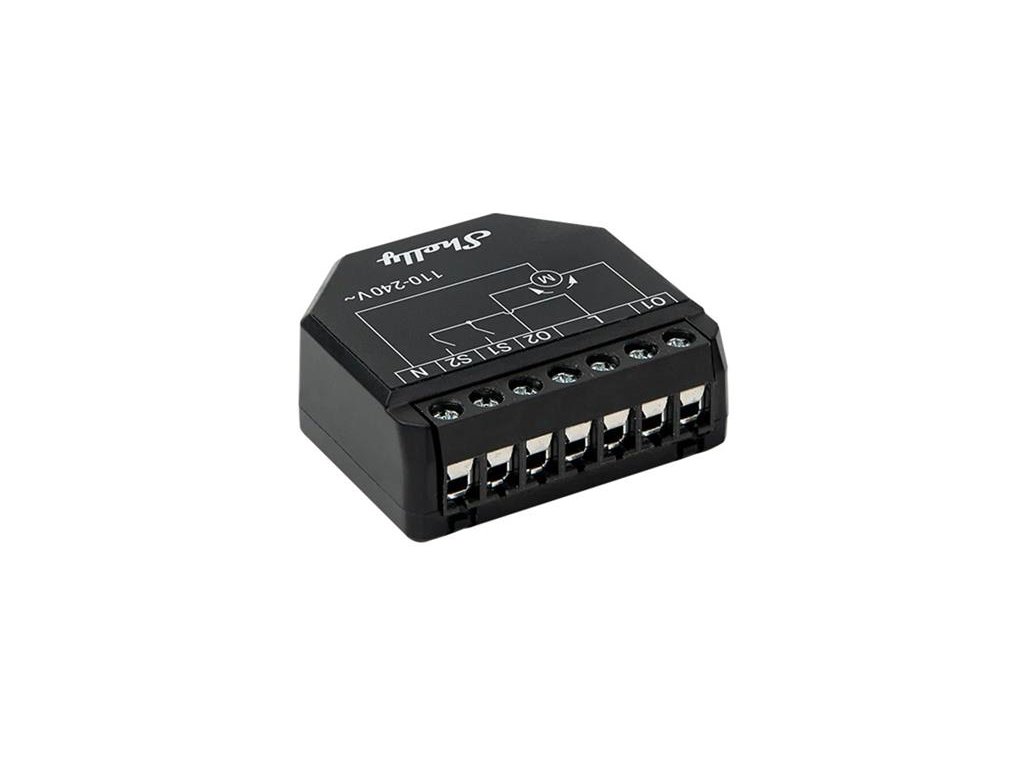

SHELLY Shutter WiFi smart controller for blinds and roller blinds

Product detailed description

The Shelly Shutter Controller is a compact smart home solution that can be easily installed in a standard electrical box - behind a switch or button. In addition to the convenient control of the shutters, you also get an energy metering function that allows you to monitor and optimise the operation of the appliances in your home. The Shelly Shutter thus combines comfort, economy and modern design without extensive installation changes.

Full control and intelligence at your fingertips
The controller allows you to remotely manage your blinds, shutters, awnings or other shades from your smartphone, tablet, computer or home automation system - both locally via Wi-Fi and remotely via the cloud. You can also set operating schedules tailored to sunrise and sunset and create smart scenarios within Smart Scenes. As a result, Shelly blinds can work with other Shelly devices to create comprehensive whole-home automation that improves everyday life and saves energy.

Advanced features
Shelly Shutter roller blinds have a built-in energy metering module so you can monitor how much electricity your roller blinds are consuming and gain an understanding of energy efficiency. Depending on your needs, you can control not only the up/down movement, but also the angle of the louvre slats - all within one device.

Easy installation and integration
The control is discreetly located just behind the switch, allowing you to maintain the aesthetics of the interior with minimal modifications to the electrical system. Shelly Shutter works over both Wi-Fi and Bluetooth (short range technology for wireless communication) and supports integration with Amazon Alexa, Google Smart Home, Samsung SmartThings, KNX (Konnex, the standard for building automation) via IP (Internet Protocol, the communication protocol of the Internet Protocol), and also with various automation systems via HTTP (Application Programming Interface), MQTT (Message Queuing Telemetre Transport, a lightweight communication protocol), webhooks and UDP (User Datagram Protocol).

Reliable and flexible operation
The device operates with an AC voltage of 110-240 V at very low power consumption (< 0.3 W) and is equipped with overload and overheating protection - a guarantee of durable and safe operation. The control unit has a built-in web interface and the ability to update the software "over-the-air" (remotely via the Internet), which facilitates configuration and maintenance at the highest level.

Technical parameters:

Dimensions (H × W × D): 37 × 42 × 16 ±0.5 mm
Weight: 30 g
Maximum tightening torque of screw clamps: 0.4 Nm
Cable cross section: 0.2 to 2.5 mm² (solid, wire and crimp sleeves)
Wire stripping length: 6 to 7 mm
Installation: installation box
Housing material: plastic
Case colour: Black
Clamp colour: Black
Ambient operating temperature: -20 °C to 40 °C
Humidity: 30% to 70% relative humidity
Maximum altitude: 2000 m
Power supply: 110-240 VAC 50/60 Hz
Power consumption: < 1.4 W
External protection: tripping characteristic B or C, max. rated current 16 A, minimum tripping capability 6 kA, energy limiting class 3
Maximum switching voltage: 240 V~
Maximum AC switching current: 4 A for power factor compensated motors (inductive loads)
Supported Motor Type:AC Single Phase Motors
Required limit switches: electronic or mechanical
Sensors and measurement
Voltmeter (AC): Yes
Ammeter (AC): Yes
Internal temperature sensor: yes
Wi-Fi protocol: 802.11 b/g/n
Radio bandwidth (Wi-Fi): 2412 - 2472 MHz
Maximum RF power (Wi-Fi): < 20 dBm
Wi-Fi range: Up to 30 m indoors/ Up to 50 m outdoors (depending on local conditions)
Bluetooth protocol: 4.2
Radio bandwidth (Bluetooth): 2402 - 2480 MHz
Maximum RF power (Bluetooth): < 4 dBm
Bluetooth range: up to 10 m indoors/up to 30 m outdoors (depending on local conditions)

Contents of the package:

Control unit
Installation/configuration instructions
Set of mounting elements
