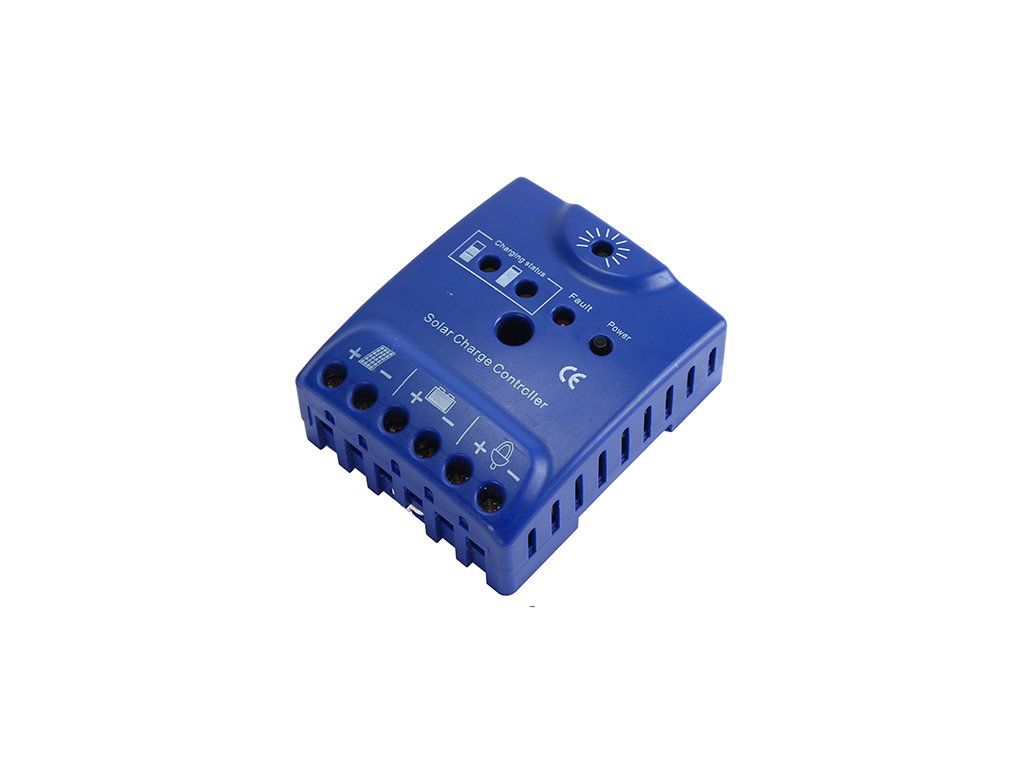

Solar controller CARSPA CD12/24-10, self-detection 12V/10A or 24V/10A

Product detailed description

Solar controller for solar photovoltaic panels 12V up to 120W. Simply connect the solar panel and battery to the controller and you will get a stabilized voltage of 12V at the output of the controller.

Solar controller CARSPA CD12/24-12 12V/12A and 24V/12A

- Maximum charging and load current 10A (for panels up to 120W).
- When the battery voltage reaches 13.6V, the controller starts to limit the current to the battery.
- At 15V, it disconnects it completely. It also disconnects the load at Ubat10.5V

Features:
1. Clear charging status indication, easy to read
2. Maximum 16 Sq.mm connection terminals
3. Automatic reverse polarity protection for battery, solar panel and load output connections.
4. Fully electronic protection: against short circuit, reverse polarity and overload.
5. Remaining battery capacity based on the protection model and battery voltage based on the protection model
6. Optional charging model (gel battery and sealed battery)
7. Anti-backflow block
8. Automatic recovery after protection is initialized
9. Both wall and rail mountable
10. Automatic temperature compensation
11. 3 LED display: 2x different charge:> 75%, 90%,    1x Error
12.12V/24V auto.switch
