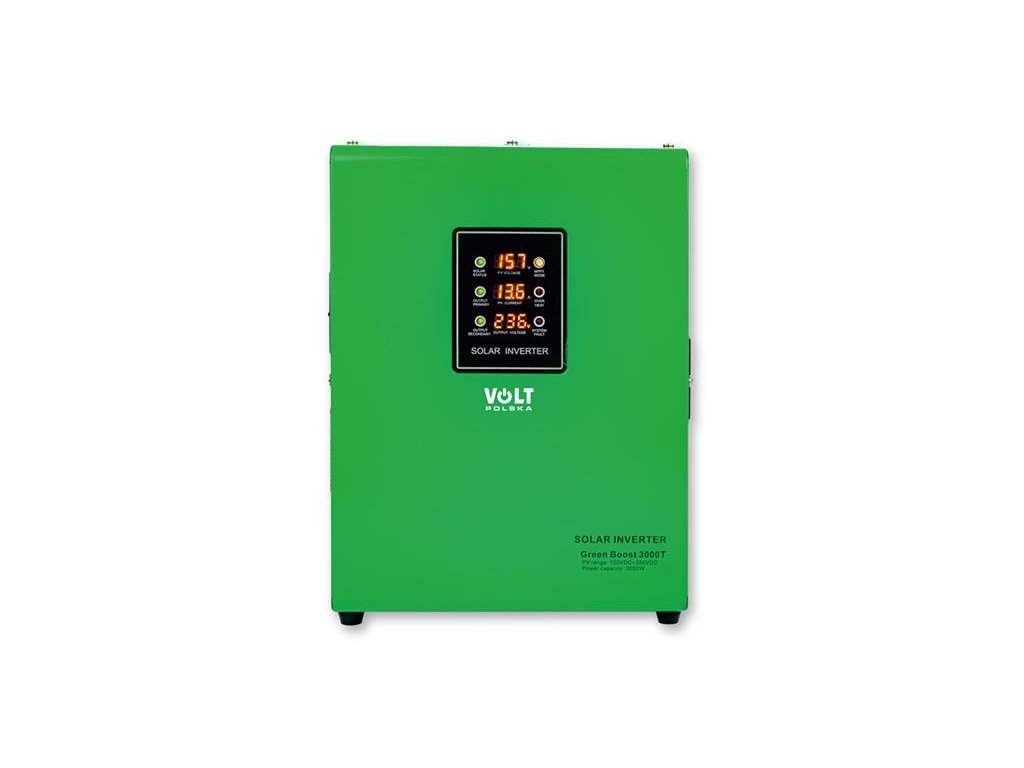

Solar controller VOLT Green Boost 3000 TERMINAL for water heating

Product detailed description

Solar converter for water heating, boiler GREEN BOOST MPPT-3000T is used to power heating devices directly from solar PV panels.

The system is very simple and functional. It needs 4 to 9 PV panels (250W - 400W), which will be connected classically in series and their total voltage will be in the range of 120 V to 350 V.

Unlike the standard model, this device is equipped with a terminal block instead of the classic sockets.

What device powers the GREEN BOOST MPPT solar converter?
- Electric boilers
- Radiators
- Electric heaters
- Electric mats
- Underfloor heating

Technical parameters:

- Maximum power: 3000W
- Tension panel range: 120VDC~350VDC
- Output voltage range: 120 - 245VAC/50Hz
- Maximum proud given to the device from solar panels: 14A
- Output voltage type: modified sine wave
Output voltage frequency: 50 Hz
- Power supply (input) type: MC4 (female-to-male)
- Input connector: 2pcs
- Overload/Short-circuit/Surge protection: yes
- Overheating protection: 100 °C
- Operating temperature: -25°C ÷ 55°C
- Efficiency: >94%
- Cooling: active
- Security level: IP21
- Dimensions: 311 x 232 x 140 mm
- Weight: 3.3 kg
